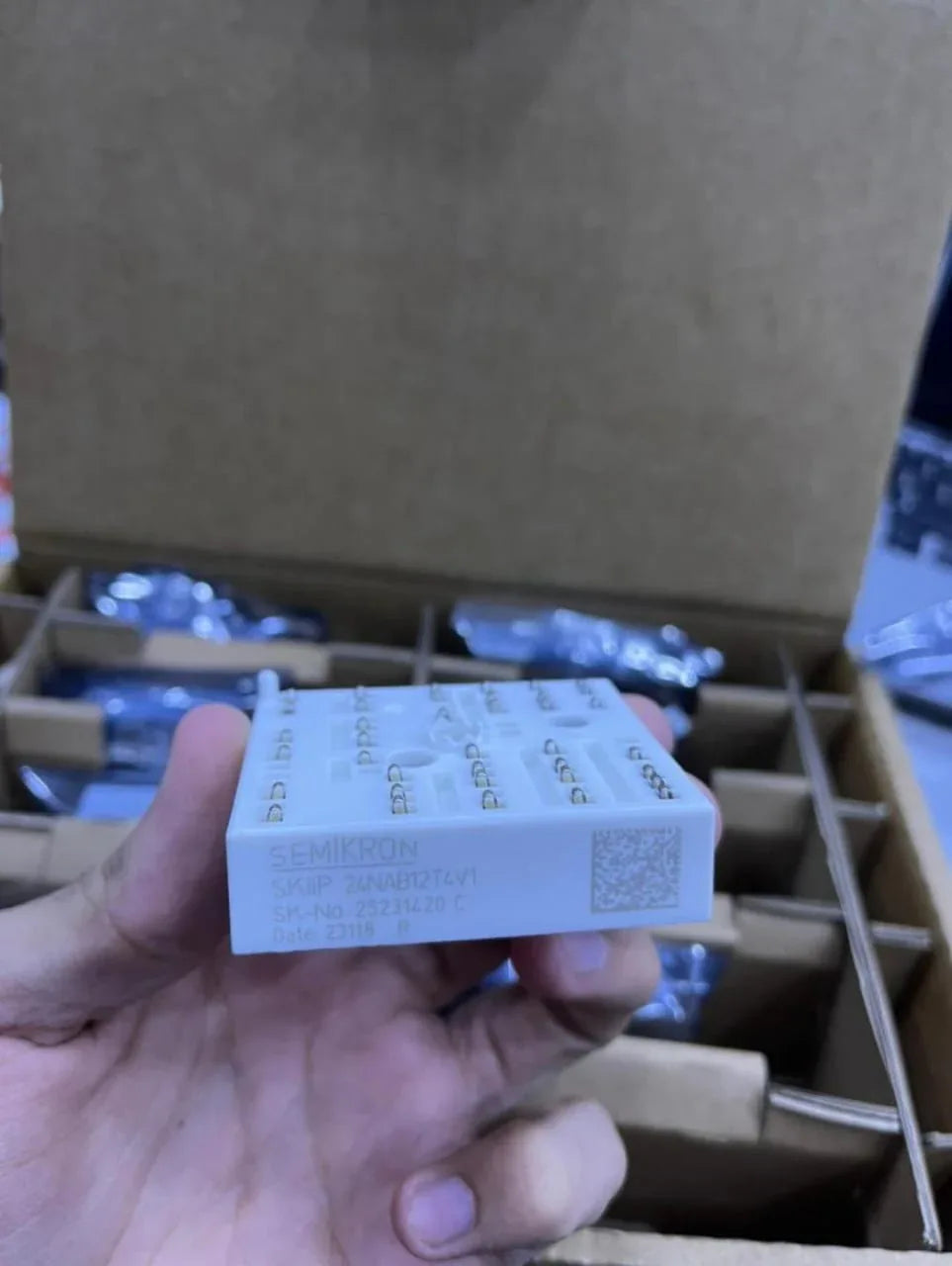

Semikron SKIIP 24NAB12T4V1 1200V 35A IGBT Module
Regular price
Rs.19,000.00
Sale price
Rs.20,000.00
SKIIP 24NAB12T4V1
The SKIIP 24NAB12T4V1 is an intelligent IGBT power module from Semikron/Danfoss, built for modern power electronics systems. Based on the MiniSKiiP® 2 platform with Trench 4 IGBT technology, this module offers high efficiency, robustness, and stable thermal performance in a compact design. With a nominal 1200 V voltage rating and 35 A continuous collector current, it supports reliable energy conversion for inverter and motor drive applications up to approximately 22 kVA. It includes CAL freewheeling diodes and spring contact connections, reducing losses and ensuring stable long-term operation.
In industrial and commercial applications, the SKIIP 24NAB12T4V1 provides high efficiency and durability. Its integrated Converter‑Inverter‑Brake (CIB) design combines the input rectifier, three‑phase inverter, and braking stage into a single module, reducing board space and component count while maintaining reliability. It operates effectively within a junction temperature range of –40 °C to +150 °C, making it suitable for variable frequency drives (VFDs), robotics, renewable energy inverters, UPS systems, and industrial automation equipment.
The module balances current handling and switching/conduction performance, supporting energy-efficient power systems in commercial and industrial sectors. It can be used in motor control, power supplies, or high-performance drives.
Key Specs
| Parameter | Specification |
|---|---|
| Part Number | SKIIP 24NAB12T4V1 |
| Manufacturer | Semikron / Semikron-Danfoss |
| Technology | Trench 4 IGBT with CAL diodes |
| Topology | Converter‑Inverter‑Brake (CIB) |
| Voltage Rating | 1200 V |
| Continuous Collector Current | 35 A |
| Typical Motor Power | up to ~11 kW |
| Max Inverter Power | ~22 kVA |
| Contact Technology | Spring contacts |
| Operating Temperature (Recommended) | –40 °C to +150 °C |
| Package / Series | MiniSKiiP® 2 |
| Dimensions (L × W × H) | 59 × 52 × 16 mm |
| UL Recognition | File no. E63532 |
| Typical Applications | VFDs, motor drives, UPS, renewable inverters |
