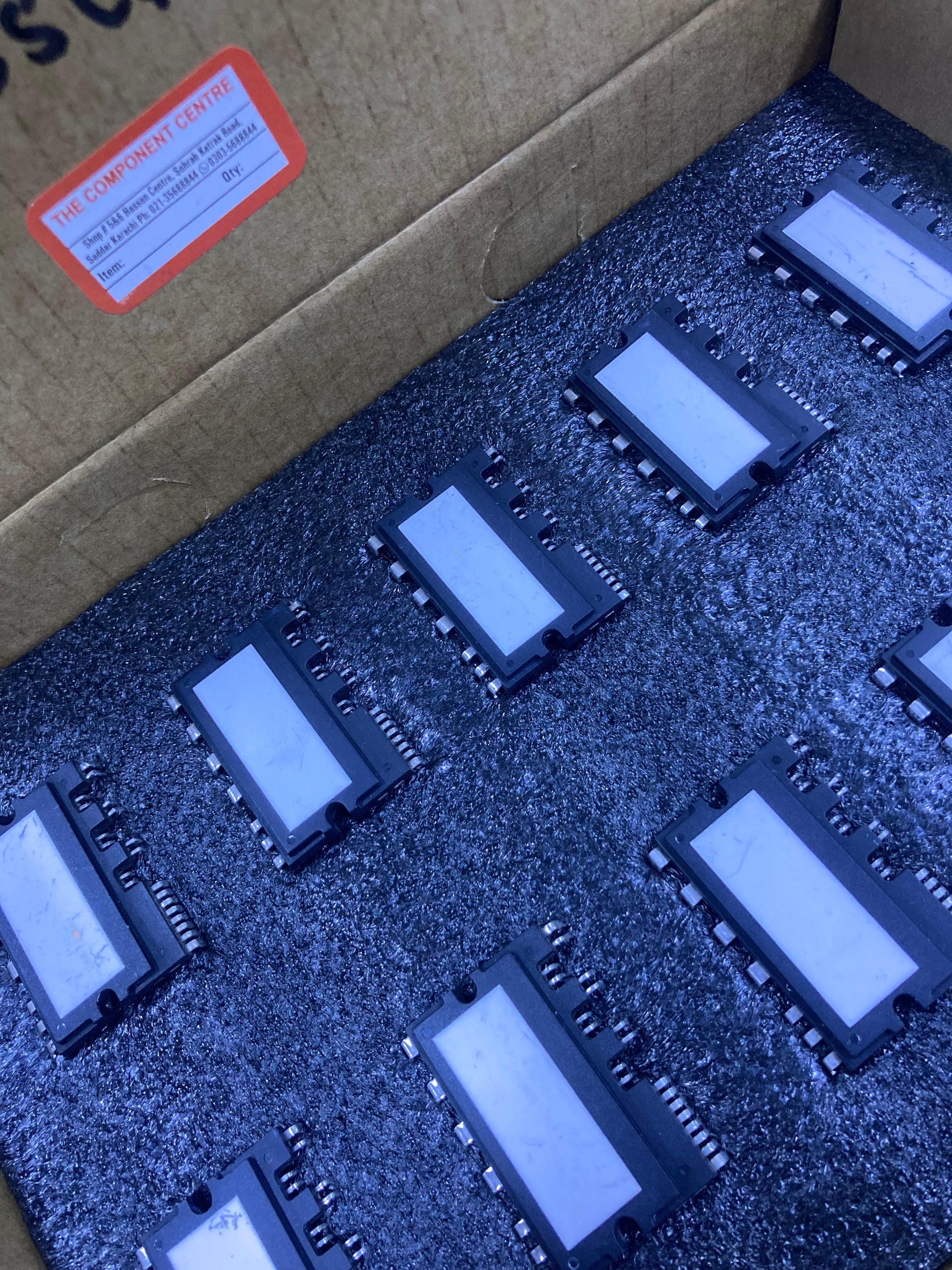

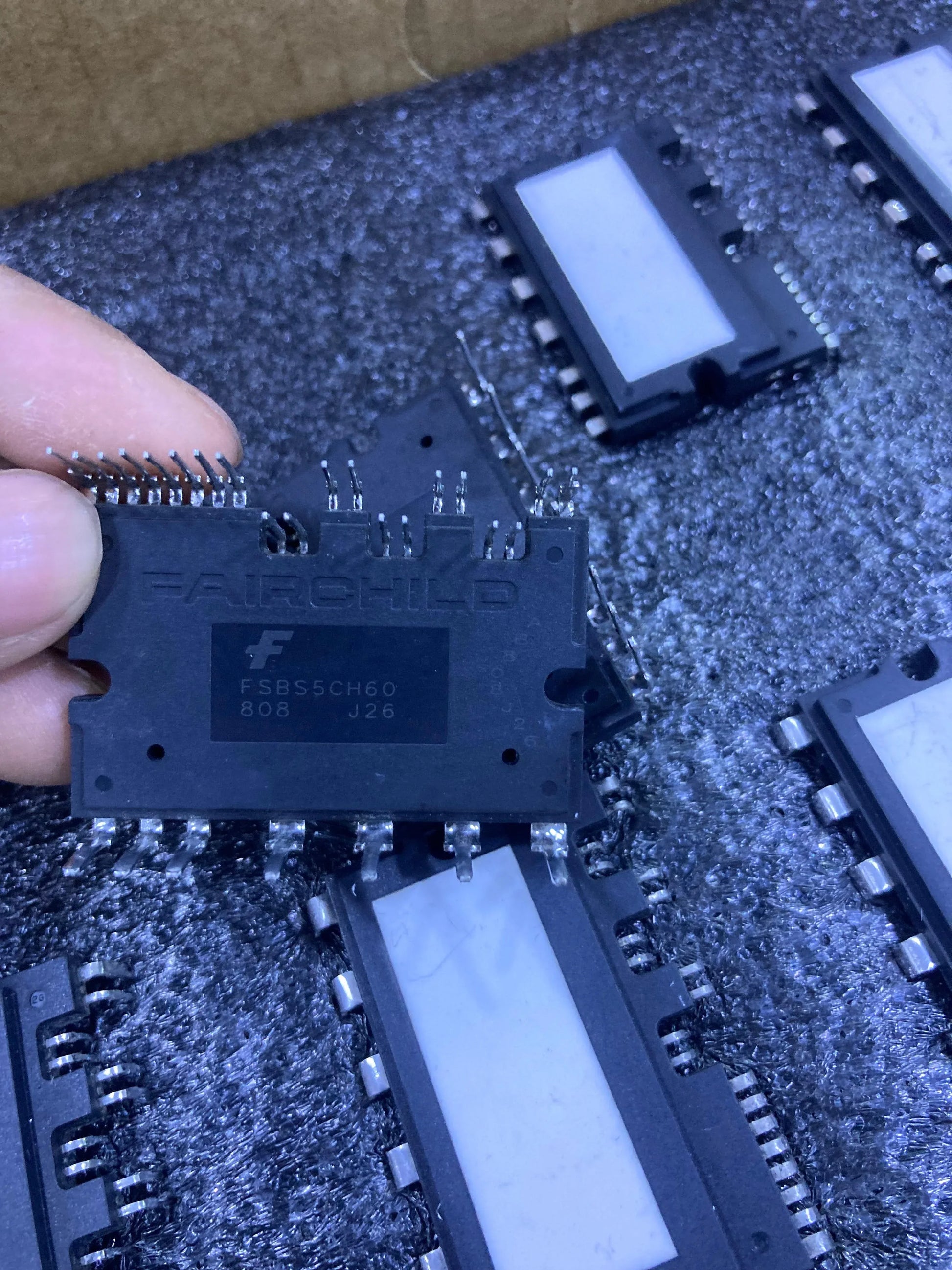

Onsemi FSBS5CH60 600V 5A Intelligent Power Module
Regular price
Rs.3,000.00
Sale price
Rs.3,300.00
Onsemi FSBS5CH60
The ON Semiconductor FSBS5CH60 is a high-performance Intelligent Power Module (IPM) designed for reliable operation in modern power electronics. With a 600 V, 5 A IGBT configuration, it is suited for three-phase motor control applications in industrial and commercial systems. This module integrates gate driving and protection circuitry, supporting AC induction drives, BLDC and PMSM motor controllers, and automated equipment, providing efficient and stable power conversion. For detailed specifications, refer to the official datasheet: ON Semiconductor FSBS5CH60 Datasheet.
The ON Semiconductor FSBS5CH60 uses low-loss, short-circuit-rated IGBTs on a ceramic substrate to improve thermal performance and efficiency. Its integrated high-voltage IC reduces the need for external gate drivers, and dedicated current sensing pins enable precise control, ensuring effective operation in motor speed and torque regulation. Internal protections for under-voltage and over-current enhance reliability for continuous industrial and commercial use.
Designed for durability and efficient performance, the ON Semiconductor FSBS5CH60 comes in a 27-pin PowerDIP package with through-hole mounting. It provides 2500 Vrms electrical isolation, making it suitable for demanding environments. The module’s integration simplifies PCB design while delivering consistent power management in automation, robotics, and industrial drives. For more information, consult the official datasheet: ON Semiconductor FSBS5CH60 Datasheet.
Key Specs
| Specification | Detail |
|---|---|
| Manufacturer | ON Semiconductor |
| Part Number | FSBS5CH60 |
| Module Type | Intelligent Power Module (IPM) |
| Series | Motion SPM® 3 |
| Voltage Rating | 600 V |
| Current Rating | 5 A |
| Configuration | 3‑Phase IGBT inverter |
| Isolation Voltage | 2500 Vrms |
| Package / Case | 27‑PowerDIP Module (SPM27‑BA) |
| Mounting Type | Through-Hole |
| Built-In Features | Gate Drivers & Protection ICs |
| PCB Layout Advantage | Dedicated Vs & Current Sensing Pins |
| Typical Applications | Motor Control, Automation, Robotics |
For full technical details, see the official datasheet: ON Semiconductor FSBS5CH60 Datasheet.
