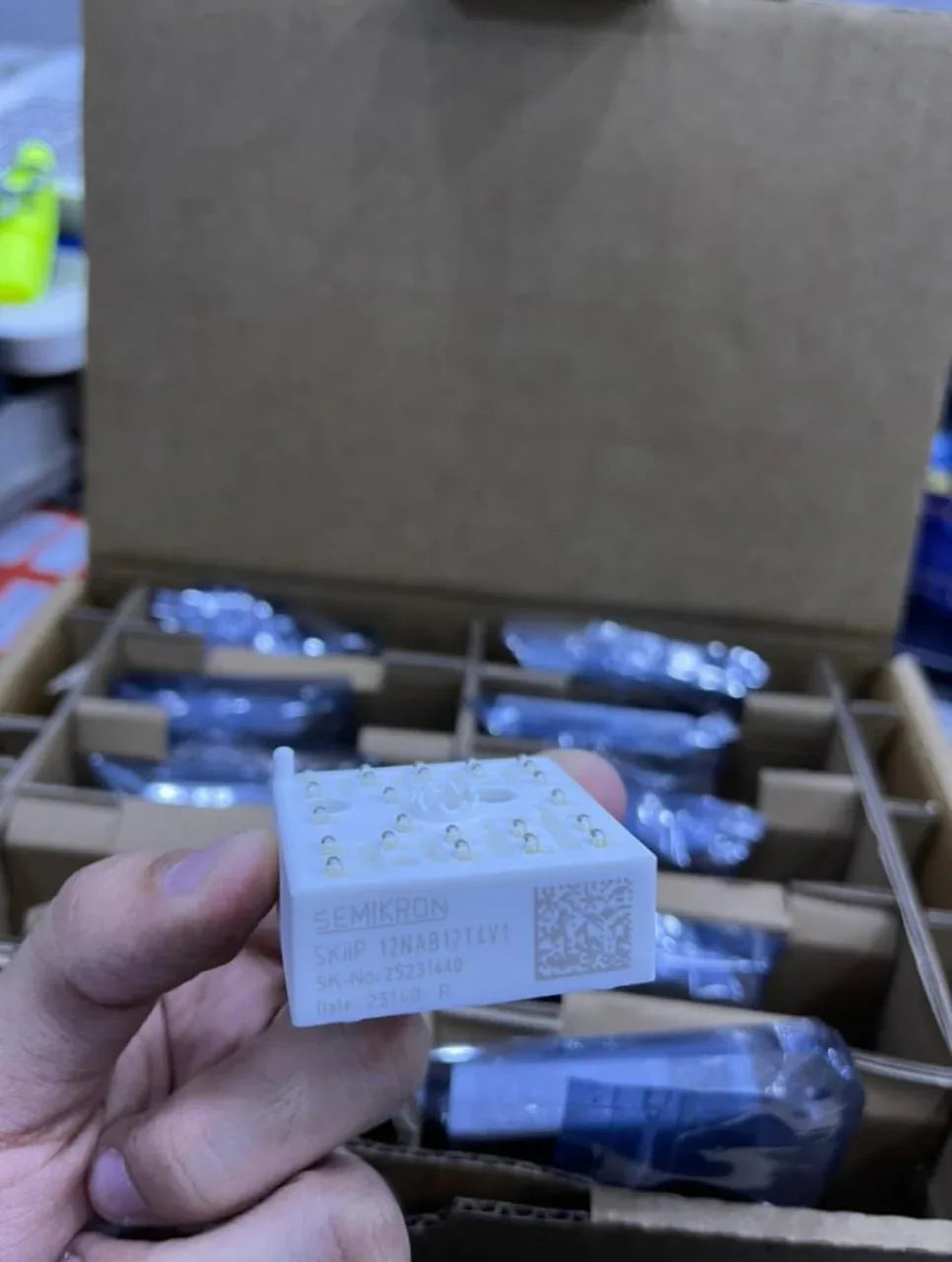

Semikron SKiiP 12NAB12T4V1
The Semikron SKiiP 12NAB12T4V1 is an advanced Converter‑Inverter‑Brake (CIB) IGBT power module engineered for high‑efficiency power conversion in demanding industrial and commercial power electronics applications. Designed with Trench 4 IGBT technology and CAL soft‑switching freewheeling diodes, this module delivers reliable switching performance and excellent thermal efficiency, reducing conductive and switching losses for optimized system operation. The SKiiP 12NAB12T4V1’s highly reliable spring contact technology ensures robust electrical connections without the need for soldered joints, significantly enhancing long‑term reliability and power cycling performance in high‑duty environments.
In industrial power systems such as Variable Frequency Drives (VFDs), motor control units, renewable energy inverters, and servo drives, the SKiiP 12NAB12T4V1 stands out for its balance of performance, compact design, and durability. Its ability to support three‑phase inverter, rectifier, and braking functions in a single integrated module simplifies system design and minimizes the component footprint, contributing to faster assembly and reduced installation complexity. Whether used in automated production lines, heavy machinery, or commercial energy systems, this module provides robust and efficient power management with consistent operational stability.
Built for industrial and commercial applications where uptime and efficiency are critical, the SKiiP 12NAB12T4V1 delivers durability across a wide operating temperature range, with a maximum case temperature of 125 °C and recommended junction operation up to 150 °C. Its compact MiniSKiiP® 1 package supports seamless integration into existing power electronic systems, enabling designers to achieve high power density without sacrificing rugged reliability. For engineers and designers seeking a dependable power module that enhances performance while reducing maintenance and lifecycle costs, the SKiiP 12NAB12T4V1 is an ideal choice.
For more detailed information, please refer to the official Semikron datasheet Download SKiiP 12NAB12T4V1 Datasheet.
Key Specs
| Specification | Value |
|---|---|
| Part Number | SKiiP 12NAB12T4V1 |
| Technology | Trench 4 IGBT, CAL freewheeling diodes |
| Module Type | Converter‑Inverter‑Brake (CIB) |
| Package | MiniSKiiP® 1 |
| Maximum Collector‑Emitter Voltage (V_CE) | 1200 V |
| Typical Continuous Collector Current | ~15–31 A (depending on conditions) |
| V_CE(sat) (Typ.) | ~1.85–2.1 V (chip level) |
| Operating Junction Temperature (Tj,op) | -40 °C to +150 °C |
| Maximum Case Temperature (Tc,max) | 125 °C |
| Contact Technology | Spring Contacts (no solder) |
| Typical Motor Power | Up to ~5.5 kW |
| Typical Inverter Rating | Up to ~12 kVA |
| UL Recognition | File No. E63532 |
| Datasheet | SKiiP 12NAB12T4V1 Datasheet (PDF) |
