Fuji Electric 7MBR35VM120‑50 1200V 35A IGBT Module
Regular price
Rs.11,000.00
Sale price
Rs.11,500.00

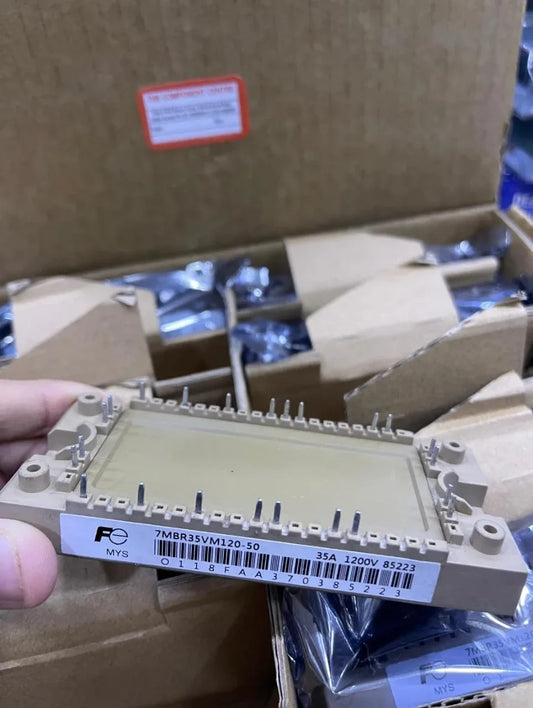

Fuji Electric 7MBR35VM120‑50 IGBT Module
The Fuji Electric 7MBR35VM120‑50 is an IGBT (Insulated Gate Bipolar Transistor) module designed for industrial and commercial power electronics applications. With a 1200 V voltage rating and 35 A current capability, it provides stable switching performance and low conduction loss. The module is suitable for motor drives, inverters, and uninterruptible power supplies (UPS), offering efficient operation and reliable thermal management. (Fuji Electric Datasheet)
This IGBT module features a low saturation voltage (VCE(sat)), reducing power dissipation during operation and improving system efficiency. It supports continuous operation at elevated junction temperatures, ensuring durability under demanding conditions. Its compact design with solder‑pin terminals allows easy integration into printed circuit boards and custom assemblies while maintaining consistent performance over time. (Fuji Electric Datasheet)
The 7MBR35VM120‑50 is suitable for a wide range of applications including AC/DC motor controllers, industrial inverters, renewable energy converters, and UPS systems. Its design ensures long service life even in harsh environments, providing dependable operation for critical industrial and commercial systems. (Fuji Electric Datasheet)
Key Specs
| Specification | Detail |
|---|---|
| Manufacturer | Fuji Electric |
| Part Number | 7MBR35VM120‑50 |
| Module Type | IGBT Power Module |
| Series | V Series (6th‑Generation) |
| Collector‑Emitter Voltage | 1200 V |
| Collector Current | 35 A |
| Saturation Voltage (VCE(sat)) | ≈ 1.85–2.15 V typical |
| Operating Junction Temp. | –40 °C to 150 °C |
| Thermal Case Temp. (Tc) | 125 °C |
| Storage Temp. | –40 °C to 125 °C |
| Package Type | M719 |
| Terminal Type | Solder pins |
| Dimensions | 45 mm (W) × 107.5 mm (L) |
| Net Mass | ~200 g |
| Compliance | RoHS / Lead‑free |
