SEMIKRON SKKR400/0.2-BVR Shunt Module
Regular price
Rs.23,000.00
Sale price
Rs.25,000.00

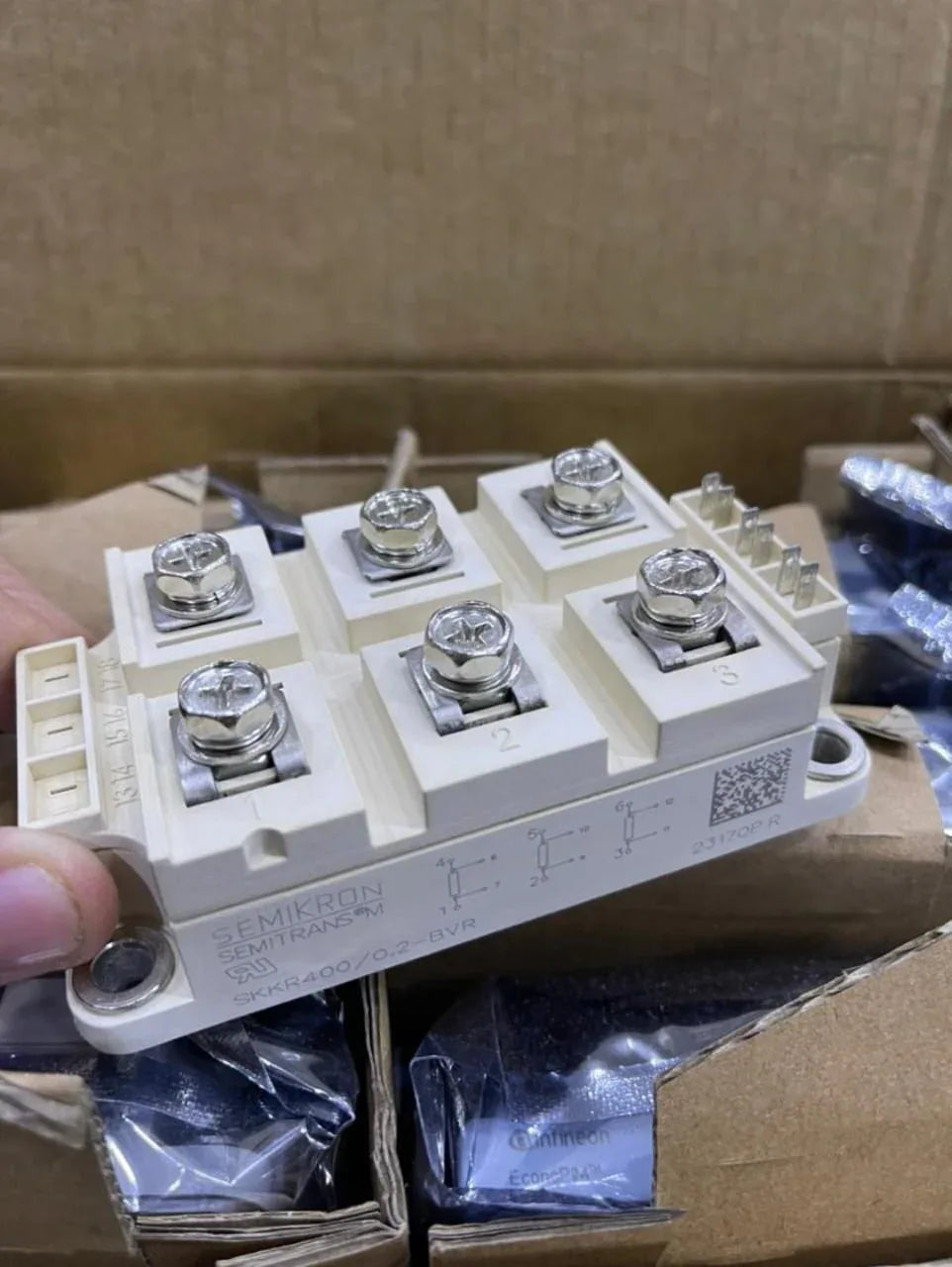

SEMIKRON SKKR400/0.2‑BVR Shunt Module
The SEMIKRON SKKR400/0.2‑BVR is a shunt module for power electronics applications. Part of the SEMITRANS 5 series, it provides 270 A continuous current, low resistance, and stable thermal performance, suitable for industrial and commercial environments. It supports current measurement in power conversion systems, frequency drives, and control applications.
The SKKR400/0.2‑BVR uses Direct Copper Bonding (DCB) technology to maintain electrical isolation and thermal transfer. It offers adequate creepage and clearance distances for high‑voltage applications and maintains stability for accurate current measurement over time.
For industrial power electronics, renewable energy systems, frequency converters, and motor drives, the SKKR400/0.2‑BVR provides low inductance and precise shunt resistance, minimizing power loss and providing accurate feedback for control systems. It is suitable for applications requiring consistent current measurement and system performance.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer | SEMIKRON |
| Part Number | SKKR400/0.2‑BVR |
| Series | SEMITRANS 5 |
| Maximum DC Current (IDCmax) | 270 A (Tc=25 °C) |
| Shunt Resistance (Rshunt) | 0.53 mΩ ±5 % |
| Isolation Voltage | 2500 V AC (1 min) |
| Thermal Resistance (Rth j‑c) | 7.0 K/W |
| Temperature Coefficient (Tcr) | 50 ppm/K |
| Operating / Storage Temp | ‑40 °C to +125 °C |
| Dimensions (L×W×H) | 106×62×31 mm |
| Technology | DCB Isolated Baseplate |
| Typical Application | Current measurement for frequency converters and power electronics |
For detailed specifications, see the SEMIKRON datasheet
