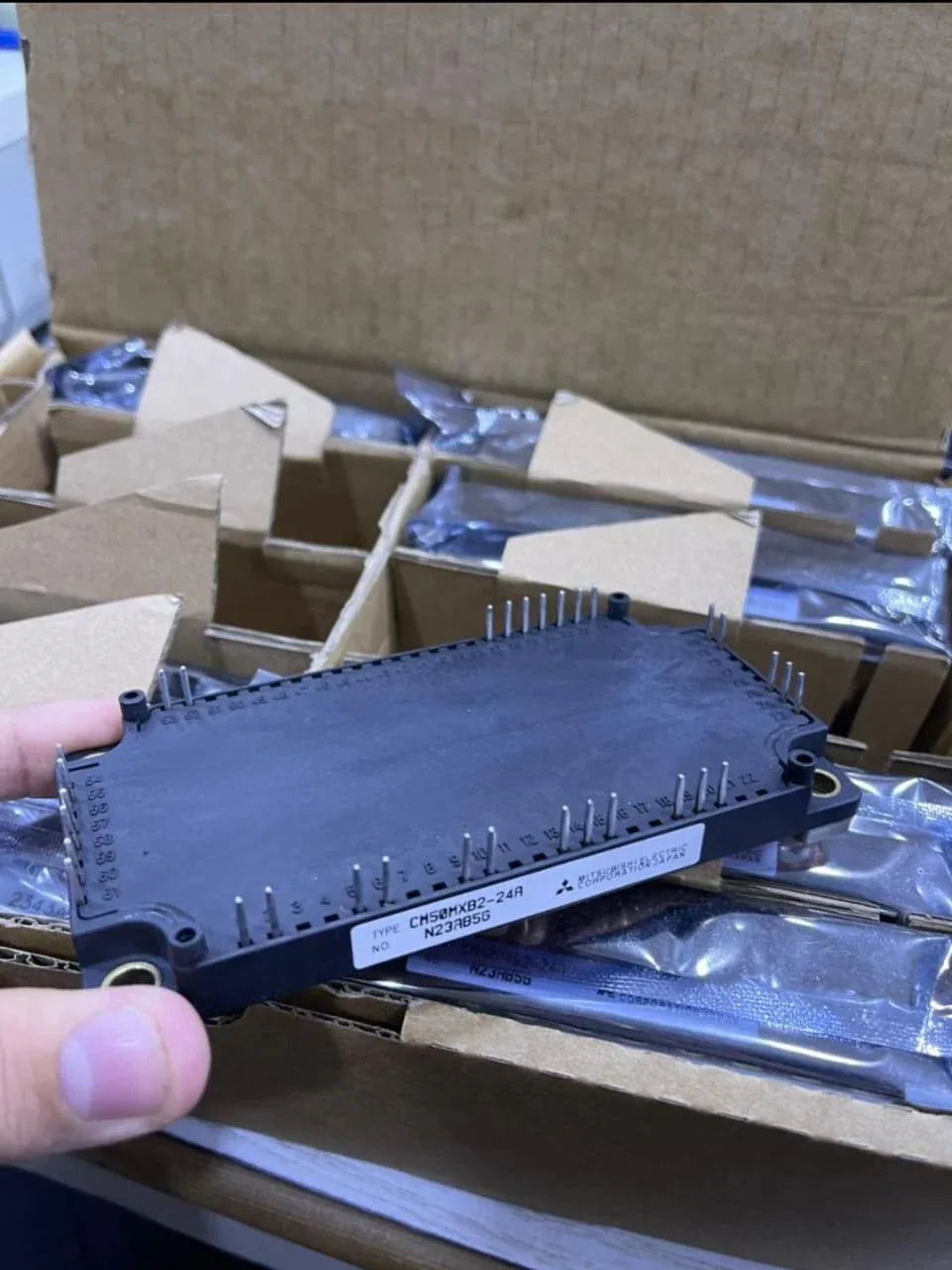

Mitsubishi CM50MXB2‑24A 1200V 50A IGBT Module
Regular price
Rs.15,000.00
Sale price
Rs.15,500.00
Mitsubishi CM50MXB2‑24A IGBT Module
Mitsubishi CM50MXB2‑24A is a reliable IGBT (Insulated Gate Bipolar Transistor) module suitable for industrial and commercial power electronics applications. It integrates multiple power stages into a single compact module, offering stable performance, efficiency, and thermal reliability. This module supports power conversion and motor control systems where consistent operation and low losses are essential. For detailed specifications, refer to the Mitsubishi datasheet.
The CM50MXB2‑24A supports 1200 V collector-emitter voltage and 50 A collector current, combining a three-phase converter, inverter, and brake chopper in one module. Its integrated design reduces wiring complexity and minimizes space requirements. Low conduction losses and effective thermal performance help maintain efficiency and extend operational life, making it suitable for continuous-load environments.
This module is appropriate for variable frequency drives, servo drives, UPS systems, HVAC controls, and renewable energy inverters. Its robust design ensures reliable performance under demanding conditions. For complete electrical parameters, pin configurations, and integration guidance, consult the Mitsubishi datasheet.
Key Specs
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Part Number | CM50MXB2‑24A |
| Module Type | IGBT Power Module (7‑in‑1: 3‑phase converter, inverter & brake) |
| Collector‑Emitter Voltage (VCES) | 1200 V |
| Rated Collector Current (IC) | 50 A |
| VCE(sat) (max at IC=50 A) | ~2.7 V |
| Integrated Free‑wheeling Diodes | Yes |
| Operating Junction Temp. | –40 °C to +150 °C |
| Isolation Voltage | ~2500 V AC, 1 min |
| Package Type | Industrial Power Module |
| Compliance | RoHS Compliant |
| Typical Applications | Motor drives, inverters, UPS, power converters |
For more detailed information, consult the Mitsubishi CM50MXB2‑24A datasheet.
