Littelfuse MCMA240UI1600ED 1600V 240A SCR Module
Regular price
Rs.21,500.00
Sale price
Rs.22,500.00

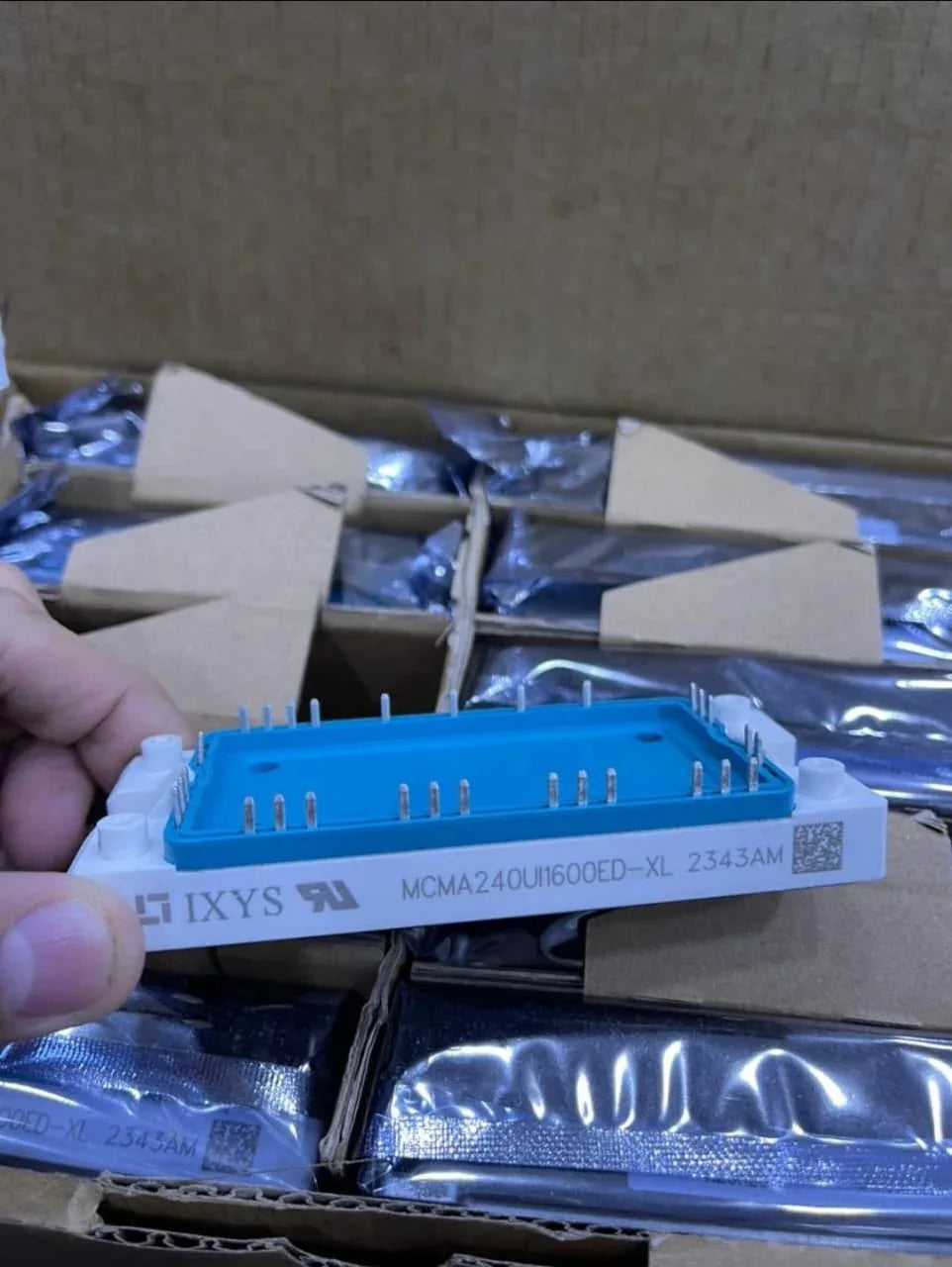

Littelfuse MCMA240UI1600ED SCR Module
Littelfuse MCMA240UI1600ED is a thyristor (SCR) power module developed for controlled rectification in industrial and commercial power electronics systems. The module is housed in an E2-Pack chassis-mount package, enabling secure mechanical installation and effective thermal coupling to external heat sinks. It is commonly applied in three-phase controlled rectifiers, DC motor drives, braking circuits, and high-power conversion equipment where stable current control is required.
Littelfuse MCMA240UI1600ED is rated for a repetitive off-state voltage of 1600 V and an average on-state current of 240 A, supporting operation in high-voltage and high-current environments. The SCR configuration allows controlled conduction with predictable switching behavior, while the low on-state voltage drop helps limit conduction losses during continuous operation. These electrical characteristics support integration into industrial systems that require consistent voltage blocking and current handling performance.
Littelfuse MCMA240UI1600ED is specified for an operating temperature range from –40 °C to +125 °C, allowing use in thermally demanding industrial installations. The module is designed for long-term operation when installed with appropriate cooling and protection circuitry. Typical applications include AC/DC converters, controlled rectifier bridges, industrial motor control systems, and power regulation equipment used in commercial and industrial power infrastructure.
Key Specifications
| Parameter | Value |
|---|---|
| Part Number | MCMA240UI1600ED |
| Brand / Manufacturer | Littelfuse (IXYS) |
| Device Type | SCR (Thyristor) Power Module |
| Circuit Configuration | Three-Phase Controlled Bridge |
| Repetitive Off-State Voltage (VDRM) | 1600 V |
| Average On-State Current (IDAV) | 240 A |
| RMS On-State Current (ITRMS) | 200 A |
| Non-Repetitive Surge Current (ITSM) | 1500 A |
| Gate Trigger Voltage (VGT) | 1.5 V (typical) |
| Gate Trigger Current (IGT) | 95 mA (typical) |
| Holding Current (IH) | 200 mA |
| Operating Temperature Range | –40 °C to +125 °C |
| Package Type | E2-Pack, Chassis Mount |
| Compliance | RoHS Compliant |
| Typical Applications | Controlled Rectifiers, Motor Drives, Industrial Power Supplies |
