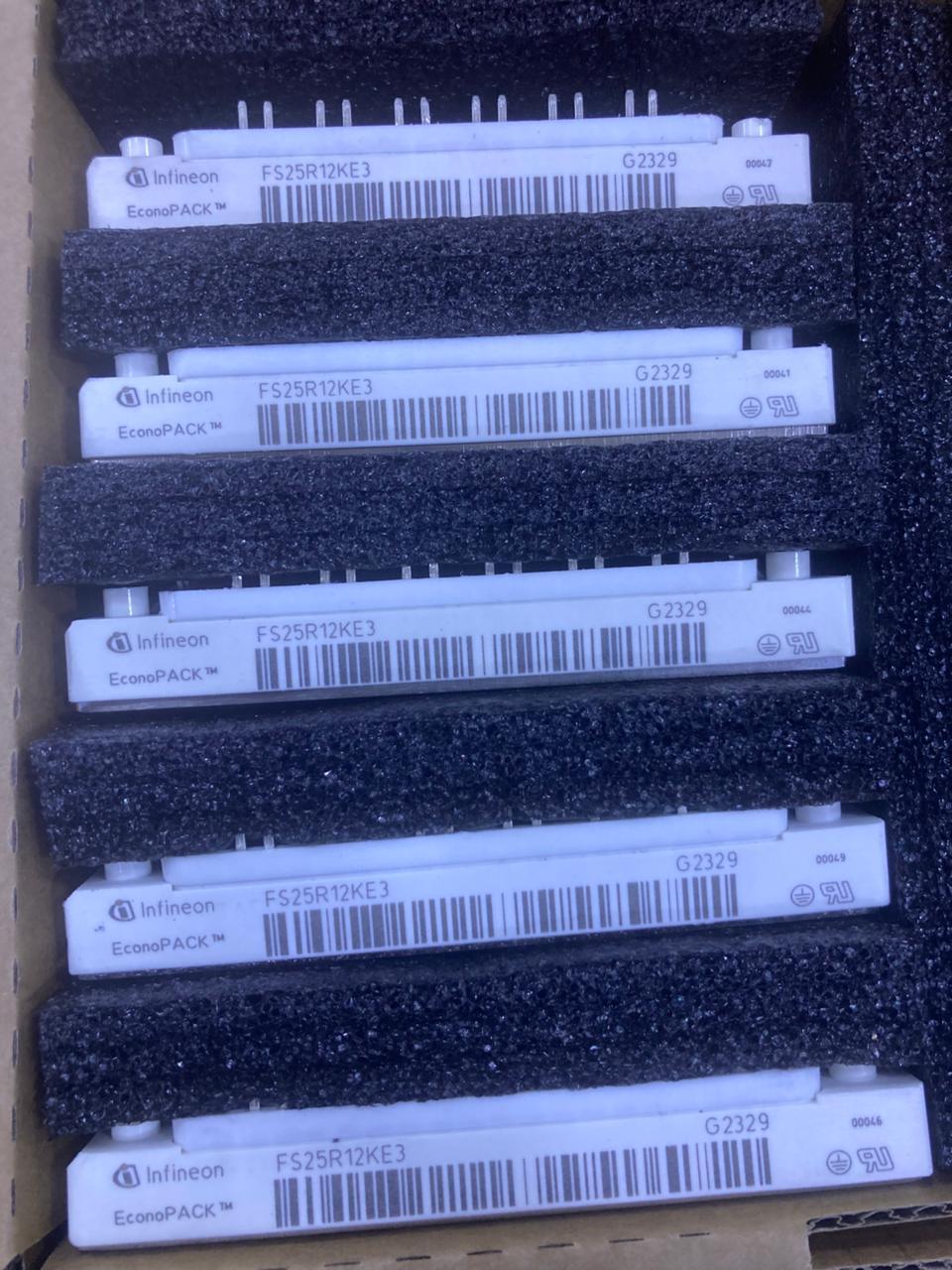

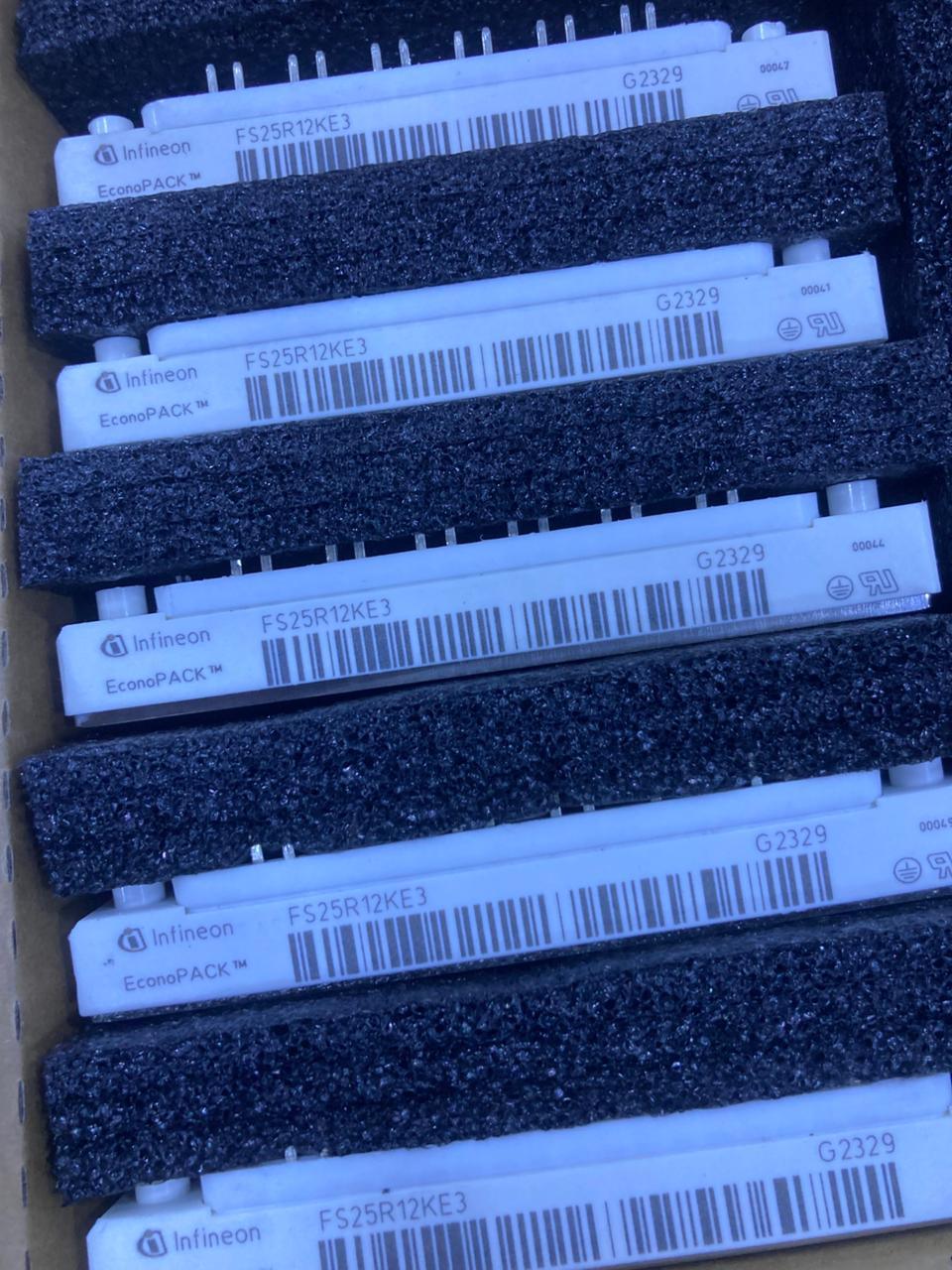

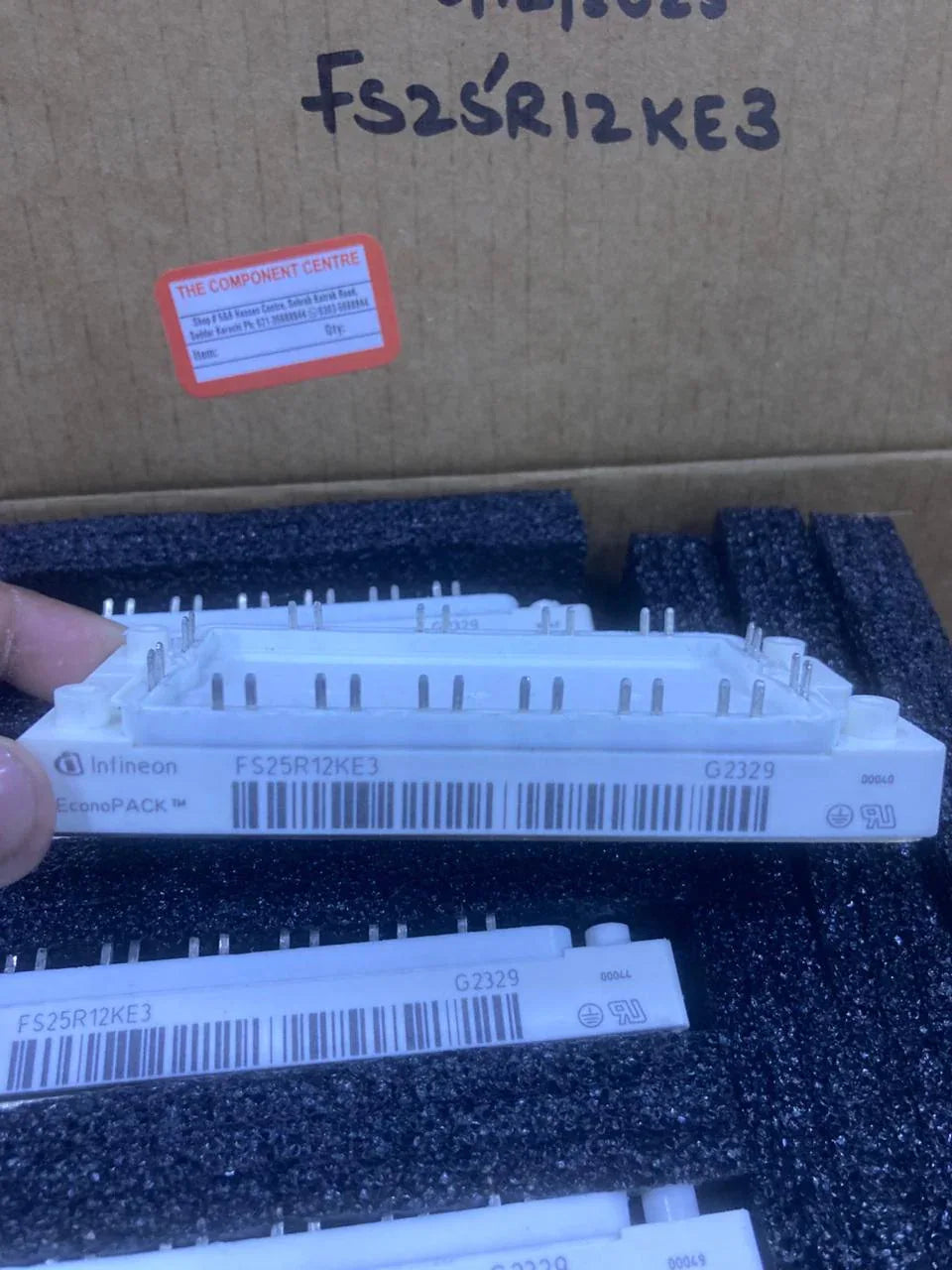

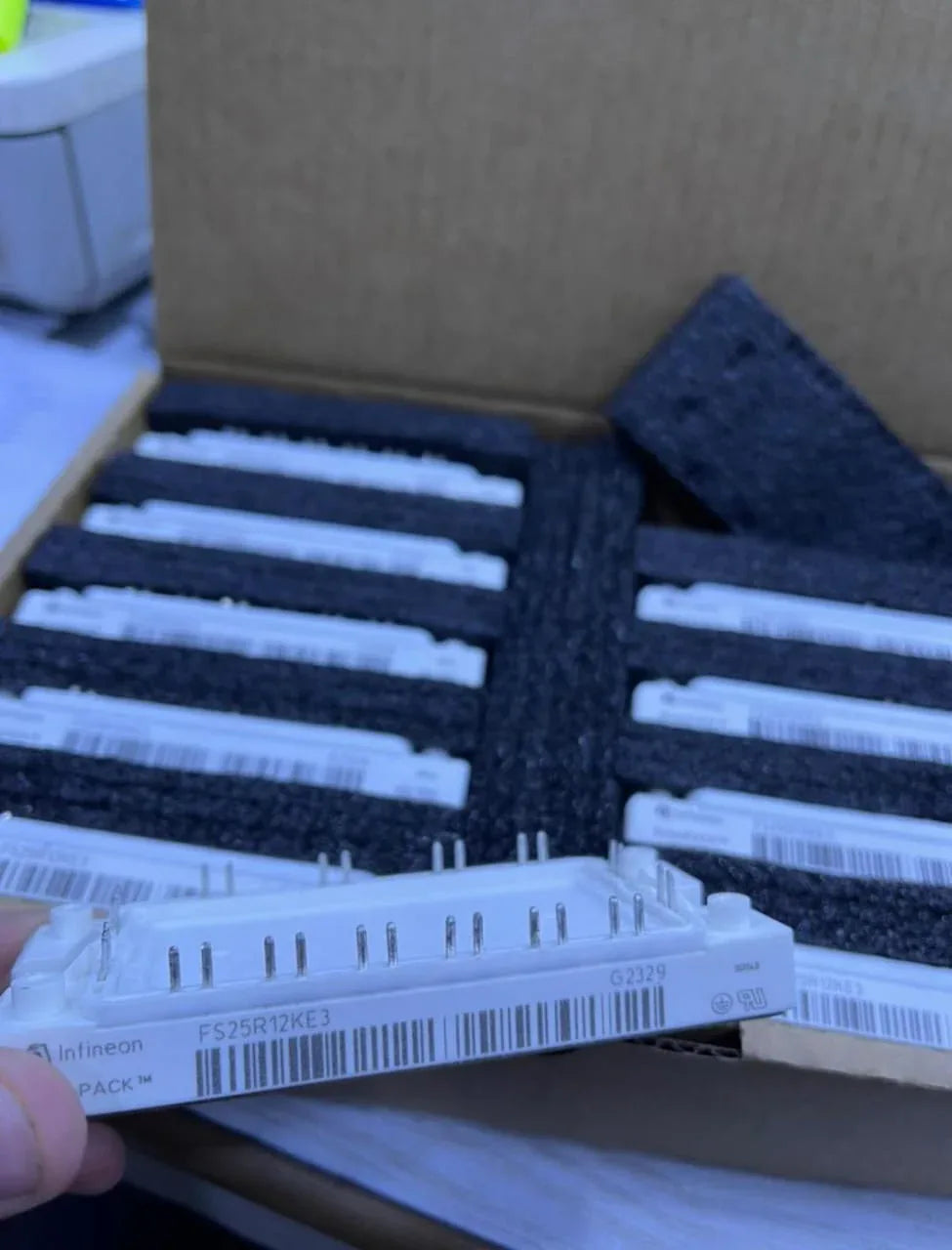

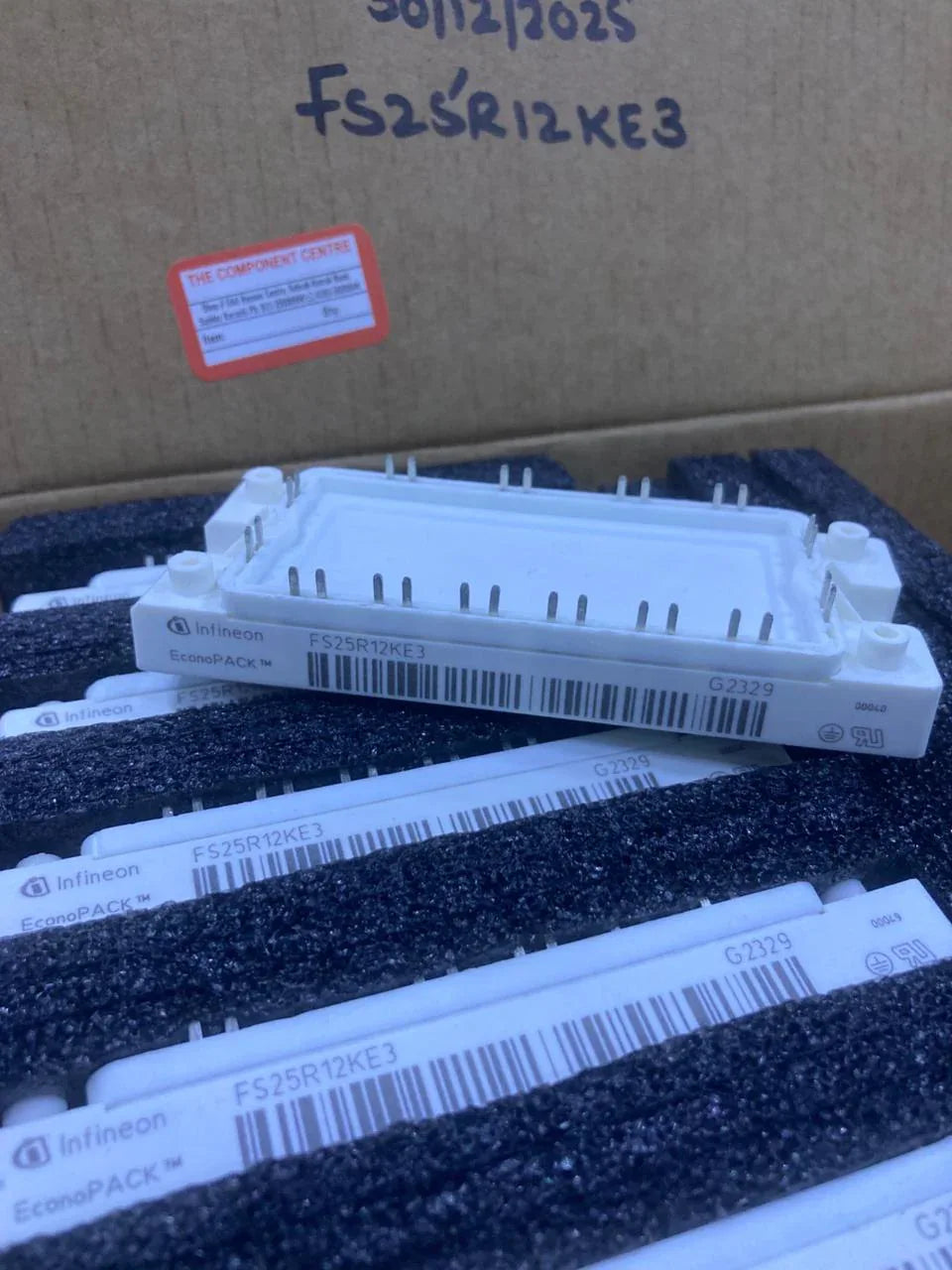

Infineon FS25R12KE3 1200V 25A IGBT Module

Infineon FS25R12KE3 1200V 25A IGBT Module

The FS25R12KE3 is a 1200 V IGBT module from Infineon Technologies, designed for stable and efficient power switching in industrial and commercial power electronics systems. It is based on IGBT3 technology and supplied in the EconoPACK™ 2 package, which supports three-phase inverter topologies and compact system layouts. The module is suitable for applications that require controlled power conversion, consistent electrical behavior, and dependable long-term operation under standard industrial conditions.

This IGBT module supports a nominal collector current of 25 A and is optimized for moderate switching frequencies commonly used in motor drives, power supplies, and inverter circuits. Its electrical characteristics, including controlled switching behavior and low conduction losses, help reduce overall system power dissipation. These properties contribute to stable efficiency and predictable thermal performance, which are important for maintaining operating limits in continuous-duty applications.

The FS25R12KE3 is designed for use in variable frequency drives, UPS systems, industrial power converters, and automation equipment. The integrated NTC temperature sensor enables accurate thermal monitoring, supporting system protection and thermal management strategies. Its mechanical design allows straightforward mounting to heatsinks and compatibility with standard industrial assembly processes.

Key Specs
