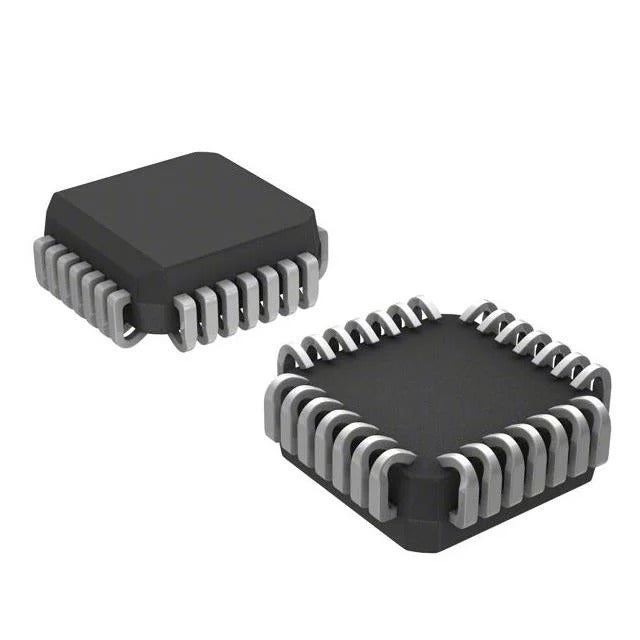

UC3625Q PLCC Brushless DC Motor Controller IC
Regular price
Rs.4,500.00
Sale price
Rs.4,700.00
UC3625Q PLCC Brushless DC Motor Controller IC
The UC3625Q PLCC is a brushless DC motor controller IC designed for efficient and reliable performance in power electronics applications. This IC integrates PWM control, closed‑loop speed regulation, and protection features into a 28‑pin PLCC package suitable for surface‑mount applications. With stable drive capabilities and built‑in safeguards, the UC3625Q supports consistent operation for industrial, commercial, and automotive power systems. Its architecture enables precise motor commutation and current control, providing high efficiency and durability. For reference, the datasheet is available here.
The UC3625Q offers fixed‑frequency PWM generation, current sensing, and internal voltage references that ensure stable control loops. It operates over a supply voltage range of 10 V to 18 V and a temperature range of 0 °C to 70 °C, making it suitable for continuous operation in industrial conditions. Integrated over‑voltage, under‑voltage, and current monitoring features enhance system reliability and reduce the need for additional external components.
This IC is suitable for BLDC motor drives, servo systems, and power regulation circuits. It works with external MOSFETs or Darlington transistors, allowing scalable power stages, and its PLCC package supports compact PCB layouts for industrial and commercial electronics. For full technical specifications, design guidelines, and application notes, refer to the official UC3625Q datasheet – Texas Instruments.
Key Specs – UC3625Q PLCC
| Specification | Details |
|---|---|
| Device Function | Brushless DC Motor Controller IC |
| Package Type | 28‑Pin PLCC (Plastic Leaded Chip Carrier) |
| Supply Voltage Range | 10 V to 18 V |
| Operating Temperature | 0 °C to +70 °C |
| Mounting Style | Surface Mount (SMD/SMT) |
| Output Configuration | Pre‑Driver / PWM Controller |
| Protection Features | Over‑Voltage, Under‑Voltage, Over‑Current |
| Technology | Power MOSFET / Power Darlington compatible |
| Moisture Sensitivity Level (MSL) | Level 3 (168 Hours) |
| RoHS Status | RoHS & REACH compliant |
| Typical Applications | BLDC Motor Control, Industrial Automation, HVAC Systems, Robotics |
