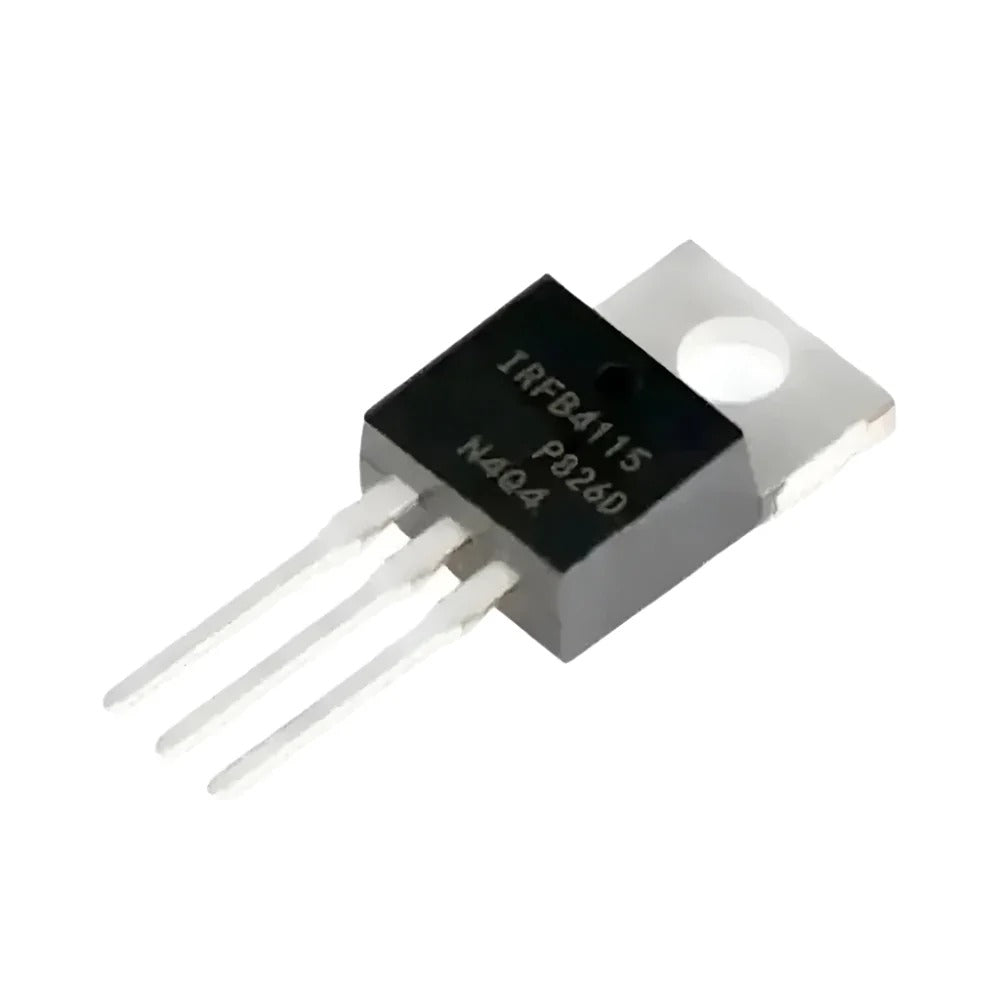

IRFB4115 150V 104A N-Channel MOSFET

IRFB4115 150V 104A Power N-Channel MOSFET – TO-220 Package by Infineon Technologies

IRFB4115 is a 150V N-Channel power MOSFET from Infineon Technologies, designed for high-efficiency switching in demanding power electronics. With a continuous drain current of 104A and a pulsed current capability of up to 115A, it is ideal for DC motors, battery management systems, power converters, and inverters.

This MOSFET features low on-resistance of 11mΩ and fast switching time of 10ns, reducing conduction losses and heat generation in high-frequency applications. Its ±20V gate-source voltage and 2V gate threshold enable precise control, making it suitable for use in uninterruptible power supplies (UPS), SMPS, and telecom systems.

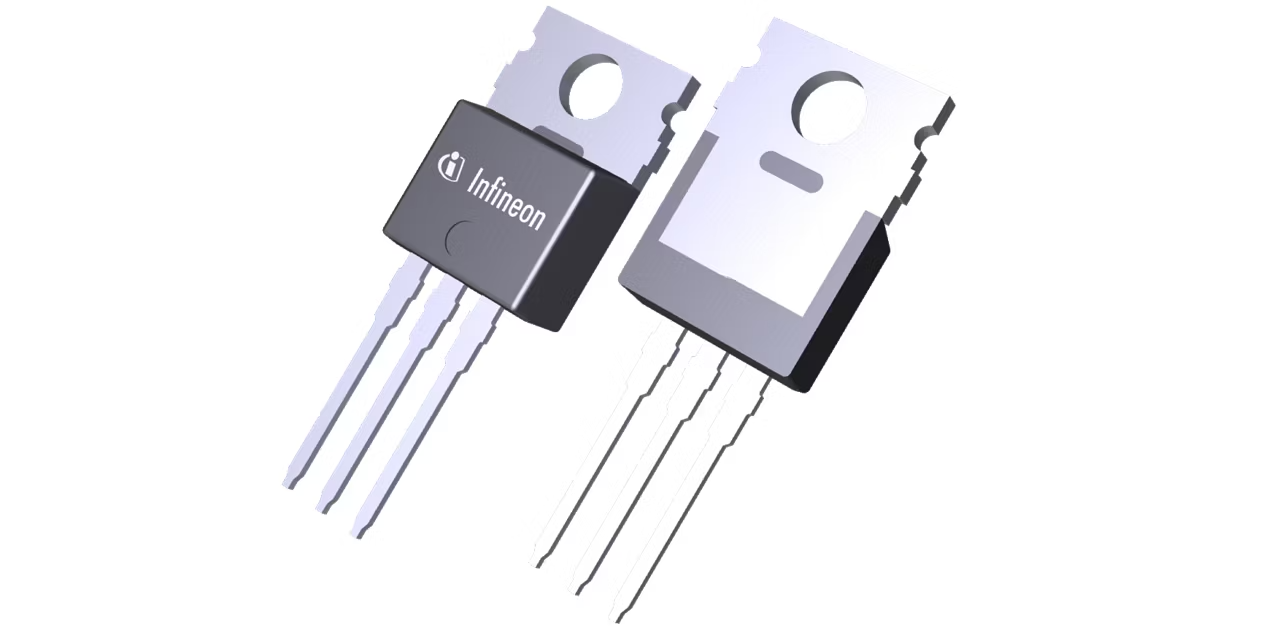

Encased in a TO-220 package, the IRFB4115 supports excellent thermal management, allowing reliable performance under harsh industrial and automotive conditions. Advanced charge balance technology minimizes gate charge, improving overall efficiency in high-current designs.

Trusted for renewable energy systems, EV motor control, and industrial automation, the IRFB4115 delivers stable operation, scalability, and long-term reliability.

Key Specs Voltage Rating: 150V Current Rating: 104A Continuous (115A Pulsed) On-Resistance (R\_DS(on)\): 11mΩ Switching Speed: 10ns Gate Voltage: ±20V Max Gate Threshold: 2V Package: TO-220 Technology: N-Channel, Charge Balance Operating Temp: -55°C to +175°C Applications: Inverters, DC Motors, UPS, SMPS, BMS, EV Systems, Renewable Energy Brand: Infineon Technologies
