6MBI15GS-060 600V, 15A IGBT Module
Regular price
Rs.0.00

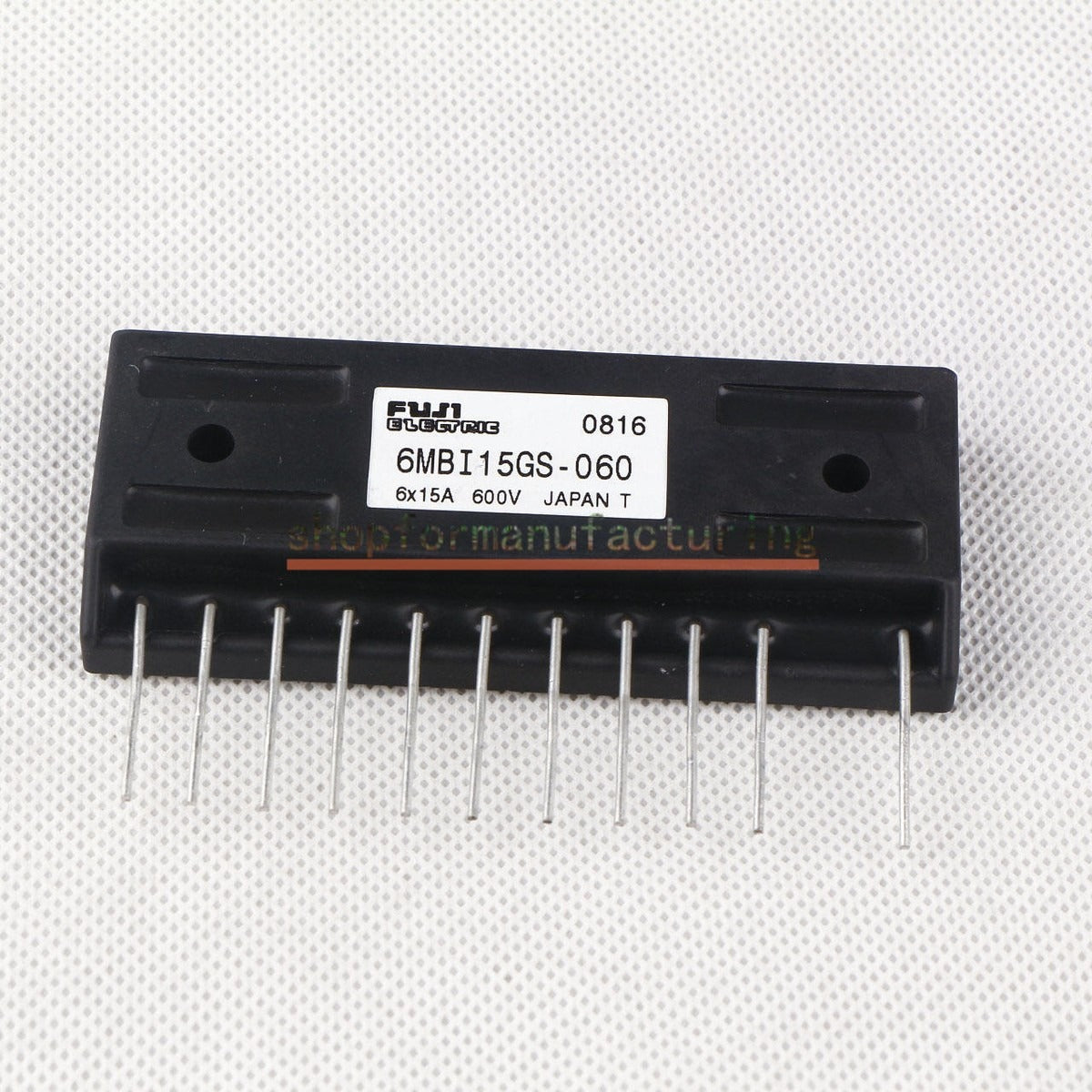

6MBI15GS-060 IGBT Module
The 6MBI15GS-060 is a high-quality IGBT (Insulated Gate Bipolar Transistor) module designed for medium-power industrial and commercial power electronics. With a 600 V collector-emitter voltage rating and 15 A continuous current capacity, this “six-in-one” package offers compact yet powerful switching capability. It is well suited for demanding systems where reliable performance under load is essential.
This module emphasizes durability and efficiency. It features low saturation voltage, improved forward diode (FWD) characteristics, and minimized internal stray inductance to reduce switching losses. Its thermal behaviour is robust: operating junction temperature up to +150 °C, storage from −40 °C to +125 °C, and substantial power dissipation capability. These characteristics make it suitable for continuous or intermittent high power use.
Applications include motor drives (both A.C. and D.C.), inverters for industrial machines, servo amplifiers, uninterruptible power supplies (UPS), and welding equipment. Because of its compact single in-line form factor, it integrates well into systems where space is limited without sacrificing reliability. Its features like Square RBSOA (Reverse Bias Safe Operating Area) ensure better tolerance during switching transients, which further enhances system robustness.
Key Specs
| Specification | Value / Description |
|---|---|
| Module Type | IGBT Module, 6-in-one “six-pack” package |
| Collector-Emitter Voltage (V<sub>CES</sub>) | 600 V |
| Gate-Emitter Voltage (V<sub>GES</sub>) | ±20 V |
| Continuous Collector Current (Ic) | 15 A |
| Peak 1 ms Collector Current Pulse | 30 A |
| Power Dissipation (Pc) | 60 W |
| Operating Junction Temperature (Tj) | up to +150 °C |
| Storage Temperature | −40 °C to +125 °C |
| Isolation Voltage (Vis, 1 min AC) | 2,000 V |
| Collector-Emitter Saturation Voltage (VCE(sat)) | ~2.8 V @ VGE = 15 V, Ic = 15 A |
| Turn-on/Turn-off Switching Times | ~1.2 µs (turn-on), ~1.0-1.2 µs (turn-off) approx. |
