Infineon IKCM30F60HA 600V 30A IPM Module
Regular price
Rs.0.00

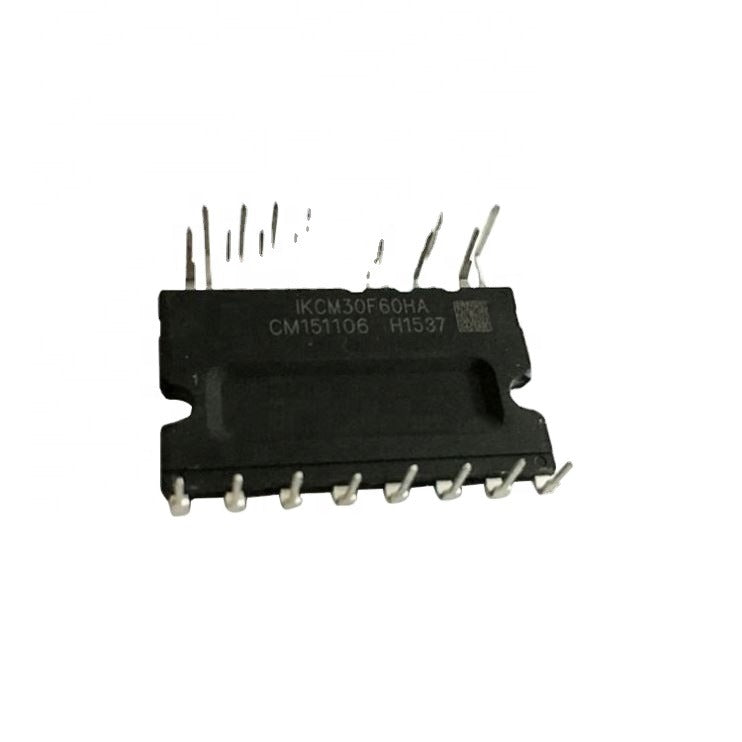

IKCM30F60HA – Intelligent Power Module (IPM)
The Infineon IKCM30F60HA is an intelligent power module (IPM) designed for industrial motor-control applications. It features TRENCHSTOP™ IGBT technology and a SOI (Silicon-On-Insulator) gate driver, supporting a 600 V blocking voltage and a 30 A nominal current. The module is suitable for driving three-phase AC motors, permanent-magnet motors, and variable-speed drives, offering stable electrical performance in demanding environments.
The IKCM30F60HA uses a fully isolated dual-in-line package for thermal conduction and electrical isolation. It includes built-in protections such as bootstrap functionality, over-current shutdown, under-voltage lockout, and cross-conduction prevention. Anti-parallel diodes and optimized thermal characteristics ensure reliable operation over extended periods. Its isolation voltage is rated up to 2000 Vrms. (Infineon datasheet)
This IPM is suitable for both industrial and commercial applications, including motor drives in appliances like washing machines, refrigerators, and air conditioners. Its compact design and integrated protections support efficient and durable motor control systems.
Key Specs
| Parameter | Value |
|---|---|
| Voltage Rating (V<sub>CES</sub>) | 600 V |
| Continuous Output Current (I<sub>C</sub>) | 30 A (T<sub>C</sub> = 25 °C), 20 A (T<sub>C</sub> = 80 °C) |
| Peak Short-Circuit Current | ± 60 A (< 1 ms) |
| Operating Junction Temperature (T<sub>J</sub>) | –40 °C to +150 °C |
| Module Supply Voltage (V<sub>DD</sub>) | –1 V to +20 V |
| High-Side Floating Supply (V<sub>BS</sub>) | –1 V to +20 V |
| Switching Frequency (f<sub>PWM</sub>) | up to 20 kHz |
| Isolation Voltage | 2000 Vrms (60 Hz, 1 min) |
| Thermal Resistance, IGBT Junction-to-Case | 4.13 K/W |
| Thermal Resistance, Diode Junction-to-Case | 4.33 K/W |
| Protection Features | Over-current shutdown, under-voltage lockout, cross-conduction prevention |
| Package Type | 24‑PowerDIP (Dual-in-Line) |
| Compliance | Lead-free, RoHS |
| Applications | Home appliances, industrial motor drives |
