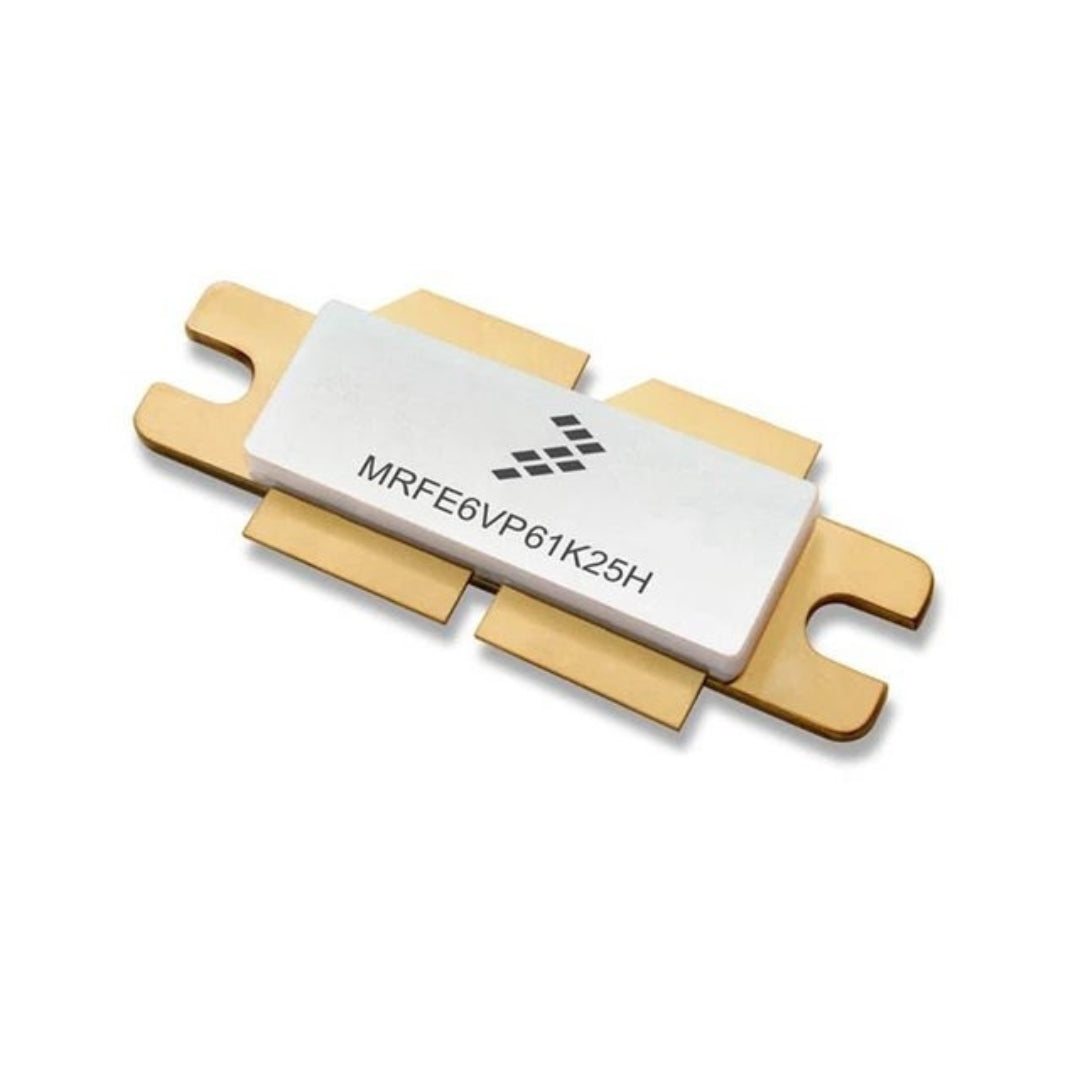

NXP MRFE6VP61K25H 1250W 50V RF Power LDMOS Transistor
Regular price
Rs.0.00
MRFE6VP61K25H — 50 V RF Power LDMOS Transistor
The MRFE6VP61K25H from NXP Semiconductors is a 50 V RF power LDMOS transistor designed for wideband applications operating between 1.8 MHz and 600 MHz. It supports up to 1250 W CW output power and is suitable for RF amplifier stages used in FM broadcast equipment, VHF/UHF communication systems, industrial RF generators, and defense RF platforms. Its internal structure and operating range allow integration into analogue and digital RF transmission designs that require stable, wide-frequency performance.
The device provides consistent linear gain and high drain efficiency in typical configurations, with measured values around 22.9–24 dB gain and approximately 74–75% drain efficiency at 230 MHz under reference test conditions. Built using NXP’s VHV LDMOS process, the MRFE6VP61K25H is specified to withstand VSWR levels above 65:1 at 50 V across phase angles. Its NI-1230H-4S ceramic flange package supports thermal stability in CW and pulsed RF environments.
The MRFE6VP61K25H is compatible with Class AB and Class C amplifier topologies and aligns with RoHS requirements. Typical applications include FM broadcast transmitters, VHF/UHF amplification systems, industrial RF sources, and military RF equipment.
Key Specs
| Parameter | Value |
|---|---|
| Frequency range | 1.8 MHz – 600 MHz |
| Output power | 1250 W CW (typical at 230 MHz) |
| Drain voltage | 50 V |
| Typical gain | 22.9 – 24 dB at 230 MHz |
| Drain efficiency | ~74.6% at 230 MHz |
| VSWR tolerance | > 65:1 at 50 V |
| Package | NI-1230H-4S ceramic flange |
| Operating temp | Up to 150°C (case) |
| Transistor type | RF Power LDMOS |
| Manufacturer | NXP Semiconductors |
| Compliance | RoHS |
