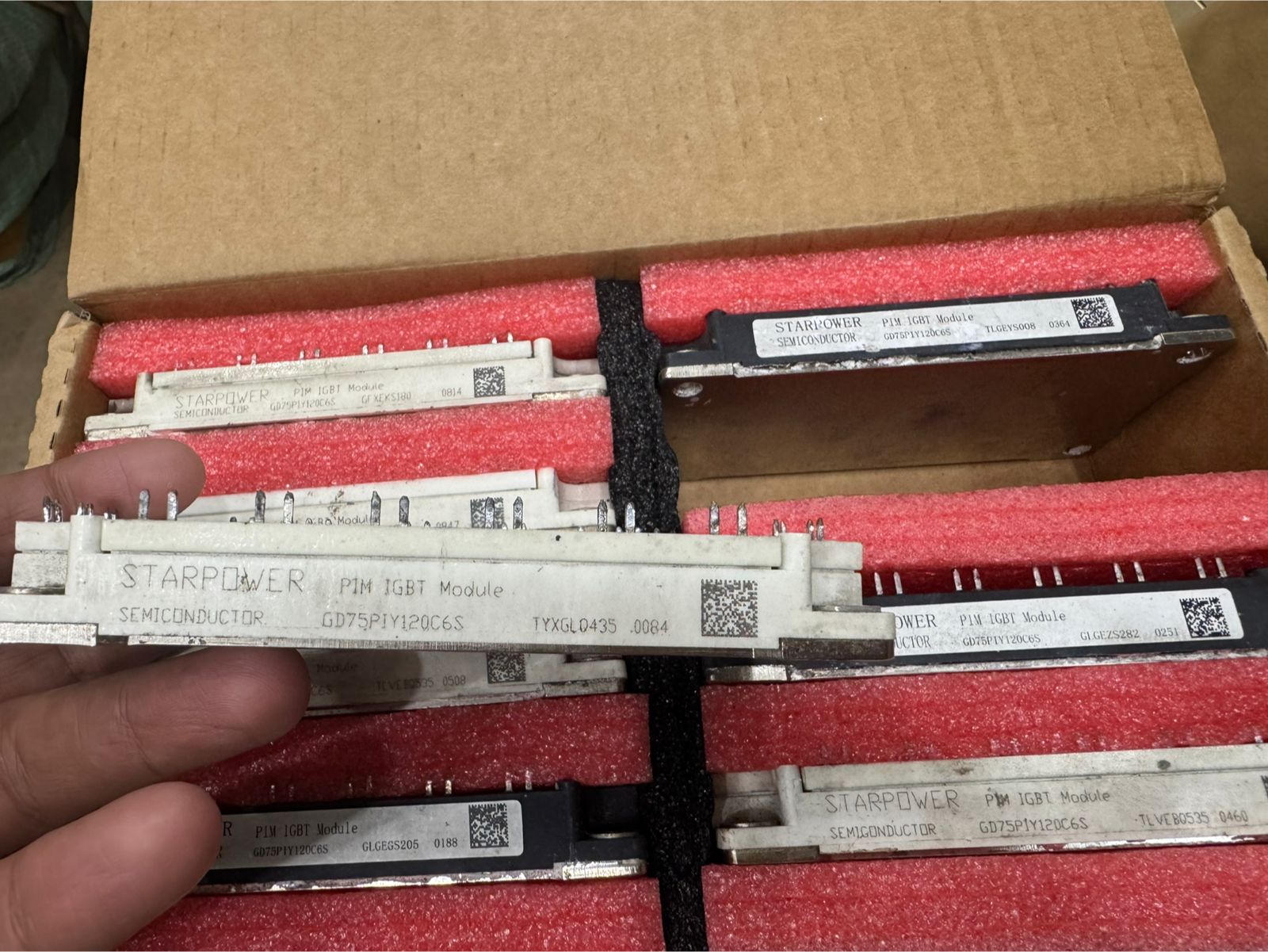

STARPOWER GD75PIY120C6S 1200V 75A IGBT Module
Regular price
Rs.8,500.00
Sale price
Rs.9,000.00
GD75PIY120C6S — 1200V / 75A IGBT Power Module
The GD75PIY120C6S is an industrial Insulated Gate Bipolar Transistor (IGBT) module designed for stable high-power switching in motor drives, inverters, UPS units, and renewable-energy systems. Using trench field-stop technology, it supports reduced conduction losses through a low collector–emitter saturation voltage. Its DBC copper baseplate improves thermal transfer and mechanical stability, making the module suitable for environments that require consistent operation.
With a 1200V collector–emitter voltage rating and a continuous collector current of 75A at 25°C, the GD75PIY120C6S maintains reliable switching behaviour at elevated thermal loads. The maximum junction temperature of 175°C, combined with efficient heat dissipation, supports controlled performance in power conversion systems where predictable electrical and thermal behaviour are needed.
Key Specs
| Feature | Specification |
|---|---|
| Collector–Emitter Voltage (Vceo) | 1200V |
| Continuous Collector Current (Ic) | 75A @ 25°C |
| Collector–Emitter Saturation Voltage (Vce(sat)) | 1.7V – 2.15V |
| Gate–Emitter Voltage (Vge) | ±20V |
| Maximum Junction Temperature (Tjmax) | 175°C |
| Power Dissipation (Pd) | 380W |
| Short-Circuit Capability | 8–10 µs (see datasheet) |
| Package / Technology | Trench Field-Stop IGBT Module with DBC baseplate |
| Applications | Motor drives, inverters, UPS, renewable-energy systems |
