GBU4M 4A 1000V Bridge Rectifier Diode

GBU4M Bridge Rectifier

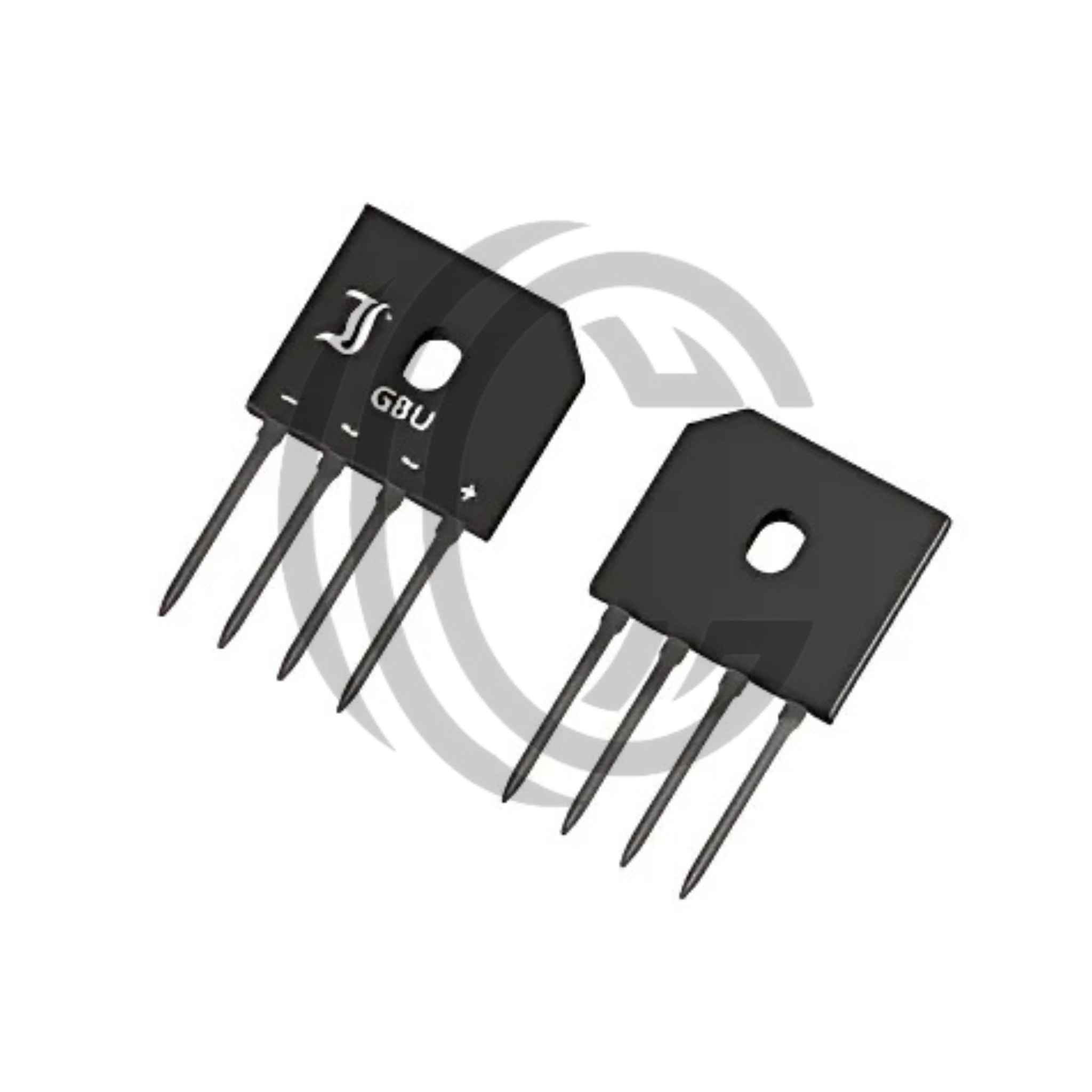

The GBU4M Bridge Rectifier provides reliable AC-to-DC conversion with a 4 A average forward current rating and a peak reverse voltage of 1000 V. Housed in a compact GBU package, it ensures stable DC output with low forward voltage drop and high surge-current tolerance. It is suitable for applications such as inverters, LED drivers, SMPS, UPS systems, motor drives, and solar power converters.

Designed for durability, the GBU4M features a glass-passivated junction and molded plastic case, ensuring long-term operation under high-voltage conditions. Its integrated full-bridge layout simplifies PCB design and supports efficient heat dissipation. It operates across a wide temperature range (−55 °C to +150 °C), making it suitable for industrial automation, renewable energy inverters, and commercial power supplies.

With low forward voltage drop (≤ 1.0 V at 4 A), high peak surge current (up to 150 A), and minimal reverse leakage current, the GBU4M delivers stable rectification and efficient performance. Its construction complies with global standards, including RoHS and UL, ensuring consistent operation in various power-management applications.

For more detailed information, please refer to the ON Semiconductor datasheet for GBU4M GBU4M Datasheet

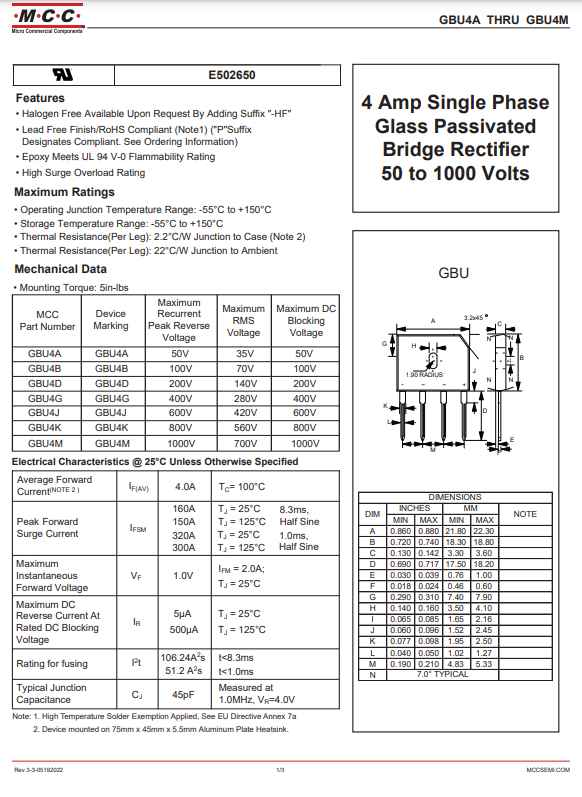

Key Specs

Parameter

Value

Maximum Repetitive Peak Reverse Voltage (V_RRM)

1000 V

Maximum RMS Bridge Input Voltage (V_RMS)

700 V

Maximum DC Blocking Voltage (V_DC)

1000 V

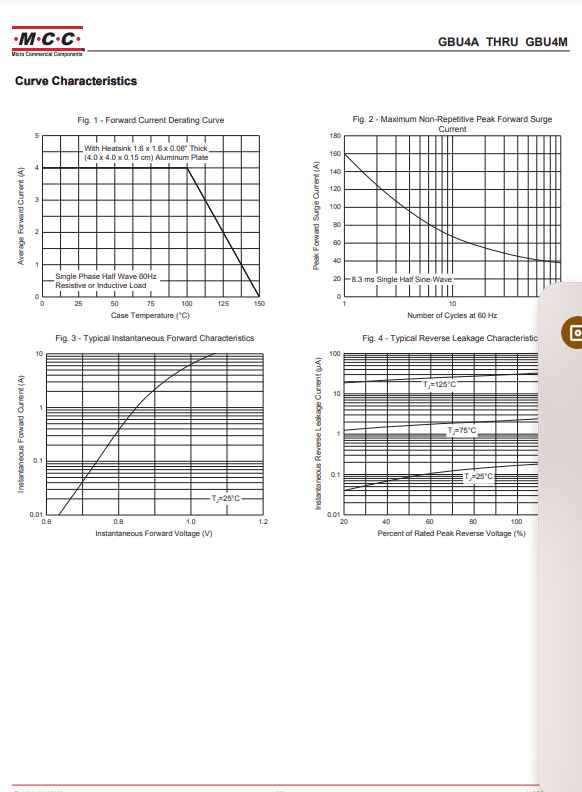

Average Forward Rectified Current (I_F(AV))

4.0 A @ T_C=100 °C

Non-Repetitive Peak Forward Surge Current (I_FSM)

150 A (single half-sine, 8.3 ms)

Forward Voltage Drop (V_F per diode @ 4 A)

≤ 1.0 V

Reverse Leakage Current (I_R) @ 25 °C, rated Vr

≤ 5 µA

Operating / Storage Temperature Range (T_J, T_STG)

–55 °C to +150 °C

Package Style

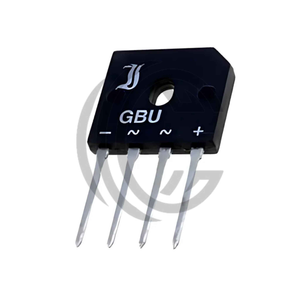

GBU single-phase bridge, through-hole SIP4

Case Material

Molded plastic, UL 94 V-0 flammability
