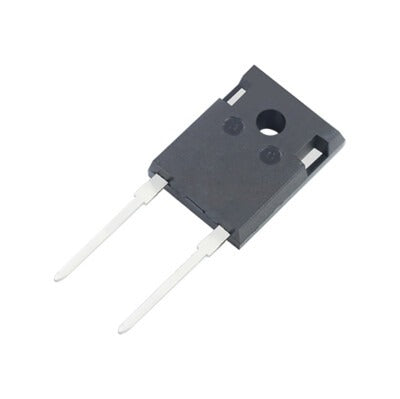

30DQ60BG 60V 30A Schottky Diode
Regular price
Rs.350.00
Sale price
Rs.400.00
30DQ60BG
The 30DQ60BG is a high-current Schottky rectifier designed for reliable power-handling in industrial and commercial electronics applications. Rated at 60 V reverse voltage and 30 A continuous forward current, it provides stable high-current rectification for power supplies, motor drives, inverters, renewable-energy systems, and telecom equipment. Its low forward-voltage drop and fast recovery reduce conduction and switching losses in high-frequency circuits.

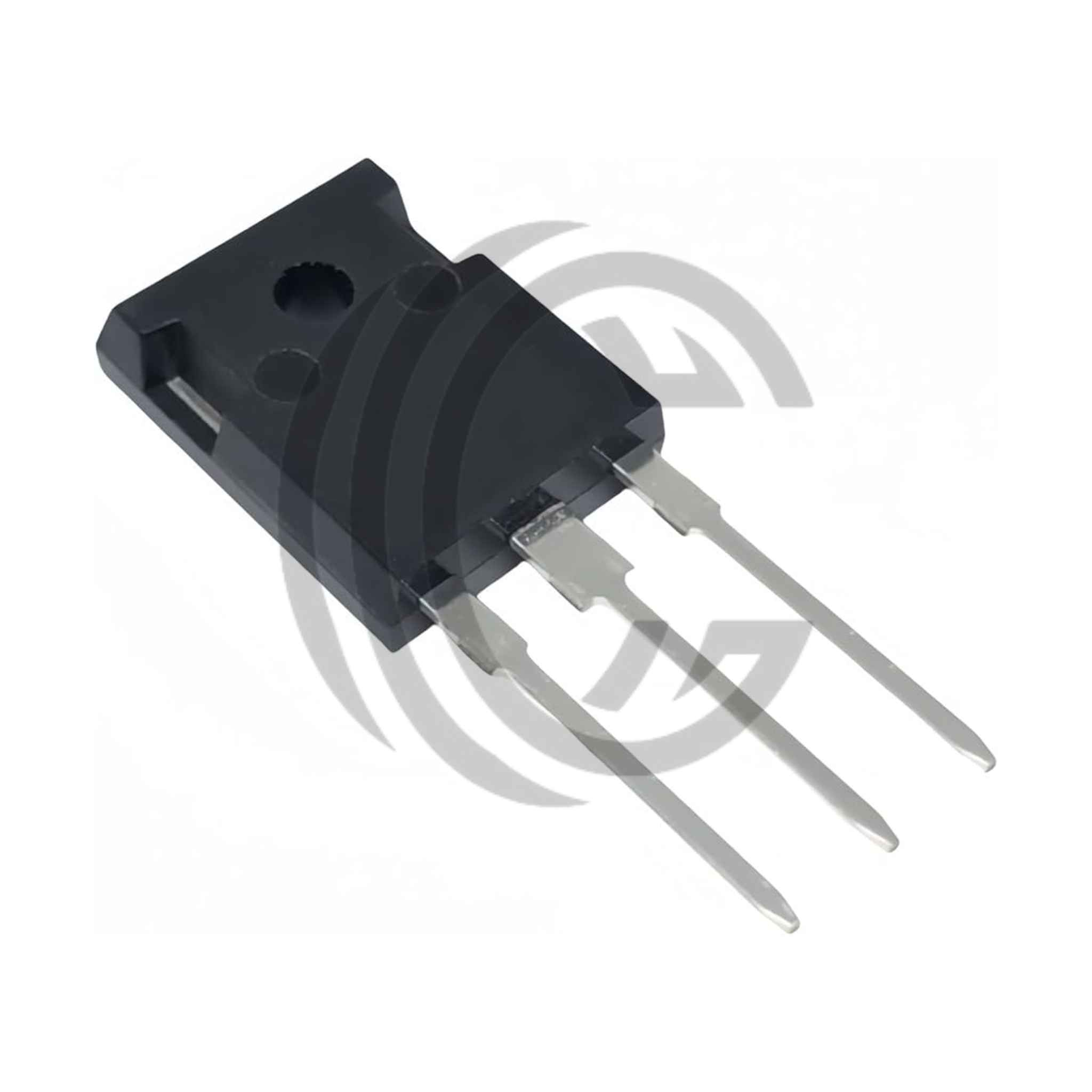

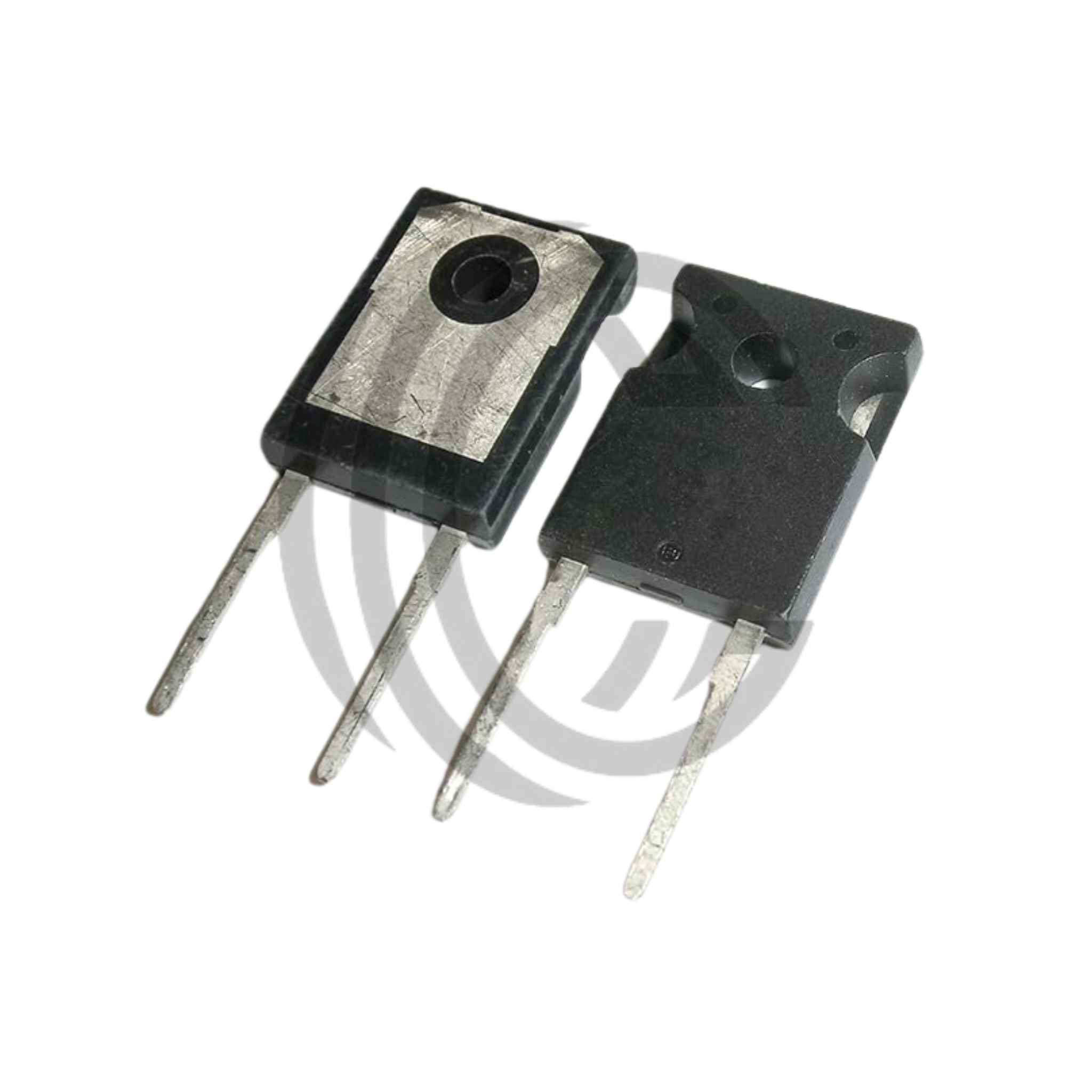

The diode comes in a TO‑247AC (TO‑247 [B]) package, which ensures effective heat dissipation and thermal stability under continuous operation. Low leakage current and fast recovery characteristics support performance in space-constrained designs and circuits where energy efficiency is critical. The component is RoHS and Pb-free compliant and meets standard manufacturing specifications.
Designed for practical use in high-current circuits, the 30DQ60BG reduces power losses and supports efficient thermal management in various industrial and commercial systems. Its features allow compact board layouts and stable operation under high load conditions.
Key Specs
| Specification | Value |
|---|---|
| Reverse Voltage (VR) | 60 V (DC) |
| Continuous Forward Current (IF(AV)) | 30 A |
| Diode Type | Schottky Barrier Rectifier |
| Package | TO‑247AC (TO‑247 [B]) |
| Forward Voltage (VF) @ 30 A | 2.0 – 2.4 V |
| Maximum Reverse Leakage Current (IRM) @ 600 V, TJ = 25 °C | 25 µA |
| Reverse Recovery Time (trr) | ~23–30 ns |
| Operating / Storage Temperature Range | –55 °C to +175 °C |
| Surge Forward Current (non‑repetitive IFSM) | 320 A |

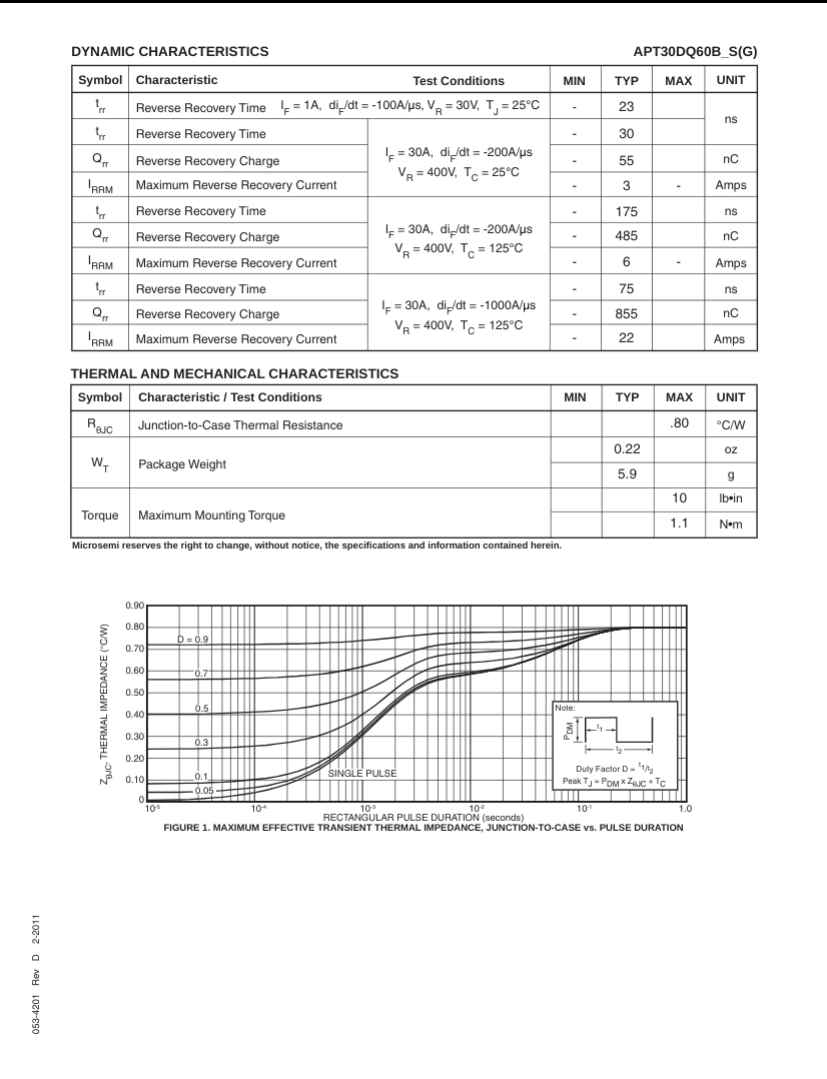

| Package Thermal Resistance (Junction‑to‑Case) RθJC | ~0.8 °C/W |
