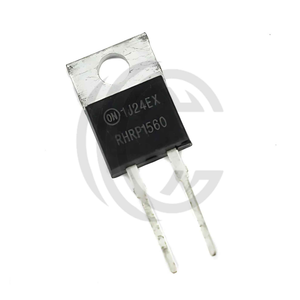

RHRP1560 electronic component transistor with two metal leads and mounting hole by The Component Centre
RHRP1560 electronic component transistor with two metal leads from The Component Centre

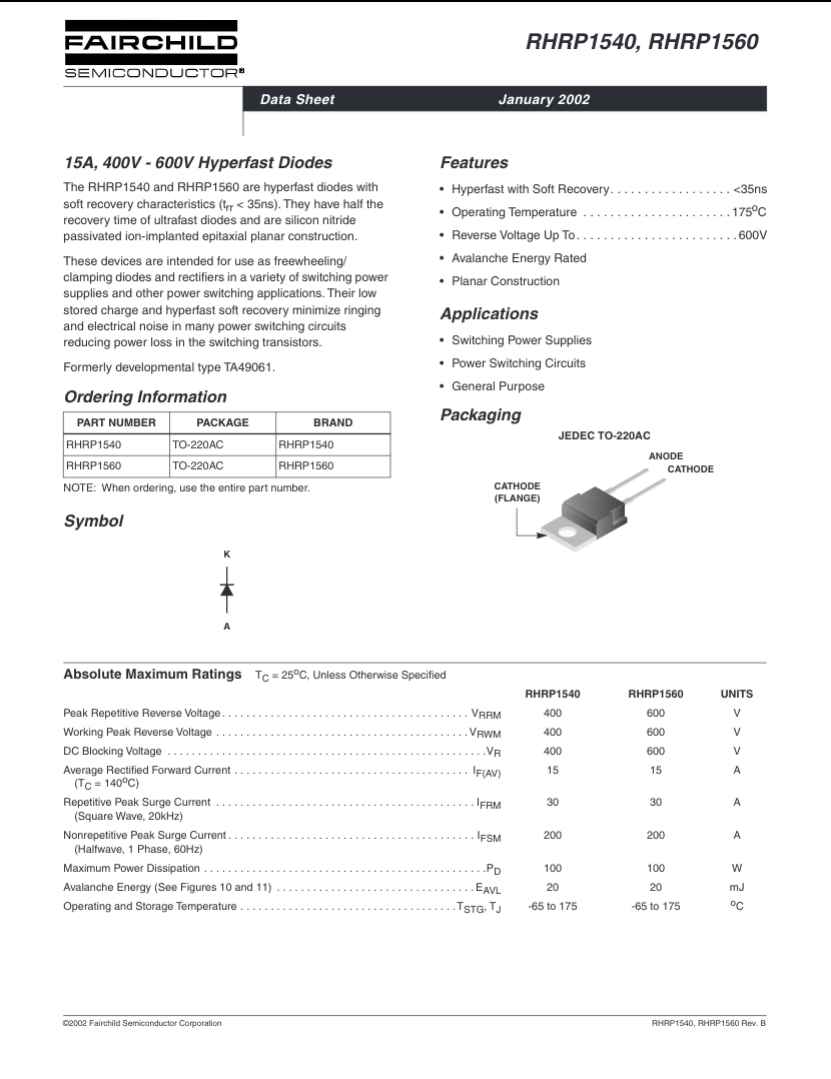

Fairchild Semiconductor RHRP1560 hyperfast diode datasheet showing specifications and features

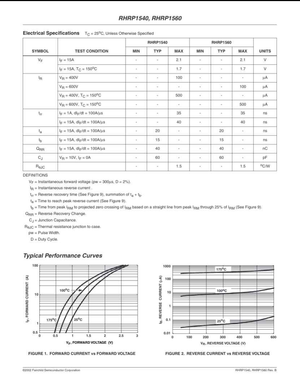

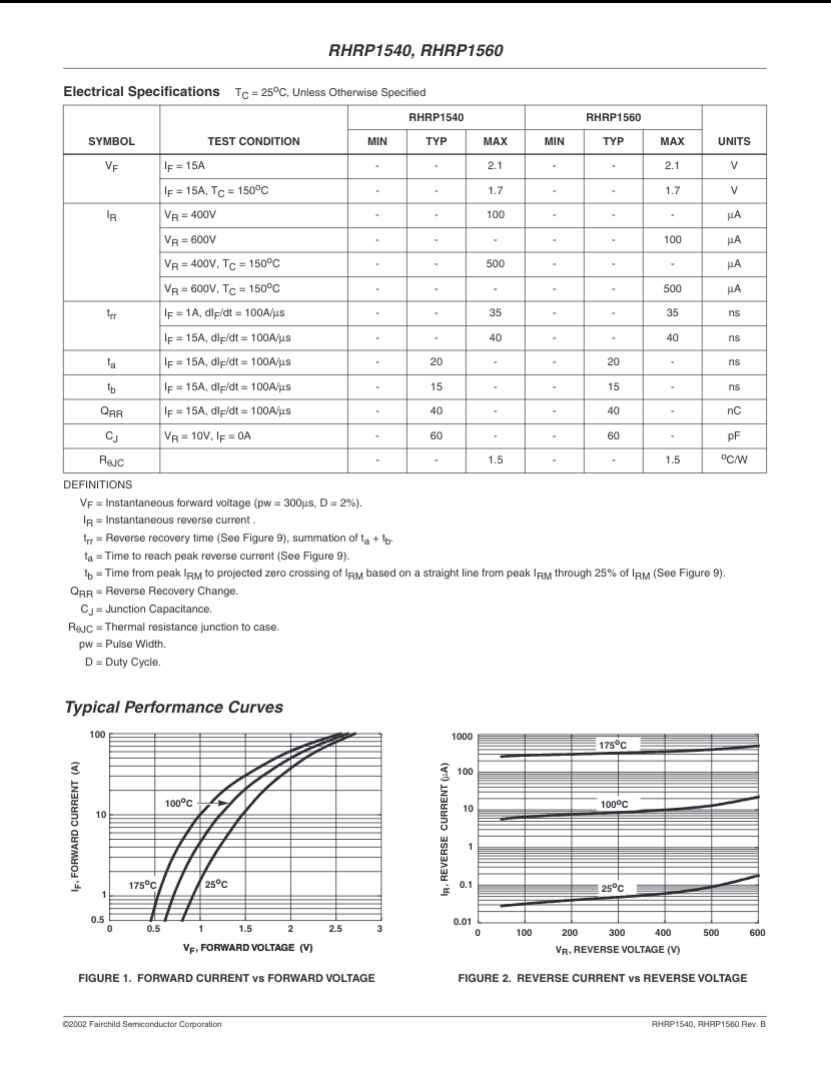

Electrical specifications and performance curves datasheet for RHRP1560 diode from The Component Centre

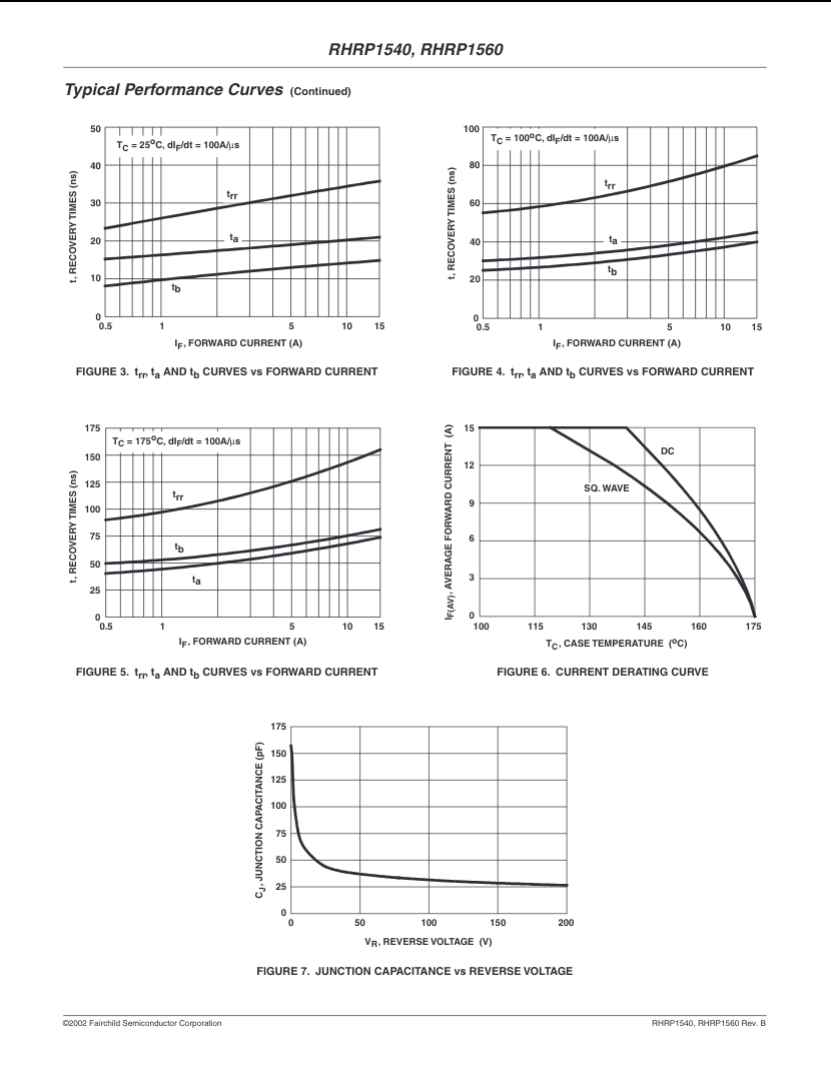

Technical performance curves chart for RHRP1560 semiconductor showing current, temperature, and voltage characteristics

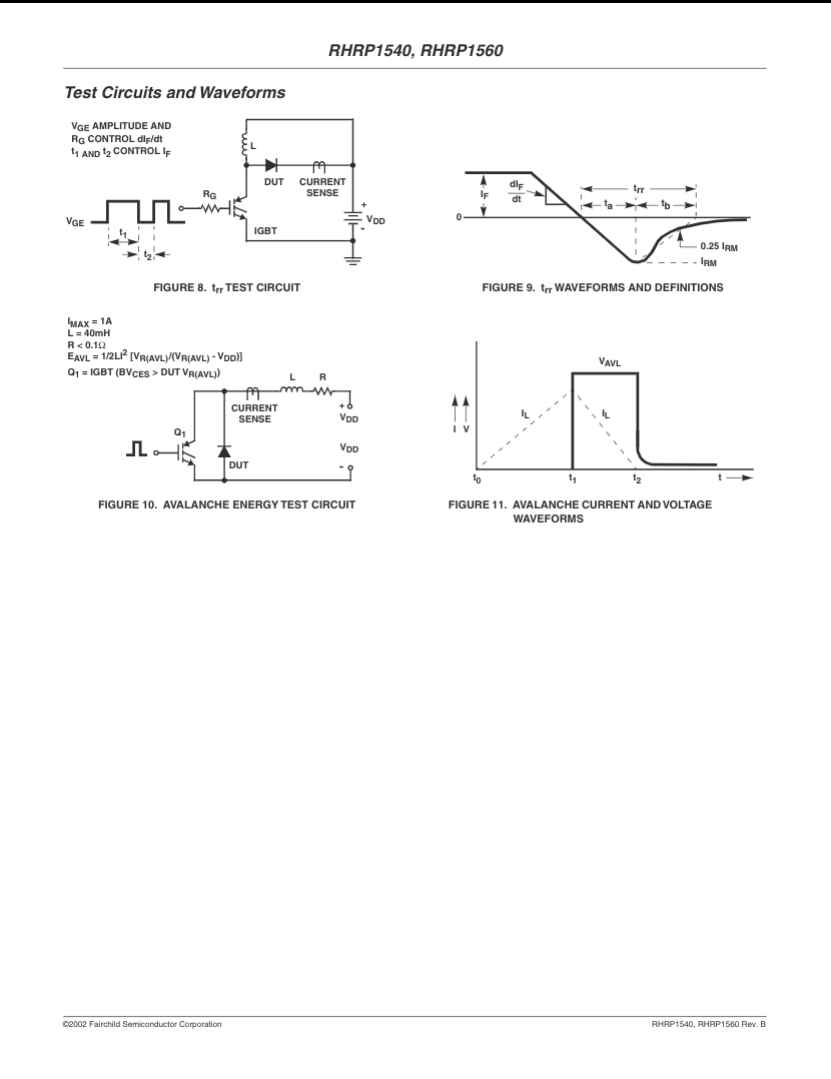

Test circuits and waveform diagrams for RHRP1560 showing avalanche energy and current voltage characteristics

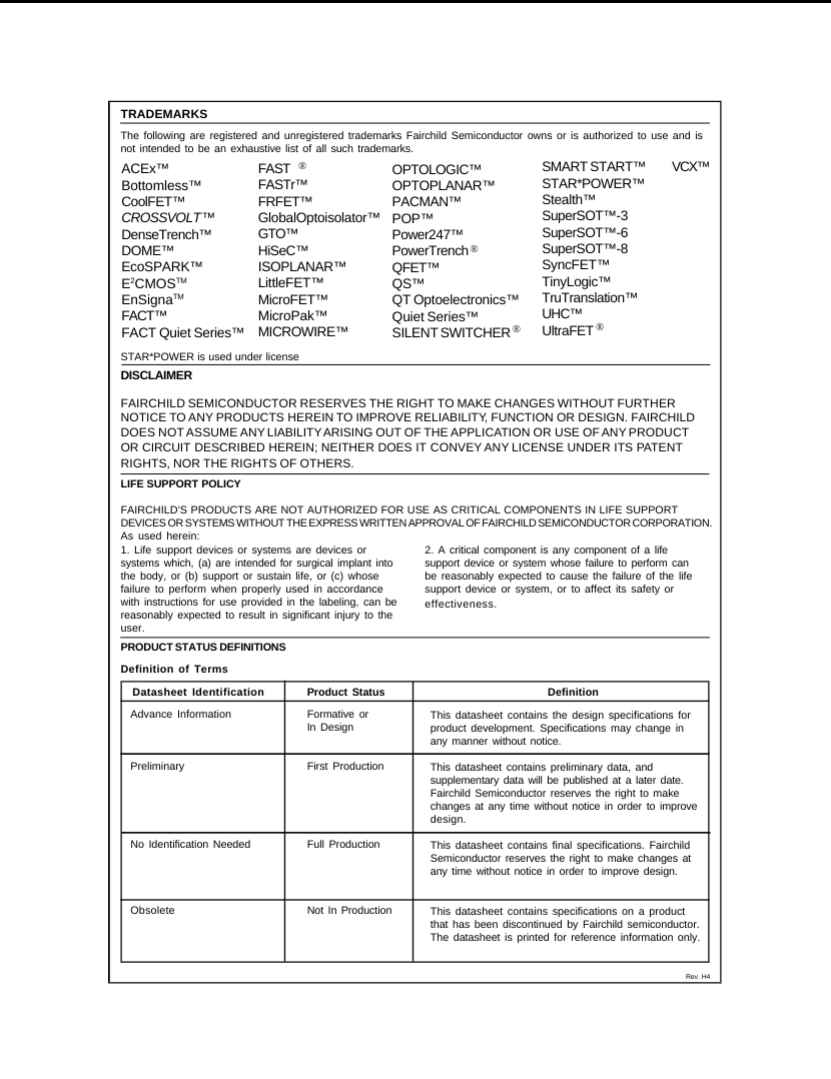

Fairchild Semiconductor trademark and product status information datasheet page with RHRP1560 reference
RHRP1560 electronic component transistor with two metal leads and mounting hole by The Component Centre
RHRP1560 electronic component transistor with two metal leads from The Component Centre
Fairchild Semiconductor RHRP1560 hyperfast diode datasheet showing specifications and features
Electrical specifications and performance curves datasheet for RHRP1560 diode from The Component Centre
Technical performance curves chart for RHRP1560 semiconductor showing current, temperature, and voltage characteristics
Test circuits and waveform diagrams for RHRP1560 showing avalanche energy and current voltage characteristics
Fairchild Semiconductor trademark and product status information datasheet page with RHRP1560 reference

RHRP1560 600V 15A Fast Recovery Diode

Regular price Rs.160.00 Sale price Rs.150.00
6% OFF
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
RHRP1560 electronic component transistor with two metal leads and mounting hole by The Component Centre
This item: RHRP1560 600V 15A Fast Recovery Diode
Regular price Rs.160.00 Sale price Rs.150.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,070.00 PKR Sale total price Rs.3,835.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
RHRP1560 electronic component transistor with two metal leads and mounting hole by The Component Centre

RHRP1560 600V 15A Fast Recovery Diode

Rs.150.00

RHRP1560 600V 15A Ultra-Fast Recovery Rectifier Diode

The RHRP1560 is a high-speed, ultra-fast recovery rectifier diode rated for 600V and 15A, designed for use in power electronics where efficient switching and minimal energy loss are critical. Its low reverse recovery time allows fast transitions, reducing power dissipation in circuits such as motor drives, inverters, UPS systems, and switch-mode power supplies. The diode is built to perform reliably under continuous high-voltage operation, offering stable thermal characteristics and consistent current handling.

This rectifier is well-suited for demanding applications that require rapid switching performance with minimal heat generation. The RHRP1560’s ultra-fast reverse recovery enables improved circuit response times and overall system efficiency. Its robust design supports operation in high-frequency and high-voltage environments, making it an essential component in power conversion systems, solar inverters, and industrial automation equipment. It also helps engineers reduce system complexity by offering high surge capability and low forward voltage drop, simplifying thermal management and increasing design flexibility.

The RHRP1560 rectifier diode is commonly integrated into high-voltage output stages, PFC circuits, and freewheeling applications. It helps reduce switching losses and protects sensitive power components from voltage spikes, making it ideal for use in both AC-DC and DC-DC converter circuits. Its durability and stable performance make it suitable for both prototyping and large-scale electronic production.

Key Specs: Voltage Rating: 600V Current Rating: 15A Recovery Type: Ultra-Fast Reverse Recovery Time: Typically 35ns Mounting: Through-Hole / TO-220 Package Applications: Inverters, motor drives, UPS systems, SMPS, solar inverters, power control units
