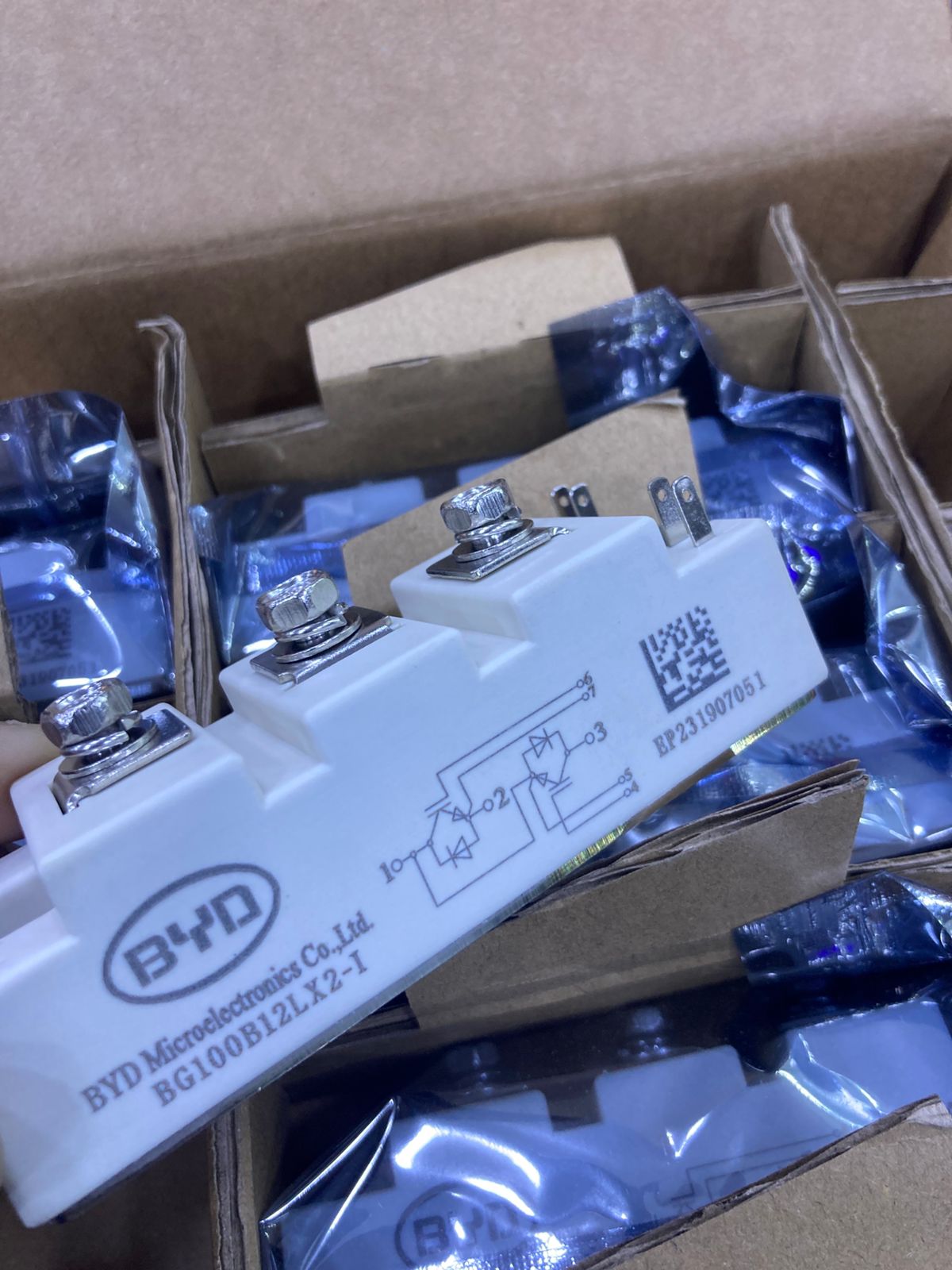

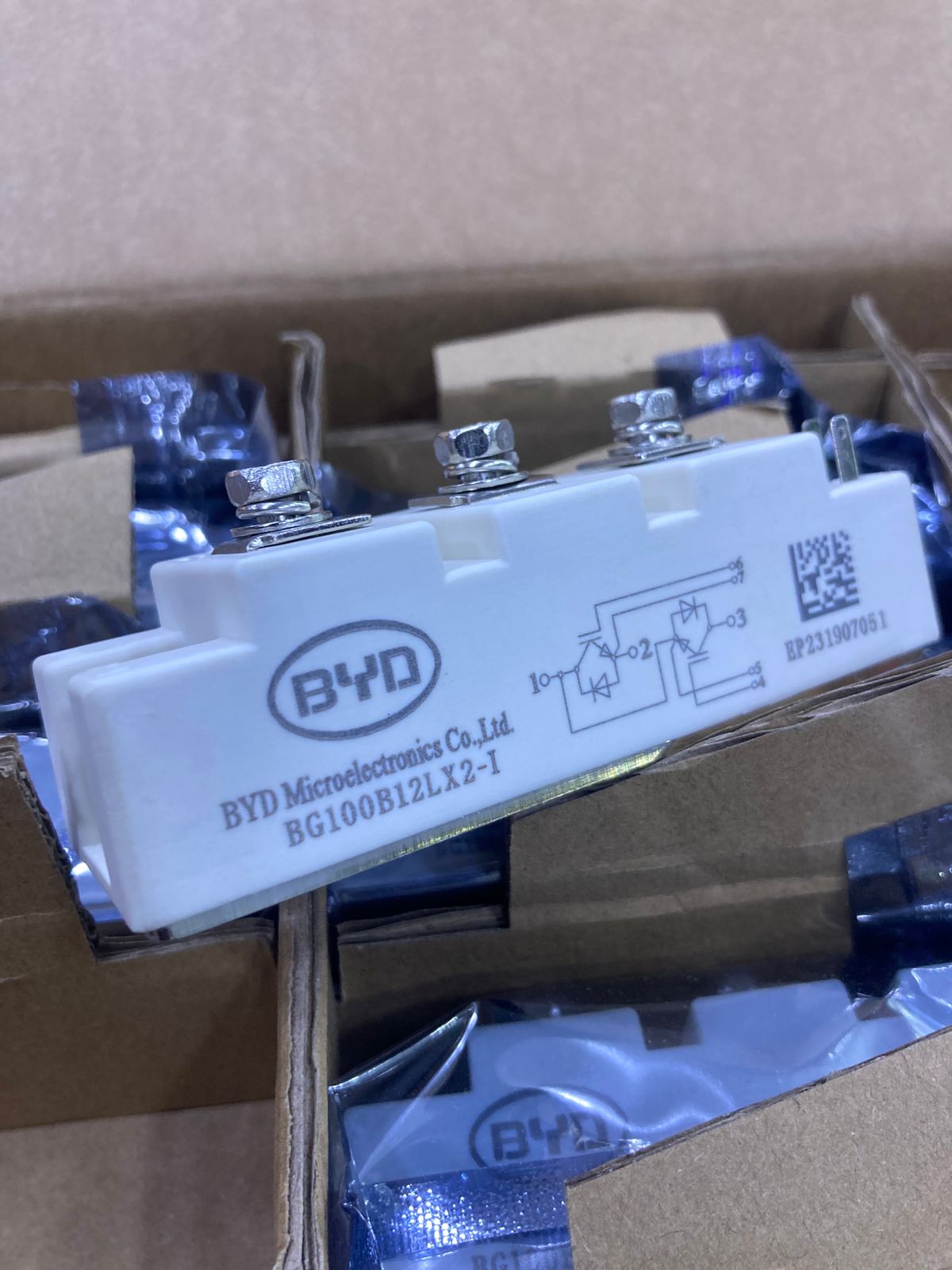

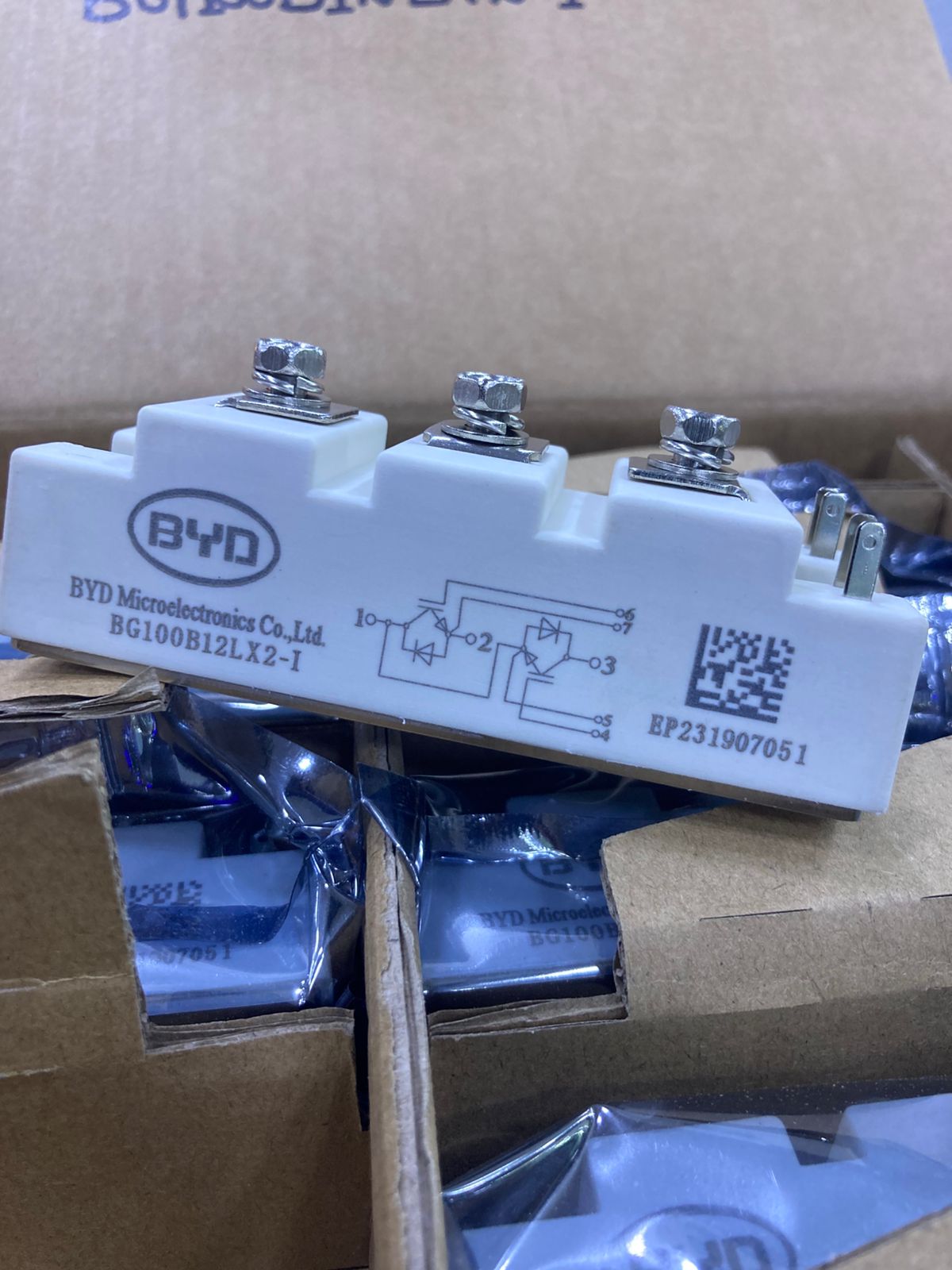

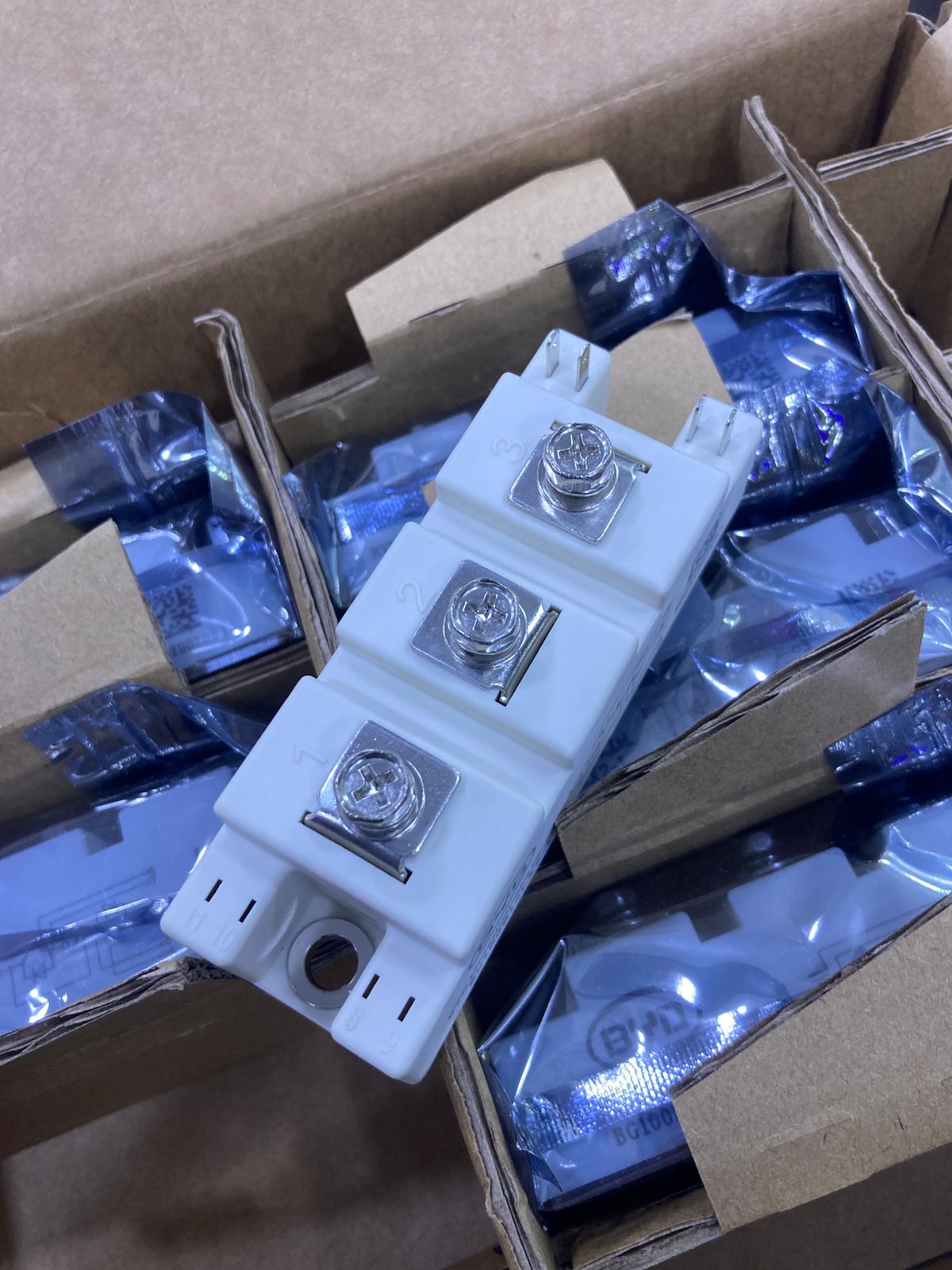

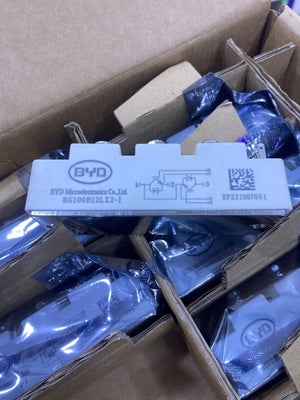

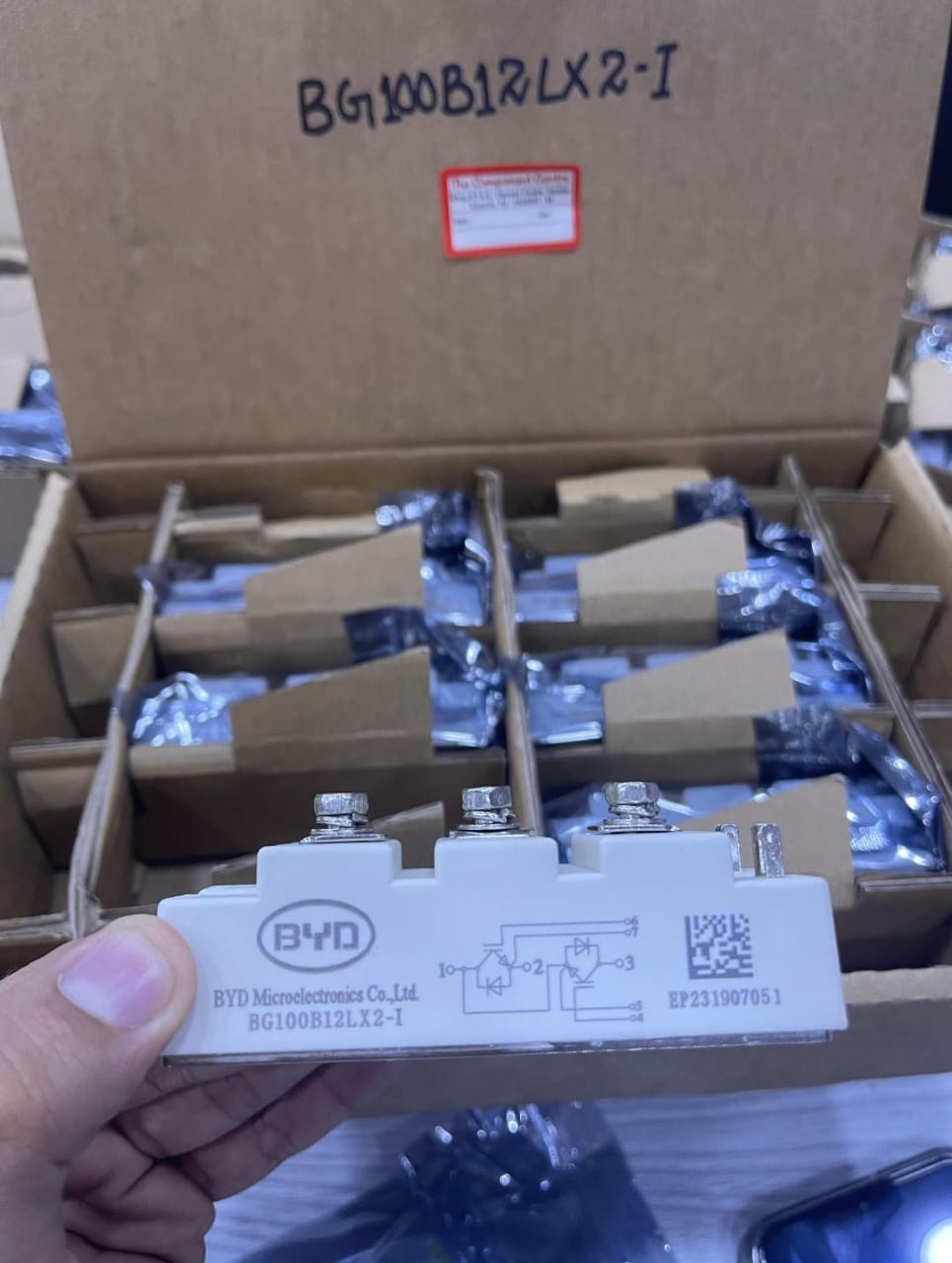

BYD BG100B12LX2‑I IGBT Module
The BYD BG100B12LX2‑I is a 1200V, 100A IGBT power module from BYD Semiconductor, designed for power conversion in industrial and commercial applications. Integrating advanced IGBT and diode technology, this module provides low switching losses, high reliability, and short-circuit capability. Its compact design allows efficient heat management, supporting stable performance in motor drives, UPS systems, and renewable energy inverters.
This module is suitable for industrial motor control, uninterruptible power supplies (UPS), and solar inverter systems, offering consistent operation under high-current loads. Its RoHS-compliant construction meets environmental standards and supports long-term use in industrial power electronics.
The BG100B12LX2‑I’s thermal design reduces junction-to-case resistance, minimizing heat buildup and cooling requirements. It is suitable for industrial automation, renewable energy systems, and commercial power electronics, providing reliable performance for high-power applications.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | BYD Semiconductor |
| Part Number | BG100B12LX2‑I |
| Module Type | IGBT Power Module |
| Collector‑Emitter Voltage (V<sub>CES</sub>) | 1200 V |
| Continuous Collector Current (I<sub>C</sub>) | 100 A |
| Package | 34 mm |
| Switching Losses | Low |
| Short-Circuit Capability | High |
| Thermal Performance | Efficient heat dissipation, low junction-to-case resistance |
| Compliance | RoHS / Lead-free |
| Applications | UPS systems, motor drives, solar inverters, industrial power electronics |
