Powerex CM200YE4-12F 600V 200A TLI IGBT Module

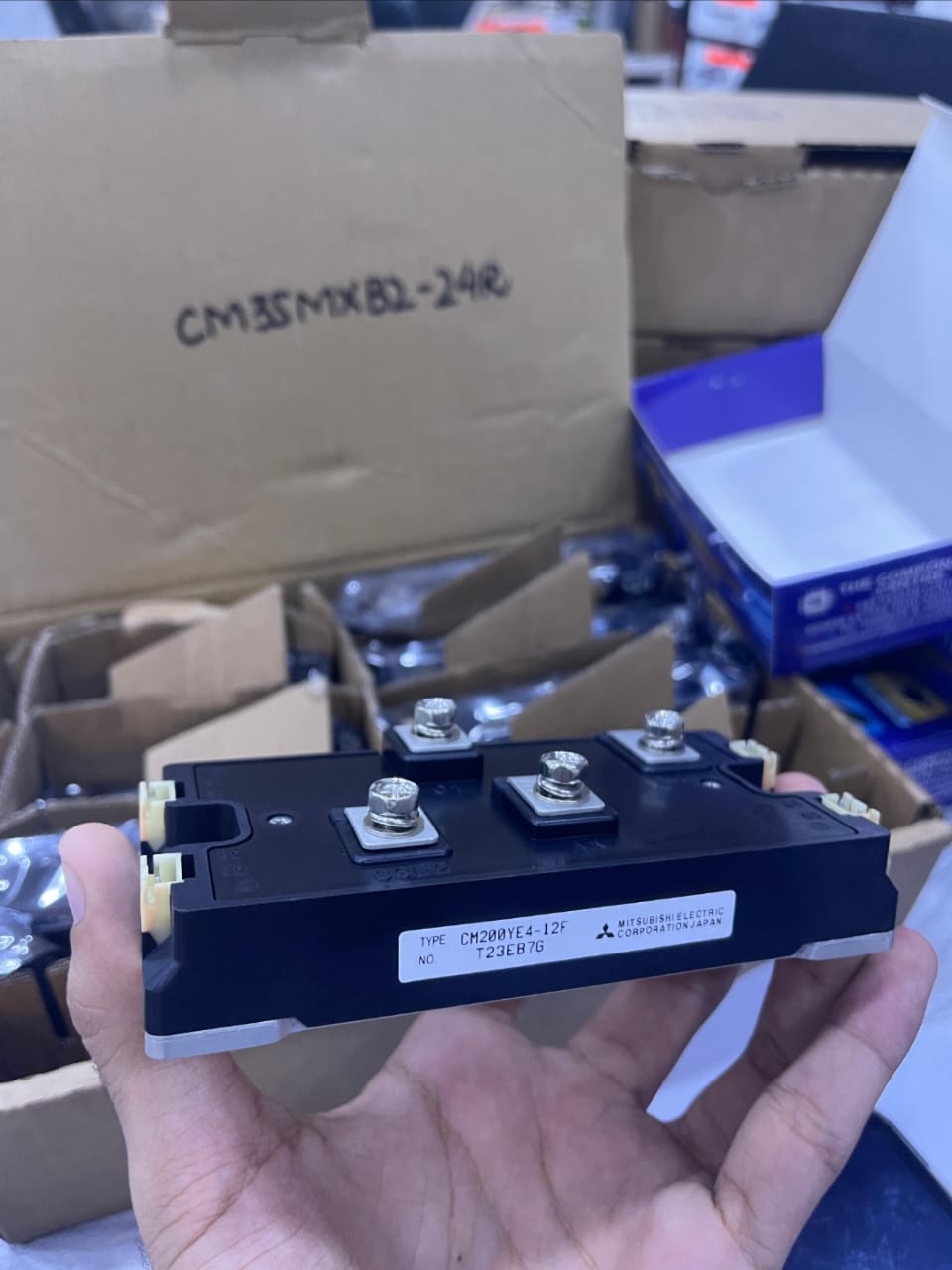

CM200YE4-12F — TLI-Series (Three-Level Inverter) IGBT Module
The CM200YE4-12F is a high-power, high-efficiency IGBT module from the TLI (Three-Level Inverter) family designed for modern three-level inverter topologies. Engineered to improve output waveform quality and reduce output ripple, this module is ideal for solar inverters, high-efficiency UPS systems and motor drives with long cable runs where lower surge voltage and cleaner waveforms matter. The module’s three-level topology reduces switching stress and helps designers meet strict efficiency and EMI targets in industrial and commercial power-electronics systems.
Performance and reliability are core to the CM200YE4-12F’s design: it is specified for 600 volts (VCES) blocking and a continuous collector current of 200 A, with a 400 A pulse peak capability, allowing reliable operation in high-power inverter stages and drive systems. The device features a low typical collector-emitter saturation voltage (VCE(sat) ≈ 1.6 V @ 200 A) and a large total gate charge (≈ 1240 nC) — characteristics that translate to lower conduction losses and predictable switching behavior when properly driven. Thermal design is simplified by low junction-to-case thermal resistance (Rth(j-c') ≈ 0.20 °C/W for the IGBT), giving the module excellent thermal handling for industrial duty cycles.Â
Built for commercial and industrial environments, the CM200YE4-12F supports a wide junction temperature range (-40 °C to +150 °C), high isolation of 2500 Vrms between main terminals and baseplate, and a practical mounting form factor (typical weight ≈ 430 g). These mechanical and thermal attributes — together with robust clamp/fast-recovery diode performance and specified mounting torques — make the module durable in long-life systems and straightforward to integrate on heatsinks or power assemblies. For system designers seeking a proven 600 V / 200 A building block for three-level inverters, the CM200YE4-12F balances efficiency, durability and practical thermal margins.Â
Key specifications (extracted from the official datasheet)
| Parameter | Value |
|---|---|
| Series / Type | TLI-Series (Three-Level Inverter). |
| Collector-Emitter Voltage (VCES) | 600 V. |
| Continuous Collector Current (IC, TC = 25 °C) | 200 A. |
| Peak Collector Current (ICM, pulse)* | 400 A. |
| Maximum Collector Dissipation (PC, TC'=25 °C) | 625 W. |
| Typical VCE(sat) (IC = 200 A, VGE = 15 V, Tj = 25 °C) | ≈ 1.6 V. |
| Total Gate Charge (QG, VCC = 300 V, IC = 200 A) | ≈ 1240 nC. |
| Input Capacitance (Cies) | ≈ 54 nF. |
| Thermal Resistance Rth(j–c') (IGBT) | ≈ 0.20 °C/W. |
| Junction Temperature Range (Tj) | -40 °C to +150 °C. |
| Isolation Voltage (Main terminal to baseplate, 1 min) | 2500 Vrms. |
| Typical Weight | ≈ 430 g. |
For more detailed information, please refer to the Powerex datasheet (official PDF): https://doc.platan.ru/pdf/datasheets/mitsubishi/CM200YE4-12F.pdf.
