Home DP15H1200 1200V 15A IGBT Module

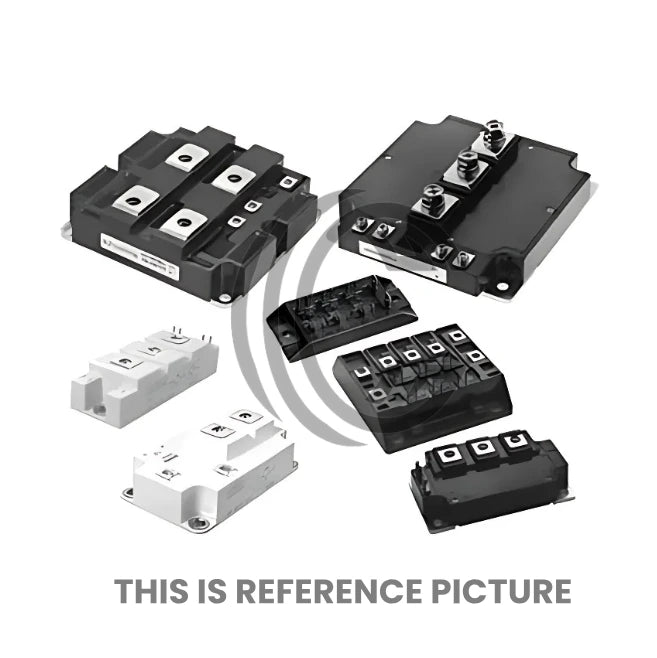

DP15H1200 power modules assortment from The Component Centre showing various black and white electronic components

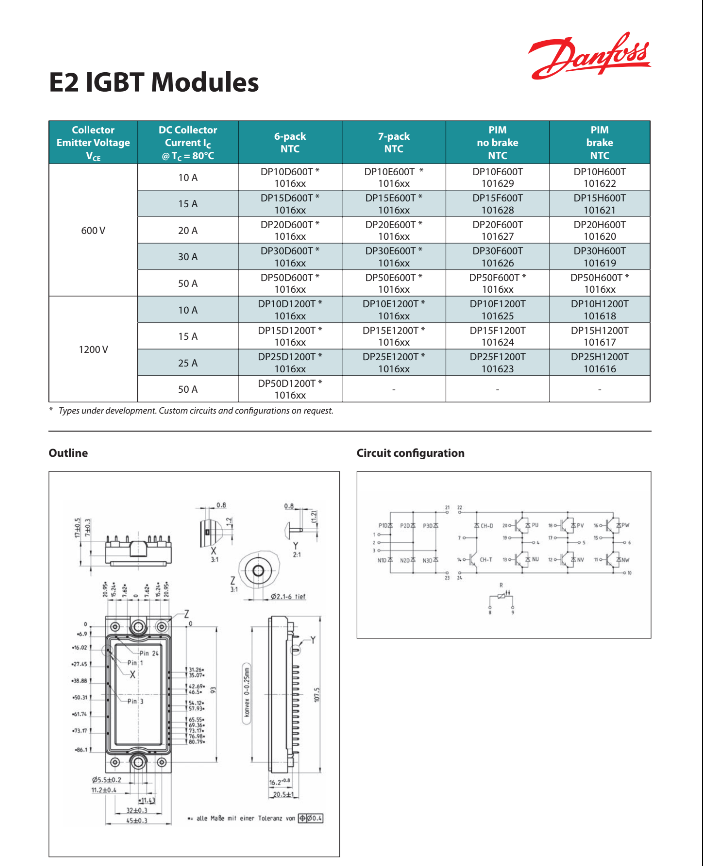

Danfoss E2 IGBT Modules technical specifications and circuit configuration diagram for DP15H1200
DP15H1200 power modules assortment from The Component Centre showing various black and white electronic components
Danfoss E2 IGBT Modules technical specifications and circuit configuration diagram for DP15H1200

DP15H1200 1200V 15A IGBT Module

Regular price Rs.17,000.00 Sale price Rs.16,500.00
3% OFF
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
DP15H1200 power modules assortment from The Component Centre showing various black and white electronic components
This item: DP15H1200 1200V 15A IGBT Module
Regular price Rs.17,000.00 Sale price Rs.16,500.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.20,910.00 PKR Sale total price Rs.20,185.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
DP15H1200 power modules assortment from The Component Centre showing various black and white electronic components

DP15H1200 1200V 15A IGBT Module

Rs.16,500.00

DP15H1200 1200V 15A IGBT Module

The DP15H1200 is an IGBT module rated at 1200V and 15A, designed for high-power switching applications in industrial and energy systems. It supports efficient power conversion in motor drives, solar inverters, electric vehicle systems, and traction equipment. This module uses trench gate technology to ensure low switching losses and thermal stability during continuous operation.

The DP15H1200 1200V 15A IGBT module features a compact layout with PressFIT solderless terminals for fast, lead-free mounting. It includes a pre-applied thermal interface material (TIM) to improve heat dissipation, allowing safe operation in high-temperature environments. This module supports high-frequency switching, making it suitable for systems that require precise motor control and energy conversion.

Applications include EV power modules, renewable energy inverters, UPS systems, and industrial drives. Its rugged design allows for integration into systems exposed to voltage transients, load variation, and mechanical vibration, supporting long-term reliability and low maintenance.

Key Specs

Product: DP15H1200 Voltage Rating: 1200V Current Rating: 15A Technology: Trench IGBT with PressFIT Terminals Thermal Interface: Pre-Applied TIM Switching: High-Frequency Capability Mounting: Lead-Free, Solderless (PressFIT) Applications: EV Modules, Solar Inverters, Industrial Drives, Traction Systems Operating Conditions: Suitable for Harsh Environments Compliance: RoHS Compatible
