BAT54 30 V, 200 mA SOT‑23 Schottky Diode
Regular price
Rs.15.00
Sale price
Rs.25.00
BAT54 Schottky Diode

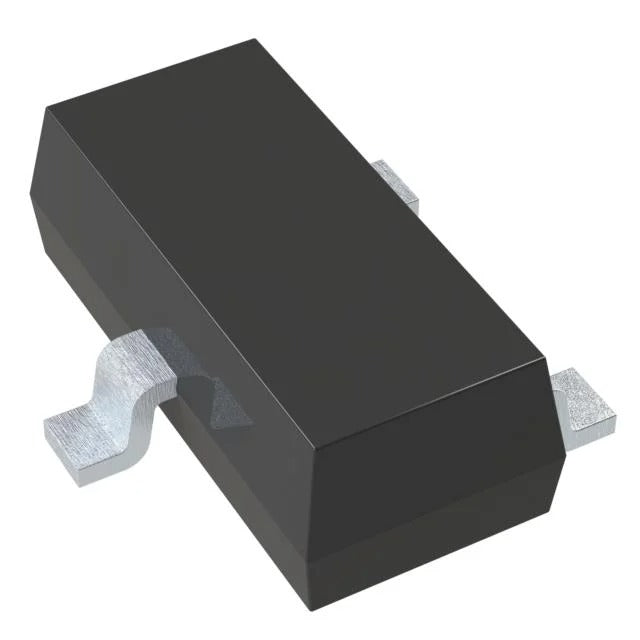

The BAT54 Schottky Diode is a surface-mount diode designed for efficient switching and power control in compact electronic circuits. It has a reverse voltage rating of 30 V and supports a forward current of 200 mA, with a forward voltage drop ranging from 0.3 V to 0.8 V. Its SOT-23 package makes it suitable for high-density PCB layouts in mobile, industrial, and automotive applications.
The diode provides fast switching performance and a low reverse recovery time, which is essential in high-speed circuits. Its integrated guard ring improves protection against electrostatic discharge (ESD), enhancing reliability in demanding operating conditions. BAT54 is widely used in signal routing, voltage clamping, DC-DC converters, and switching regulators.
The BAT54 is fully RoHS-compliant and meets AEC-Q101 standards, making it suitable for industrial and commercial electronics. Its low capacitance, minimal energy loss, and compact size make it a practical choice for efficient power management and high-density circuit designs.
For more detailed information, please refer to the official BAT54 datasheet: BAT54 Datasheet
Key Specs
| Parameter | Specification |
|---|---|
| Diode Type | Schottky Barrier Diode (surface-mount) |
| Package | SOT-23 (TO-236AB) |
| Reverse Voltage (V_R) | 30 V |
| Forward Continuous Current (I_F) | 200 mA |
| Forward Voltage Drop (V_F) | 0.3 V – 0.8 V |
| Reverse Leakage Current (I_R) | ~2 µA @ 25 V |
| Reverse Recovery Time (t_rr) | ~5 ns |
| Surge Forward Current (I_FSM) | up to ~600 mA (non-repetitive) |
| Operating / Junction Temperature Range | –65 °C to +150 °C |
| Compliance / Standards | RoHS compliant, PN guard ring for ESD protection, AEC-Q101 qualified variants |
