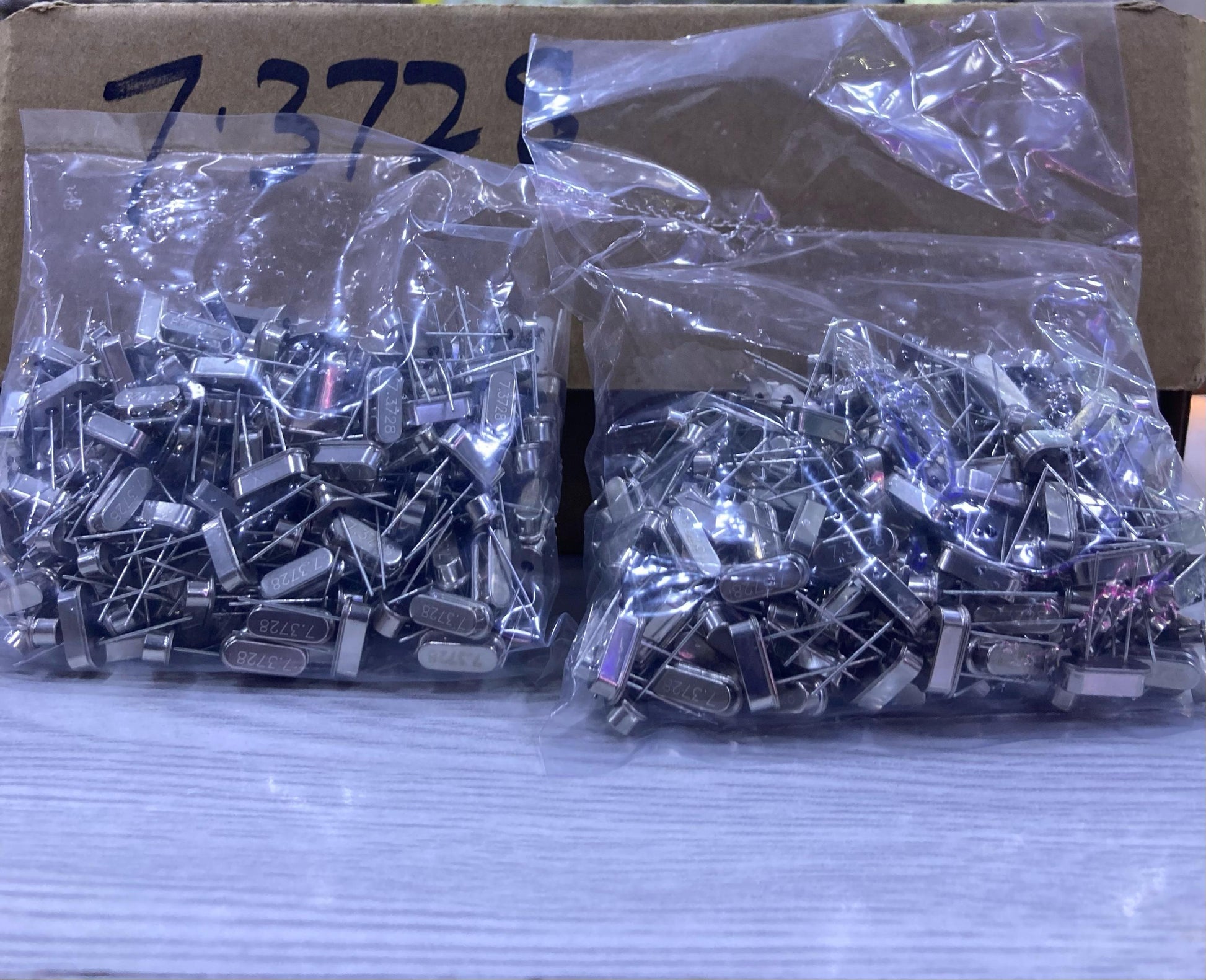

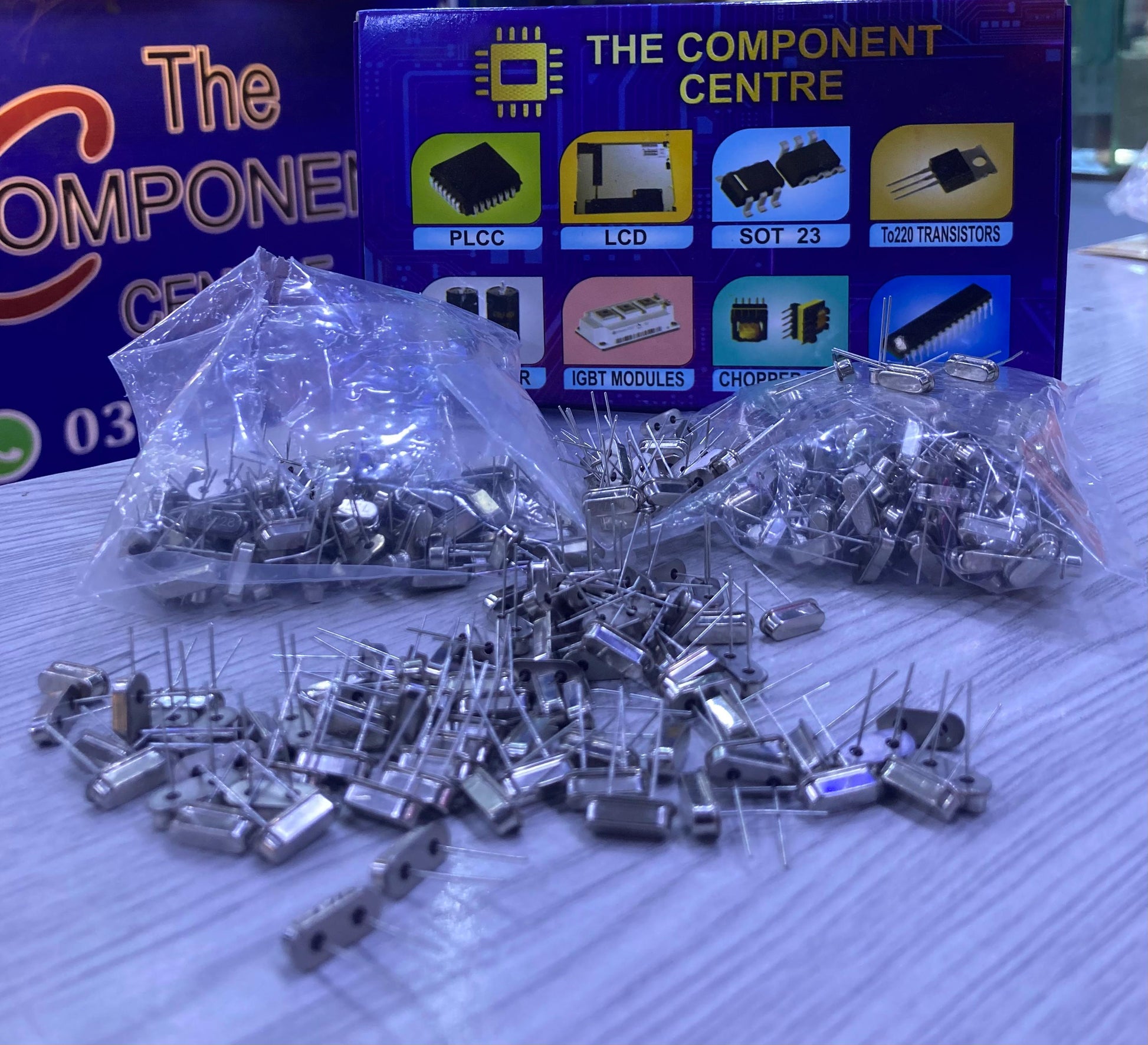

7.3728 MHz Quartz Crystal

7.3728 MHz Quartz Crystal

The 7.3728 MHz Quartz Crystal is an essential component in various electronic applications, known for its precision and reliability. Quartz crystals are widely used in oscillators, timers, and frequency references due to their ability to maintain a stable frequency over time and under varying environmental conditions.

This particular frequency, 7.3728 MHz, is significant in the realm of communication systems. Many microcontrollers and digital devices utilize this frequency for efficient timing and synchronization. The 7.3728 MHz frequency corresponds to a specific oscillation rate that is advantageous for applications requiring consistent and accurate timing signals.

When designing electronic circuits, particularly in telecommunications and consumer electronics, selecting the right quartz crystal is crucial. The 7.3728 MHz Quartz Crystal offers a good balance between performance and cost, making it a popular choice among engineers and hobbyists alike.

In addition to communication technologies, the 7.3728 MHz Quartz Crystal is also employed in other applications such as signal processing, arts and crafts electronics, and precision measurement devices. Each application may require specific characteristics such as load capacitance and tolerance, which are all critical factors when selecting a quartz crystal.

The construction of a quartz crystal involves a thin slice of quartz cut to a specific shape and size. This is then encased to protect it from mechanical stress and environmental factors. The quality of the crystal is paramount; low-quality crystals can lead to frequency drift, affecting the performance of the devices they are integrated into.

It’s essential to consider the operating temperature range when using a 7.3728 MHz Quartz Crystal. Temperature fluctuations can impact the frequency stability. Many manufacturers offer temperature-compensated crystals to mitigate these effects, ensuring reliable performance within designated temperature limits.

In modern electronic design, PCB layout considerations are also critical for optimal performance of the 7.3728 MHz Quartz Crystal. Proper placement and routing can minimize interference and maintain signal integrity, leading to better overall circuit performance.

Engineers designing with the 7.3728 MHz Quartz Crystal often utilize simulation tools to predict behavior in various scenarios, allowing for fine-tuning of the overall design. Simulation can identify potential issues related to frequency stability, signal integrity, and power consumption well before physical prototypes are produced.

Furthermore, the 7.3728 MHz Quartz Crystal is often included in various integrated circuits, alongside other features that enhance its application. For example, some microcontroller families include built-in oscillators that can use external quartz crystals to improve frequency accuracy and stability.

Additionally, manufacturers provide datasheets for the 7.3728 MHz Quartz Crystal that detail important specifications such as equivalent series resistance (ESR), load capacitance, and frequency tolerance. These parameters allow engineers to select the appropriate crystal for their specific application needs reliably.

In conclusion, the 7.3728 MHz Quartz Crystal is an indispensable element in the toolbox of anyone involved in electronic design or development. Its unique properties make it suitable for a variety of applications, from professional telecommunications to DIY electronics projects. As technology advances, the role of quartz crystals like the 7.3728 MHz variant will continue to remain vital in ensuring that devices operate correctly and efficiently.
