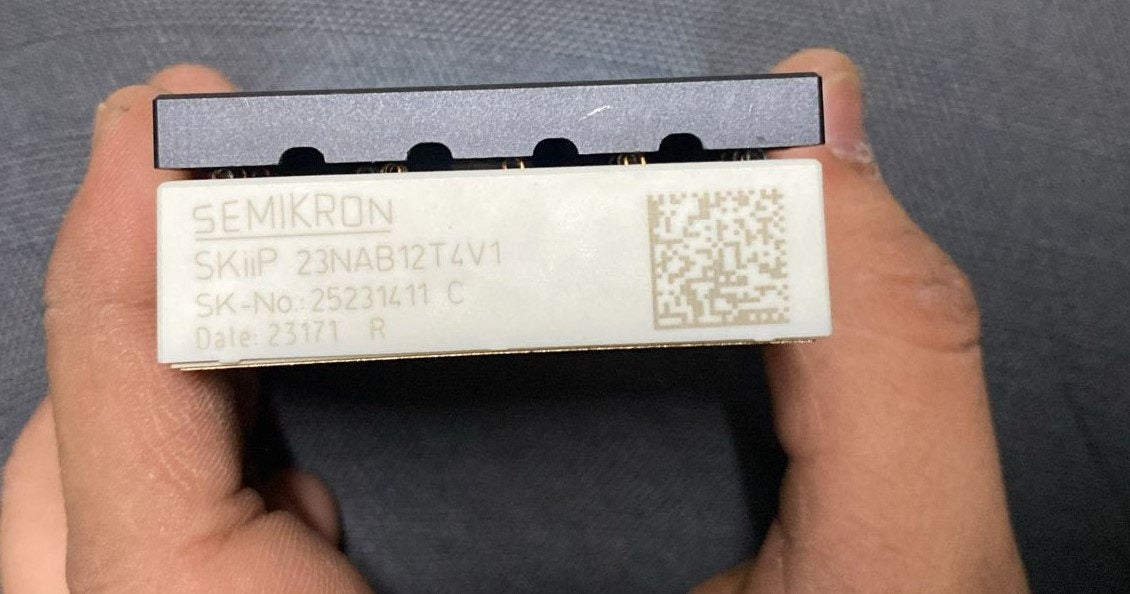

SKiiP 23NAB12T4V1 IGBT Power Module
The SKiiP 23NAB12T4V1 is a robust IGBT power module from SEMIKRON's MiniSKiiP® 2 NAB series, engineered to deliver exceptional performance and reliability in demanding power electronics applications. Designed for industrial and commercial use, this module integrates advanced Trench 4 IGBT technology with CAL technology freewheeling diodes, ensuring efficient and durable operation.

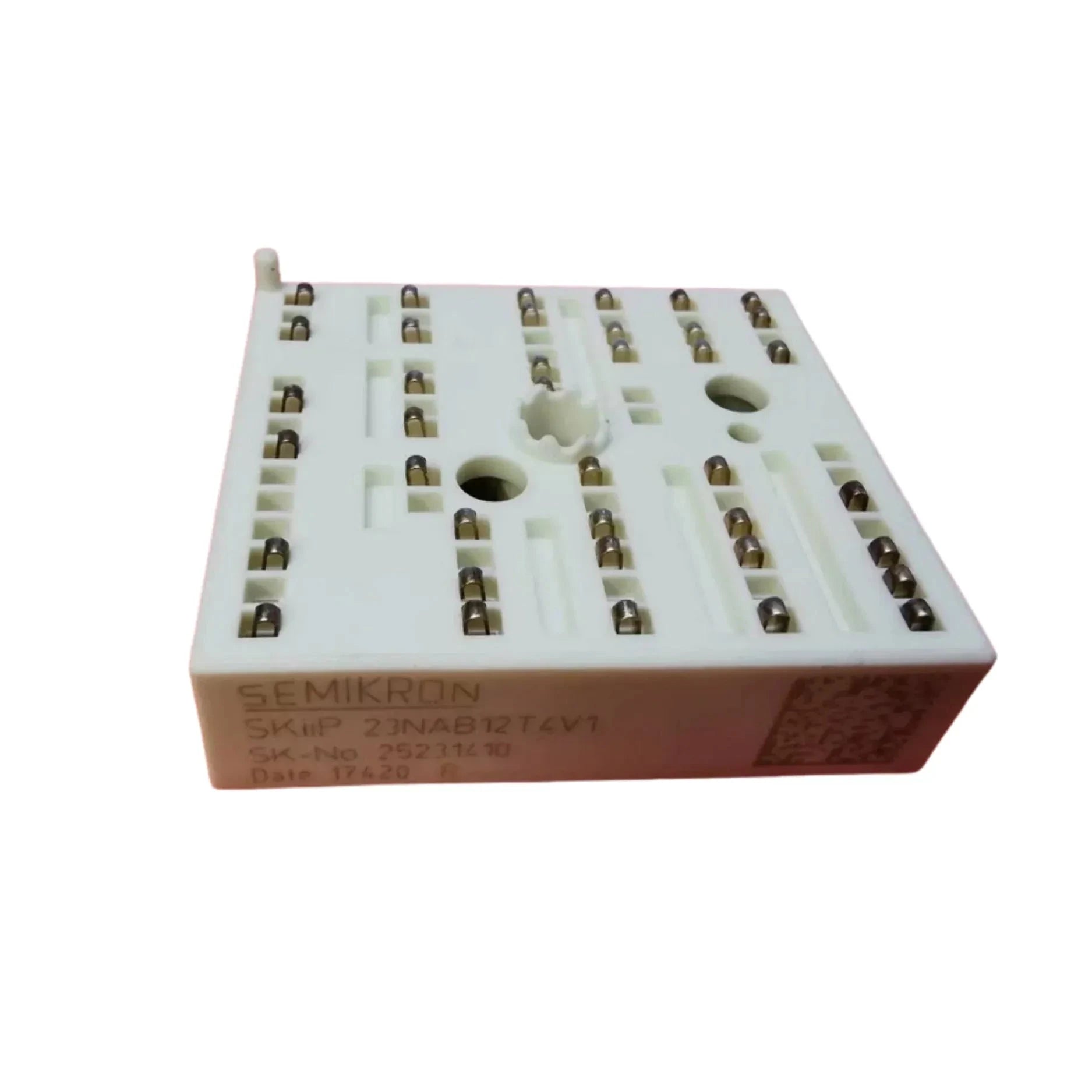

This module is ideal for applications such as inverters up to 14 kVA and motor drives with typical motor powers up to 7.5 kW. Its compact MiniSKiiP® 2 housing and press-fit electrical mounting facilitate easy integration into various systems. The module's design includes highly reliable spring contacts for electrical connections, minimizing the risk of failure due to mechanical stress.
The SKiiP 23NAB12T4V1 offers several benefits, including low conduction and switching losses, which contribute to high system efficiency. Its soft-switching CAL technology diodes reduce electromagnetic interference, enhancing system stability. With a maximum case temperature of 125°C and a recommended operating junction temperature range of -40°C to +150°C, the module is designed to operate reliably under harsh conditions.
Key Specifications:
| Feature | Specification |
|---|---|
| Module Type | Seven Pack |
| IGBT Technology | Trench 4 |
| Freewheeling Diodes | CAL Technology |
| Collector-Emitter Voltage (VCE) | 1200 V |
| Continuous Collector Current (IC) | 25 A |
| Saturation Voltage (VCE(sat)) | 1.85–2.10 V |
| Gate-Emitter Threshold Voltage (VGE(th)) | 5.3–6.3 V |
| Switching Time (td(on)) | 28 ns |
| Turn-Off Time (td(off)) | 295 ns |
| Operating Junction Temperature (Tj) | -40°C to +150°C |
| Maximum Case Temperature (Tc) | 125°C |
| Isolation Voltage | 2500 V AC (50 Hz, 1 min) |
| Module Terminal Current (It(RMS)) | 40 A (per terminal) |
| UL Recognition | E63532 |
For more detailed information, please refer to the SEMIKRON datasheet
