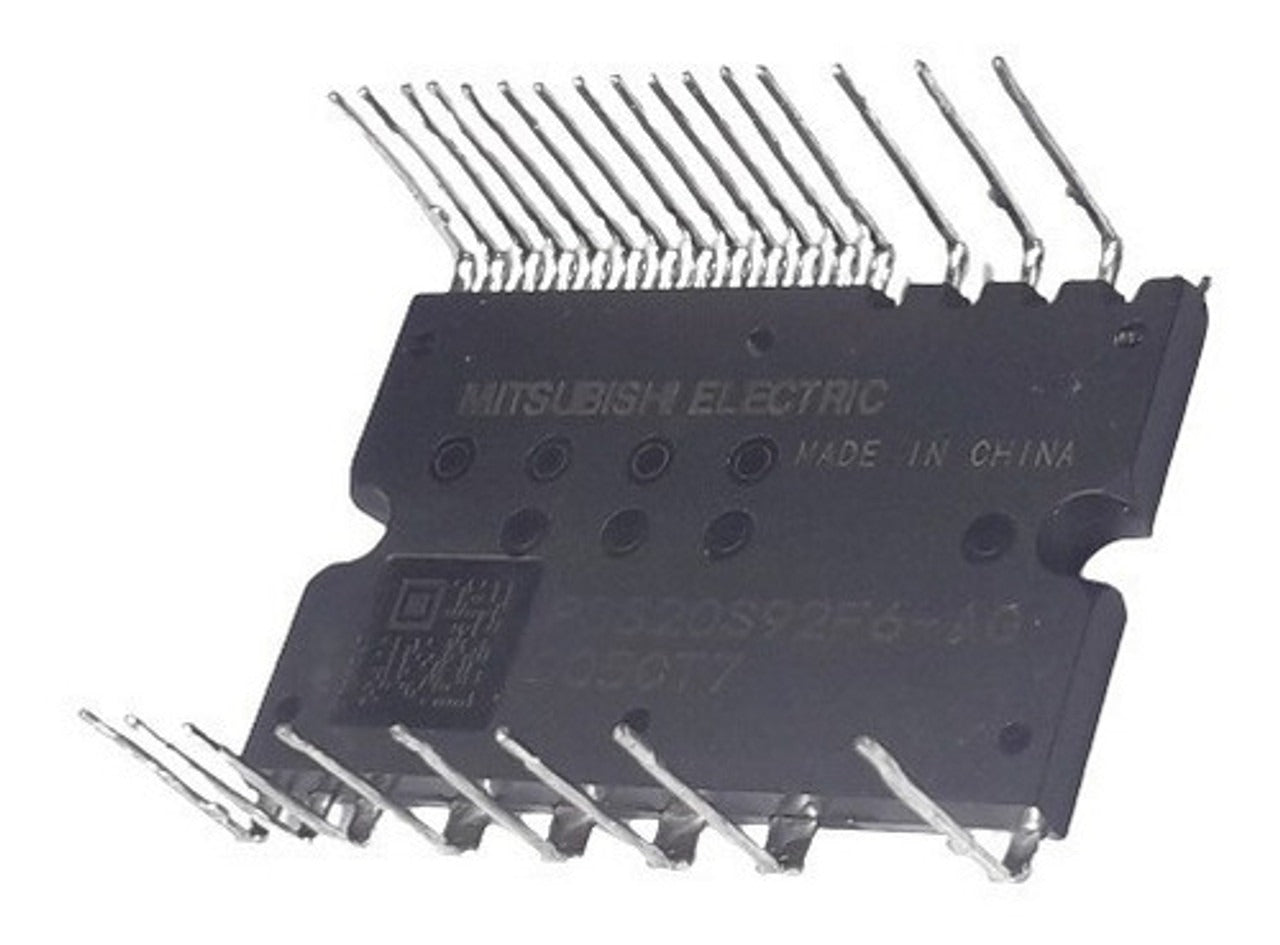

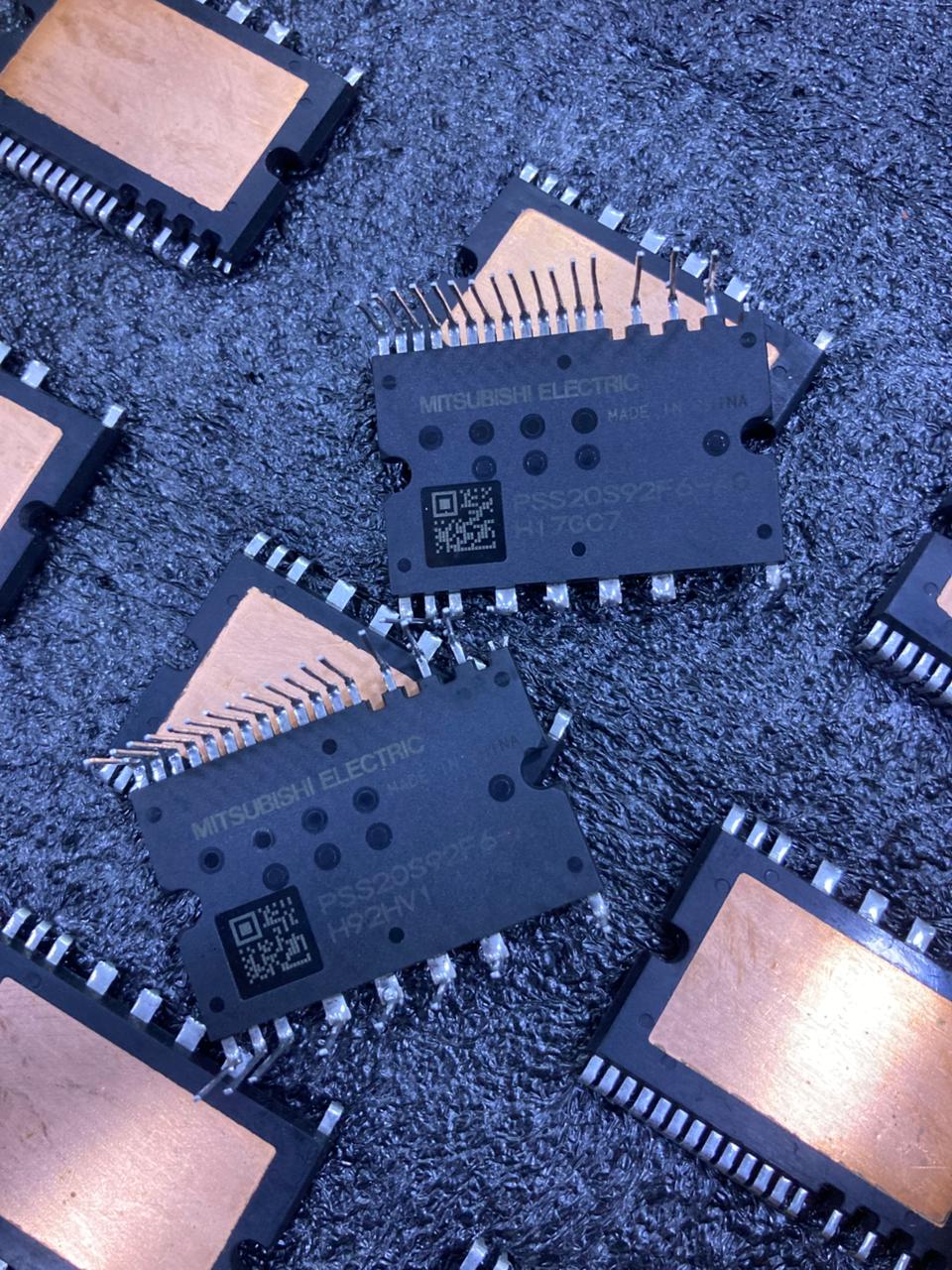

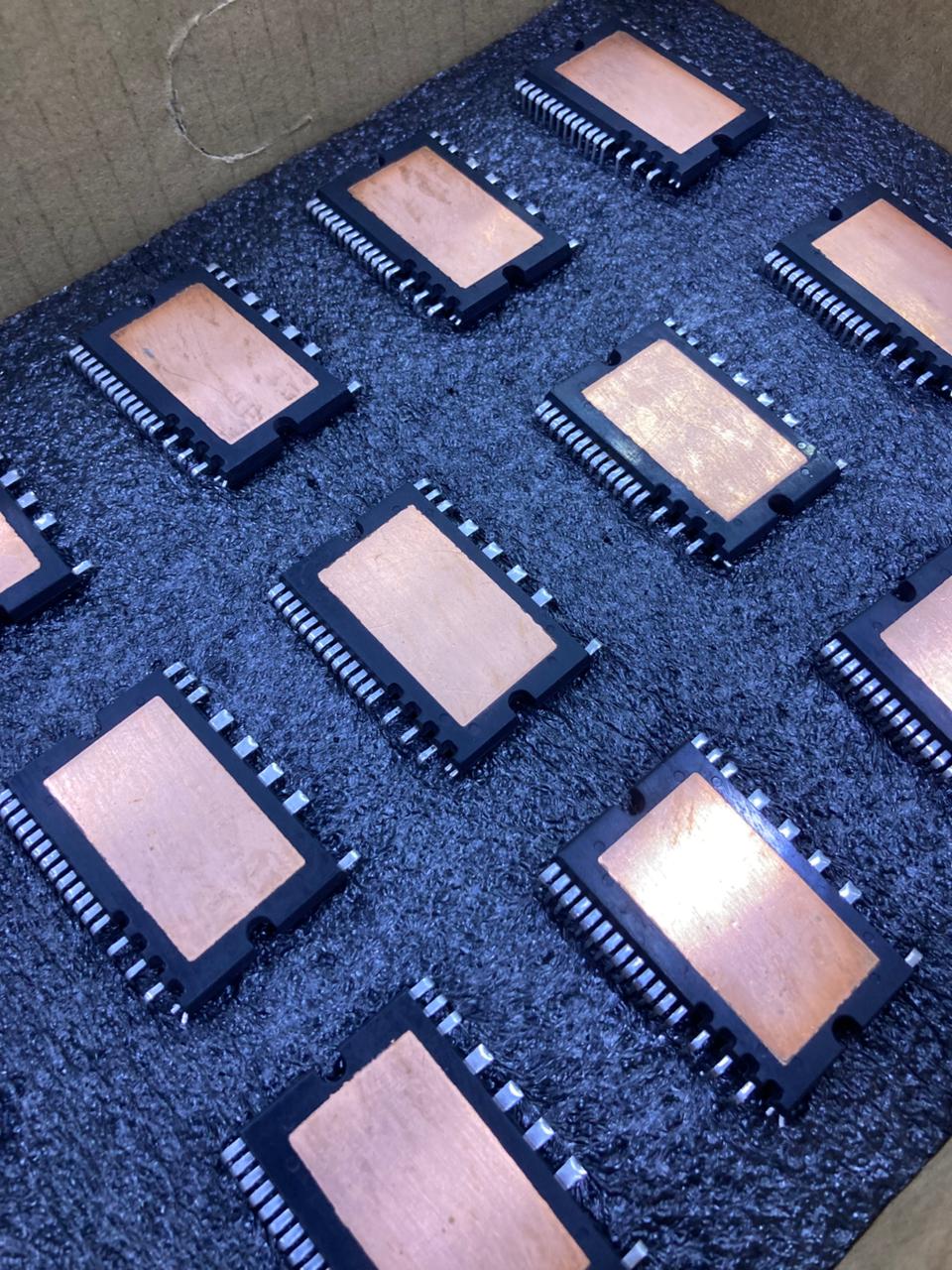

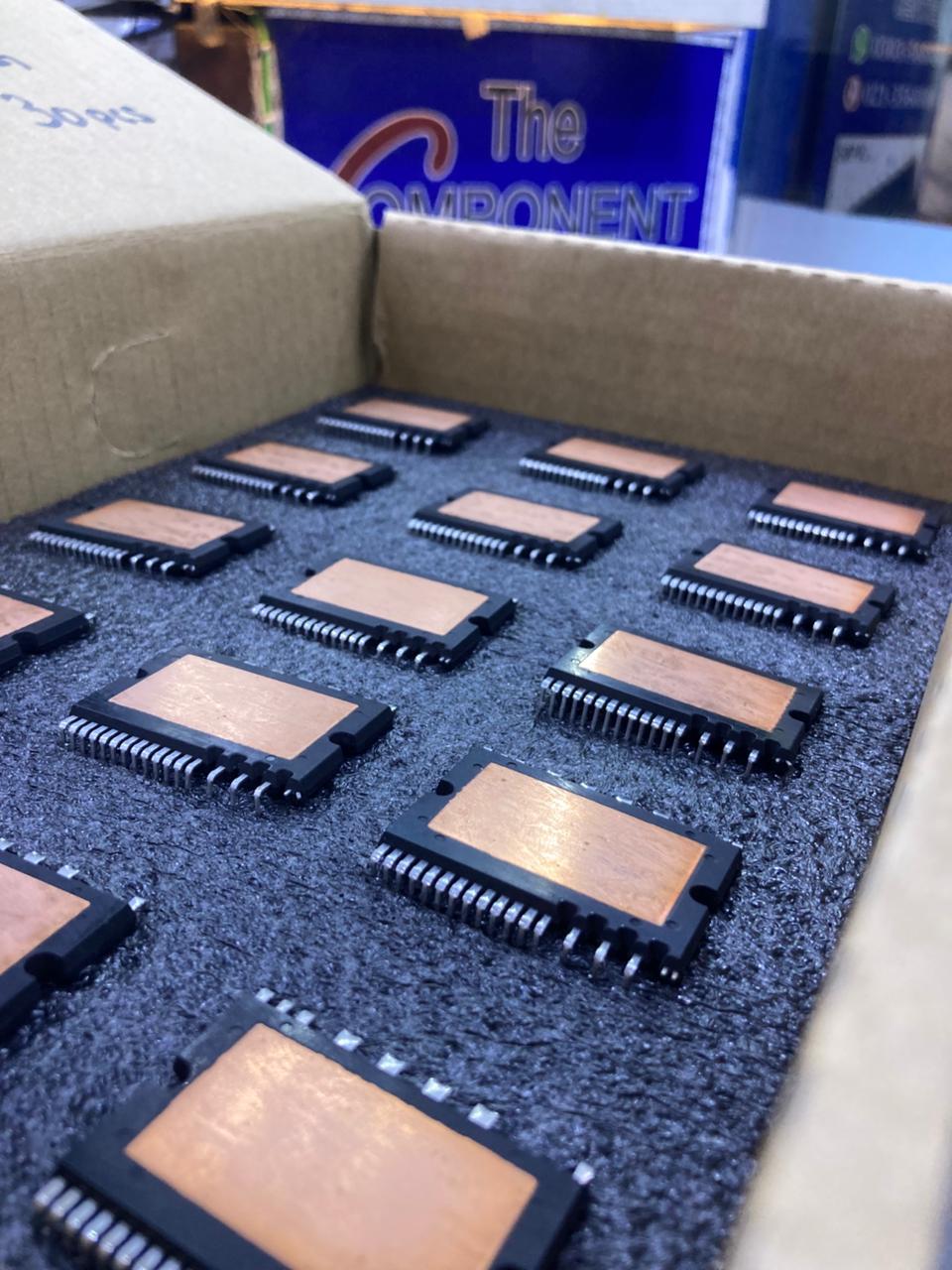

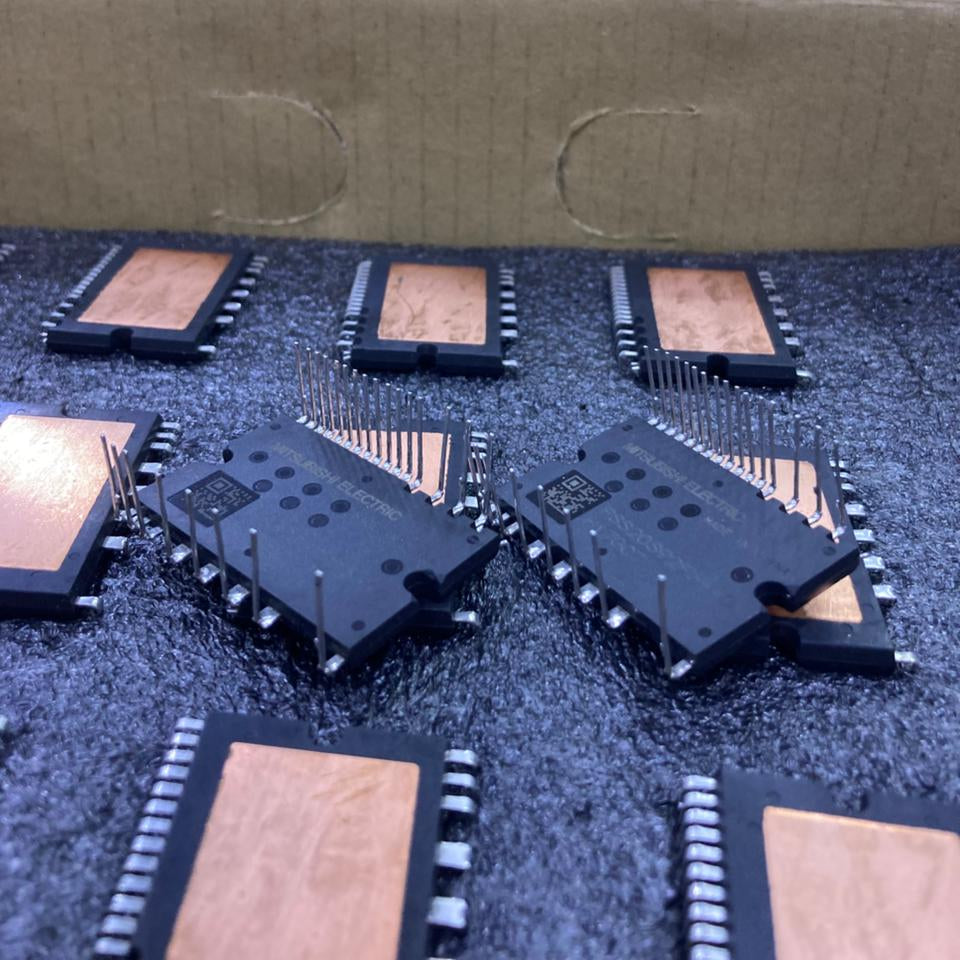

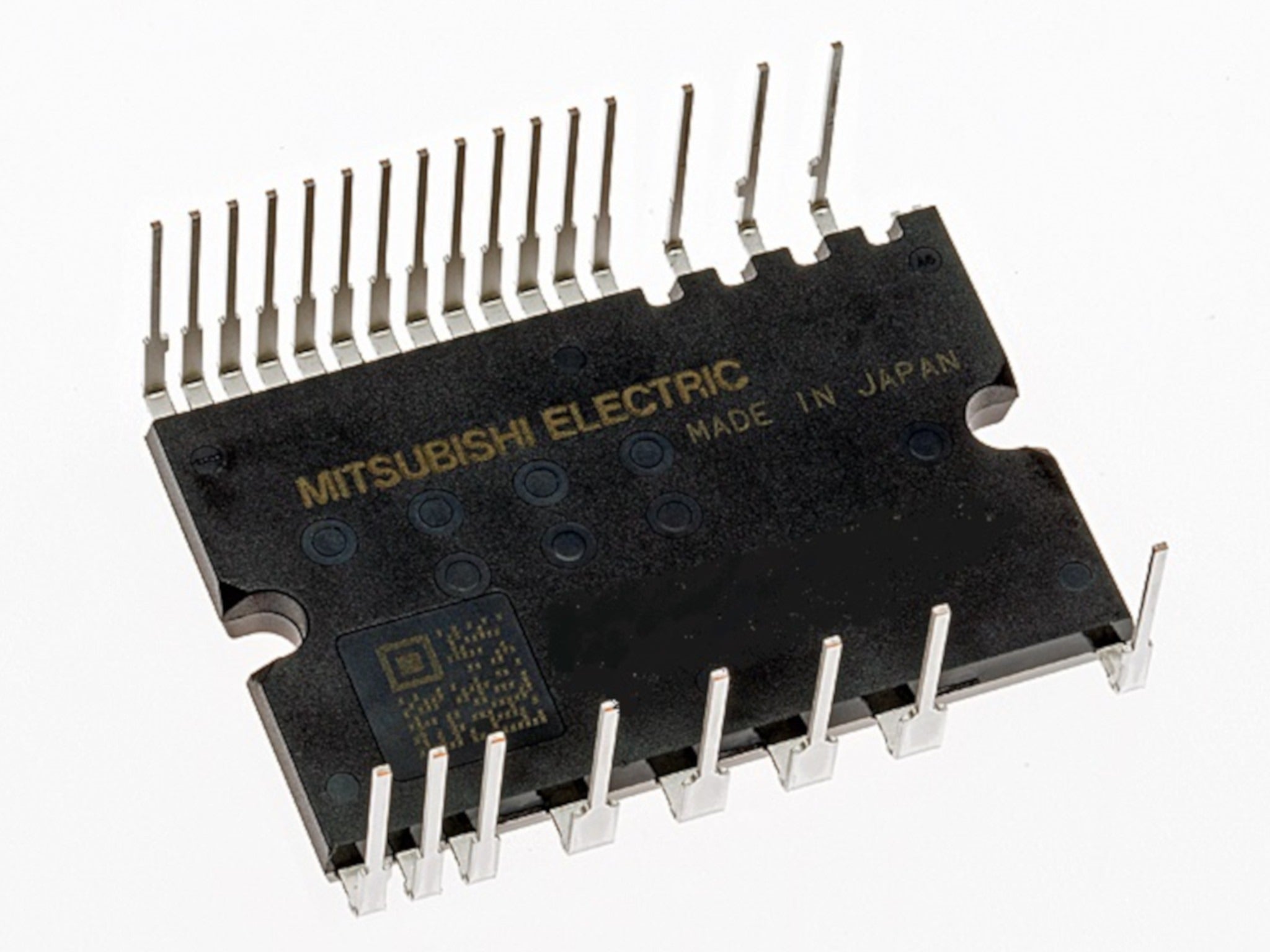

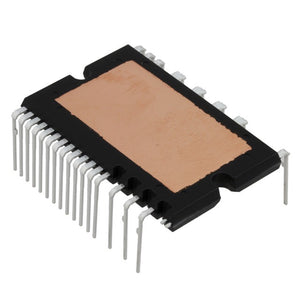

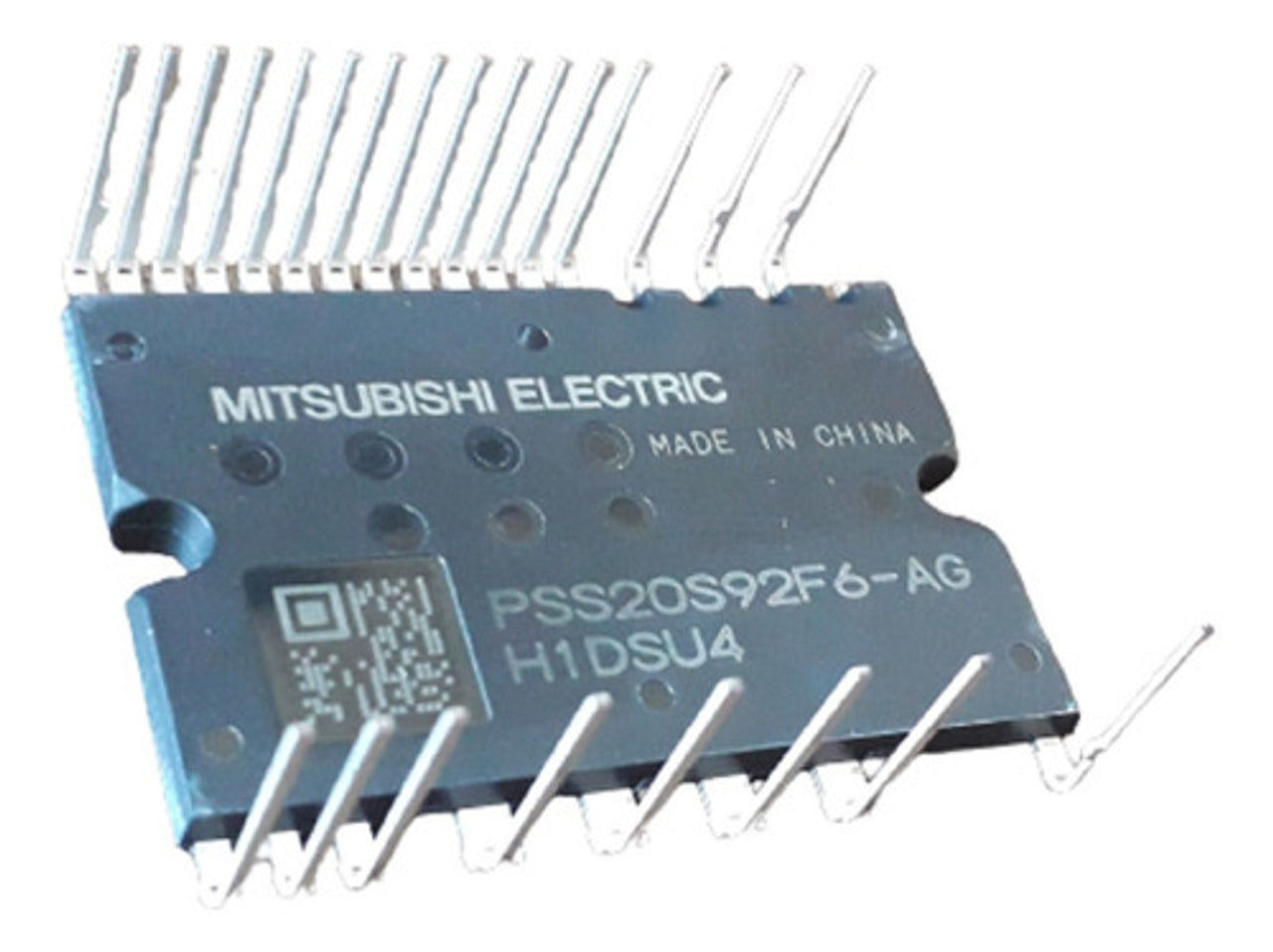

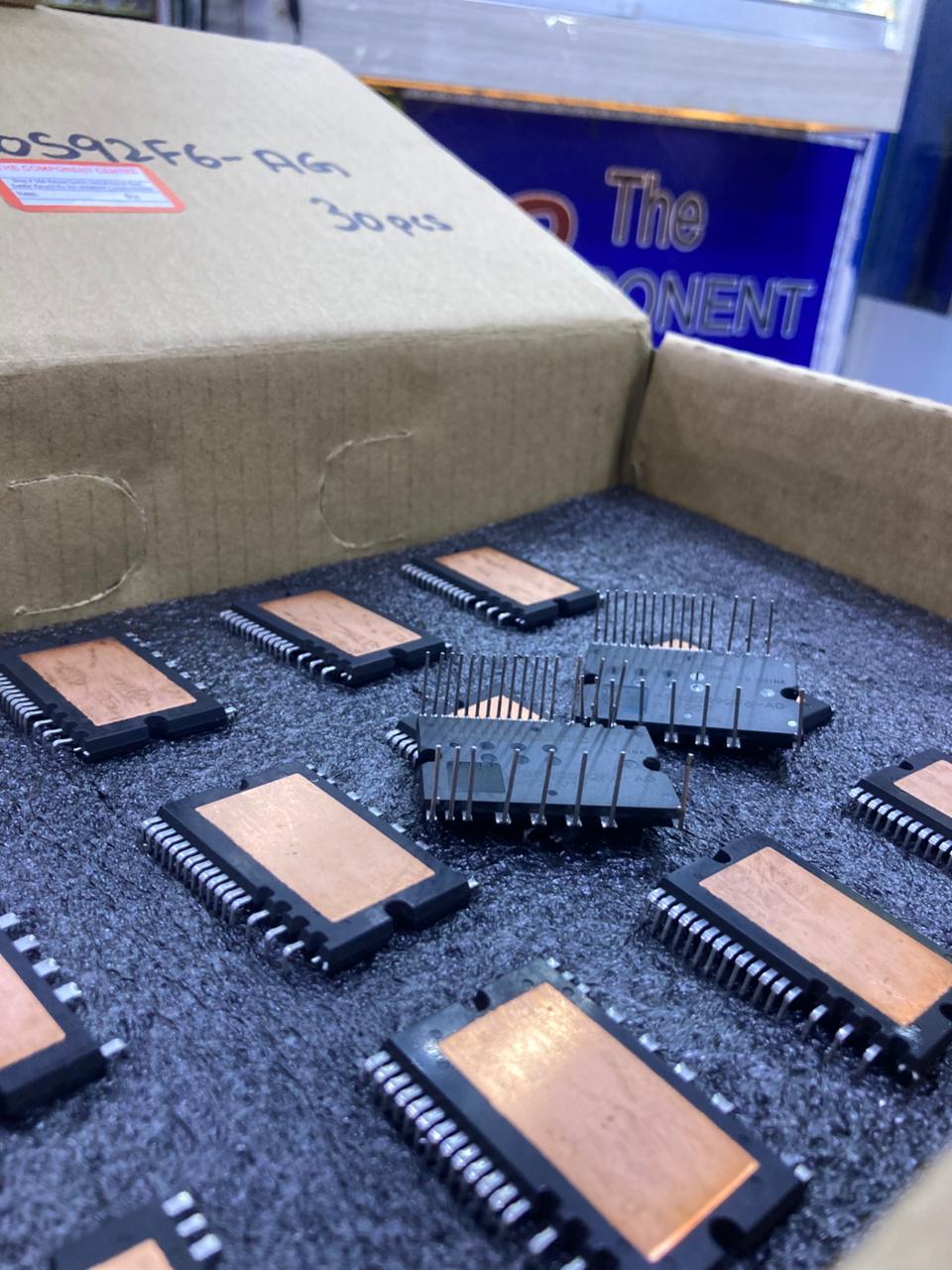

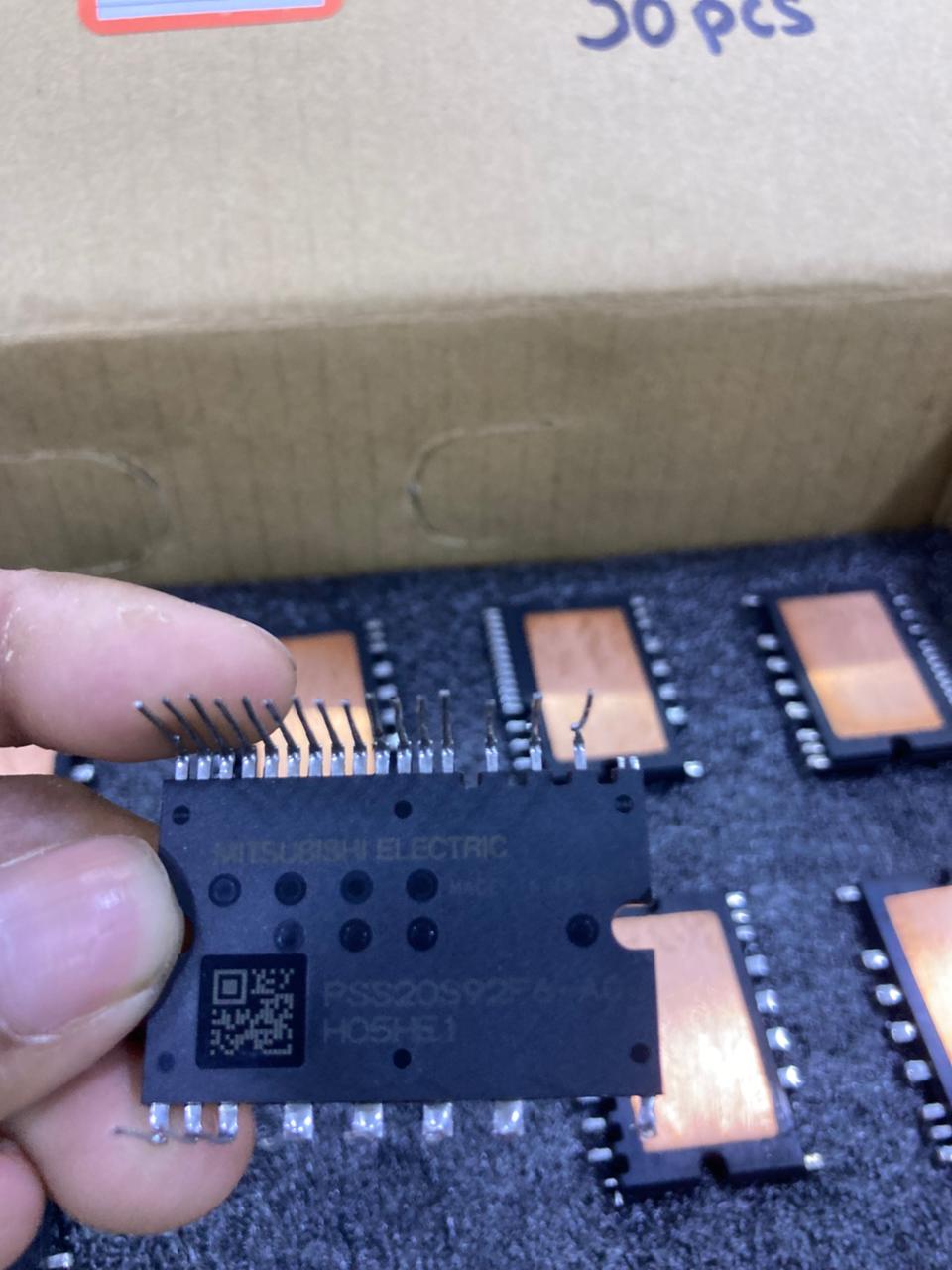

PSS20S92F6-AG Intelligent Power Module
The PSS20S92F6-AG from Mitsubishi Electric is a cutting-edge Intelligent Power Module (IPM) designed to meet the demanding requirements of modern power electronics. Engineered with advanced 7th generation CSTBT IGBTs, this module offers a collector-emitter voltage (V_CES) of 600V and a continuous collector current (I_C) of 20A, making it ideal for high-efficiency, high-speed switching applications. Its compact Super Mini DIPIPM package (24 x 38 mm) ensures easy integration into space-constrained systems, while its robust design guarantees reliable performance across a wide range of industrial and commercial applications.
Incorporating a comprehensive suite of protection features, the PSS20S92F6-AG enhances system reliability and longevity. The module includes over-temperature protection, short-circuit protection, and undervoltage lockout, safeguarding both the module and the connected system. Additionally, it provides fault signaling for short-circuit, undervoltage, and over-temperature conditions, facilitating proactive maintenance and minimizing downtime. The built-in temperature output function offers real-time thermal monitoring, enabling efficient thermal management and preventing overheating in demanding environments.
Tailored for three-phase DC/AC inverter applications, the PSS20S92F6-AG is well-suited for driving motors in appliances such as air conditioners, washing machines, refrigerators, dishwashers, fans, and pumps. Its high thermal conductivity insulation and integrated driver circuits reduce electromagnetic interference and thermal stress, ensuring smooth operation and extended service life. Whether used in industrial motor drives or commercial HVAC systems, this module delivers exceptional performance, durability, and efficiency, making it a preferred choice for engineers and system designers seeking reliable power solutions.
Key Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 600 V |
| Continuous Collector Current (I_C) | ±20 A |
| Isolation Voltage (V_iso) | 1500 Vrms |
| Operating Junction Temperature (T_j) | 150°C |

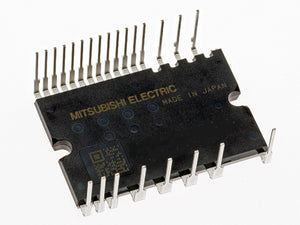

| Package Type | Super Mini DIPIPM |
| Dimensions (L x W) | 24 x 38 mm |
| Protection Features | Over-temperature, Short-circuit, Undervoltage Lockout |
| Fault Signaling | Yes |
| Temperature Output Function | Yes |
| UL Recognition | UL1557 File E80276 |
| Applications | Air conditioners, Washing machines, Refrigerators, Dishwashers, Fans, Pumps |
For more detailed information, please refer to the Mitsubishi Electric PSS20S92F6-AG datasheet.
