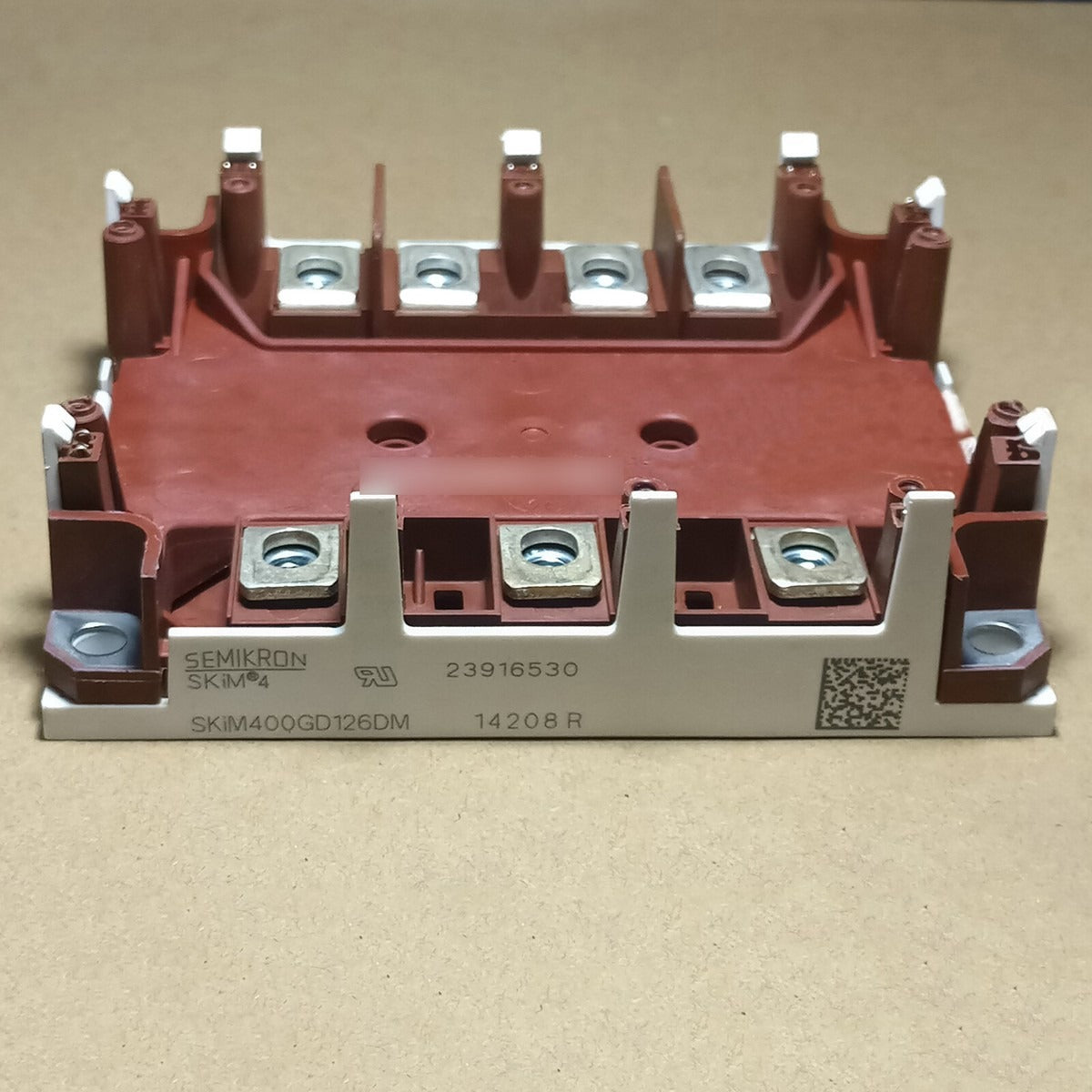

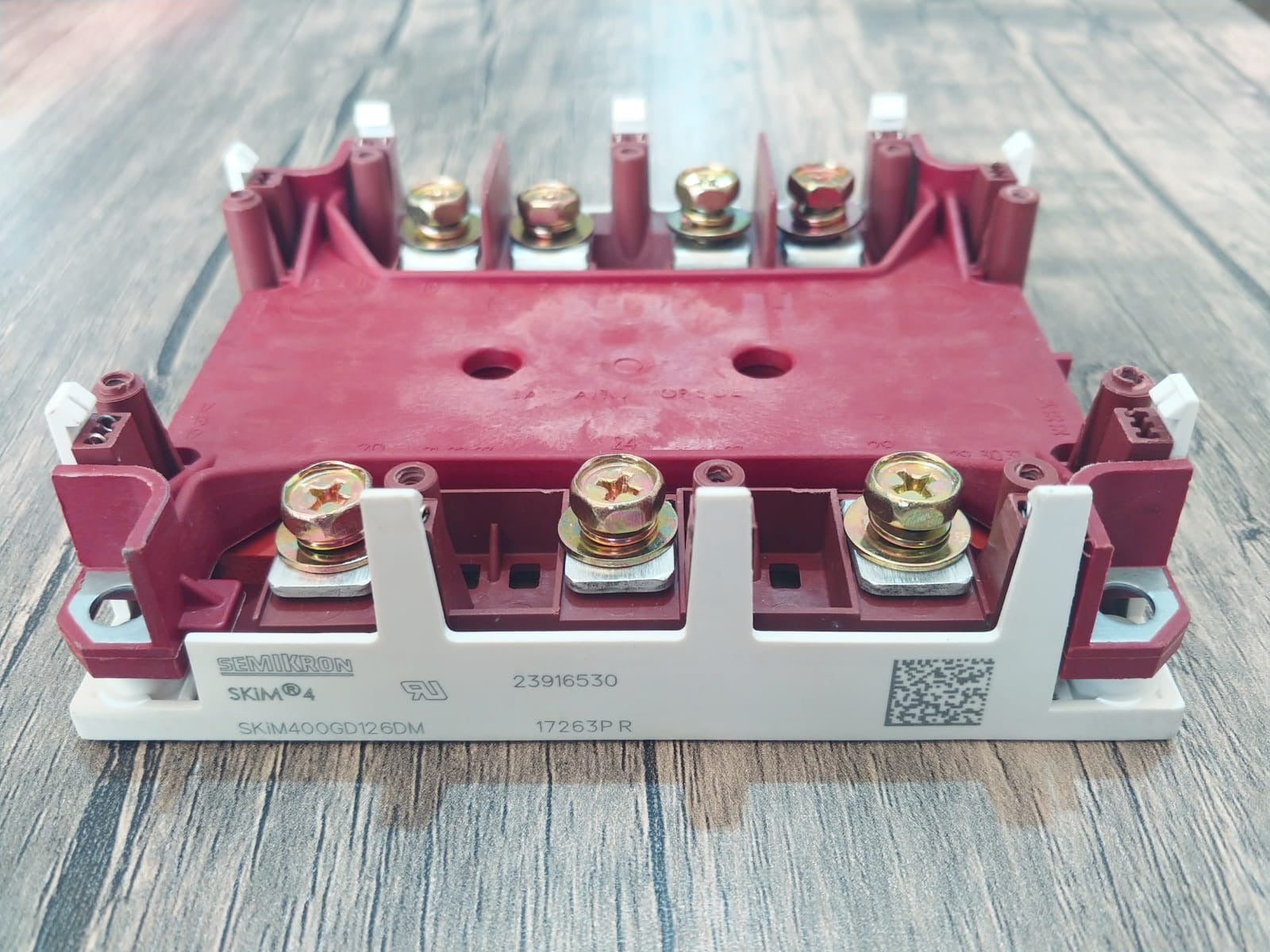

Semikron SKiM400GD126DM IGBT Power Module
The Semikron SKiM400GD126DM is an IGBT module designed for industrial and commercial power electronics applications. It uses trench gate technology with a field stop layer to provide reliable switching performance and efficient thermal operation. The module is built to handle high currents and voltages while maintaining stable operation.
The SKiM400GD126DM features low-inductance packaging, fast-recovery diodes, and a pressure contact system to support effective thermal management. Its spring contact system allows secure connections with driver PCBs, simplifying integration into three-phase inverters, motor drives, and power supply systems.
This module is suitable for three-phase inverters, motor control, and switched-mode power supplies. It offers a balance of current handling, voltage rating, and thermal performance for industrial and commercial applications. For detailed specifications, please refer to the Semikron SKiM400GD126DM datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Module Type | SKiM 4 |
| Topology | Sixpack |
| Chip Technology | IGBT 3 (Trench) |
| Collector-Emitter Voltage | 1200 V |
| Nominal Collector Current | 300 A |
| Peak Collector Current | 600 A |
| RMS Terminal Current | 400 A |
| Gate-Emitter Voltage | ±20 V |
| Operating Junction Temp. | -40 to +150 °C |
| Storage Temperature | -40 to +125 °C |
| Isolation Voltage | 2500 V AC (1 min) |
| Dimensions (LxWxH) | 123 x 107 x 35 mm |
| Weight | 0.31 kg |
