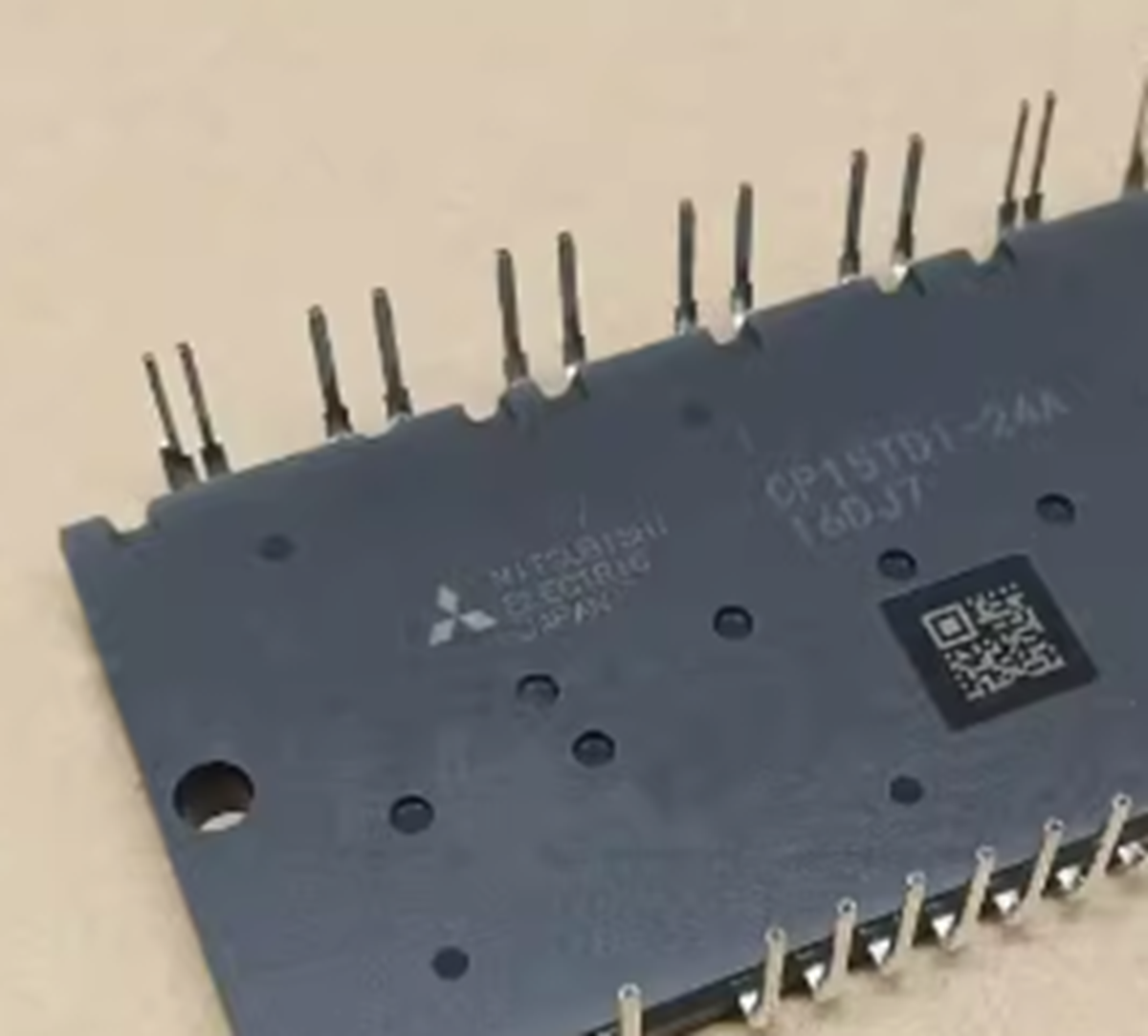

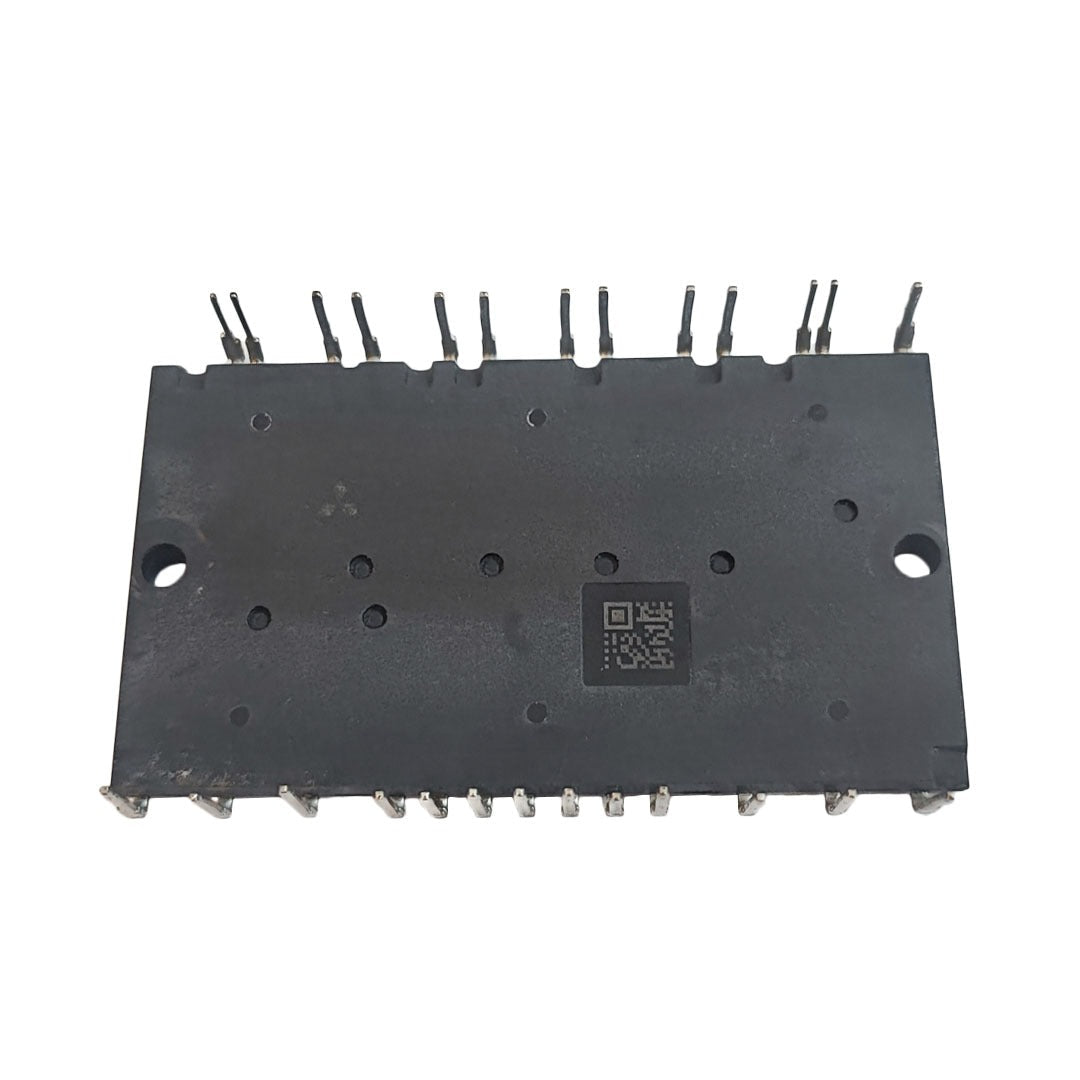

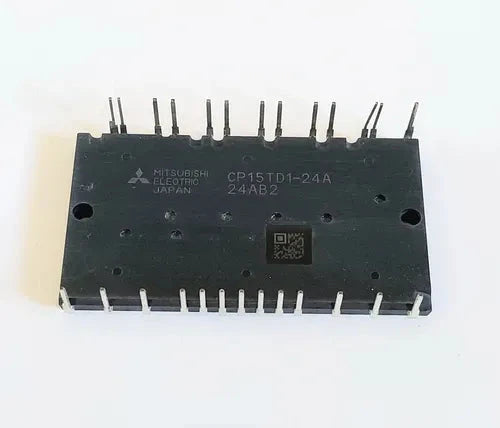

Powerex CP15TD1-24A IGBT Module
The Powerex CP15TD1-24A IGBT module is designed for reliable operation in power electronics applications. It has a maximum collector-emitter voltage of 1200V and a collector current rating of 15A. The module features a low on-state voltage of 2.5V at 15V gate-emitter voltage and 15A collector current, reducing power loss during operation. Its integrated three-phase inverter with brake circuit provides a compact solution for motor control applications.
The module is suitable for AC motor control, servo motors, robotics, and HVAC inverters. Its low-profile DIP-CIB package allows space-efficient integration. An NTC thermistor enables temperature monitoring for thermal management. The open emitter design supports current sensing in each phase leg for easier system diagnostics.
The CP15TD1-24A is Pb-Free and RoHS compliant. Its construction supports continuous operation under industrial and commercial conditions, providing reliable performance for a range of power control systems.
Key Specifications:
| Specification | Value |
|---|---|
| Voltage Rating (Vce) | 1200V |
| Current Rating (Ic) | 15A |
| On-State Voltage (Vce(on)) | 2.5V @ 15V, 15A |
| Power Dissipation | 113W |
| Package Type | 26-DIP Module |
| Operating Temperature | -20°C to 150°C |
| Thermistor | Yes |
| RoHS Compliant | Yes |
| Mounting Type | Through Hole |
For detailed technical information, please refer to the Powerex CP15TD1-24A datasheet.
