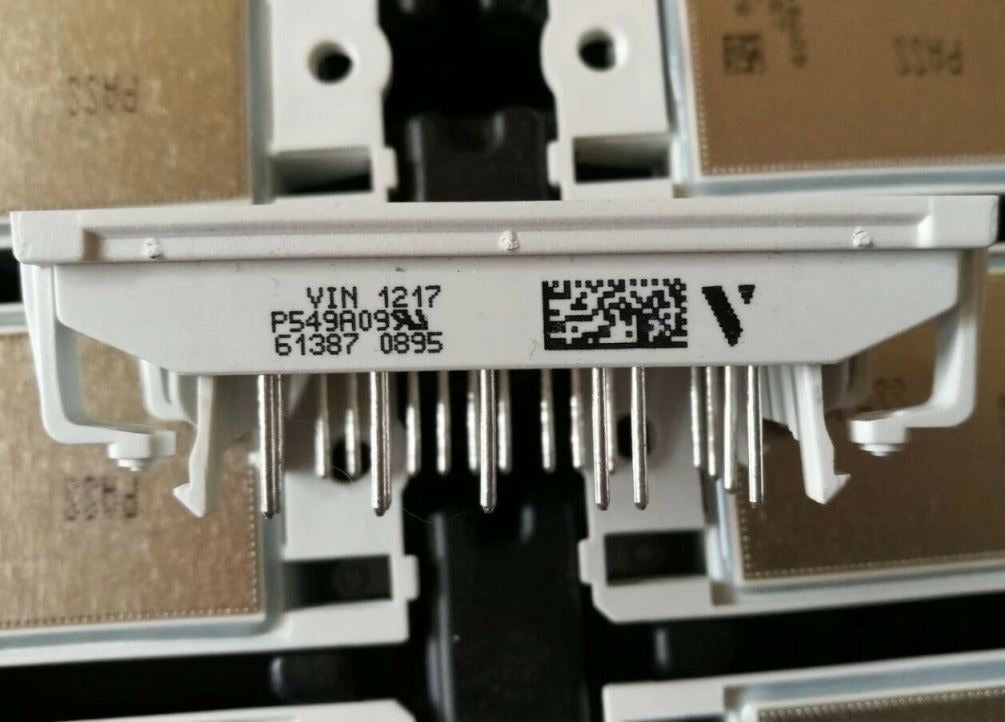

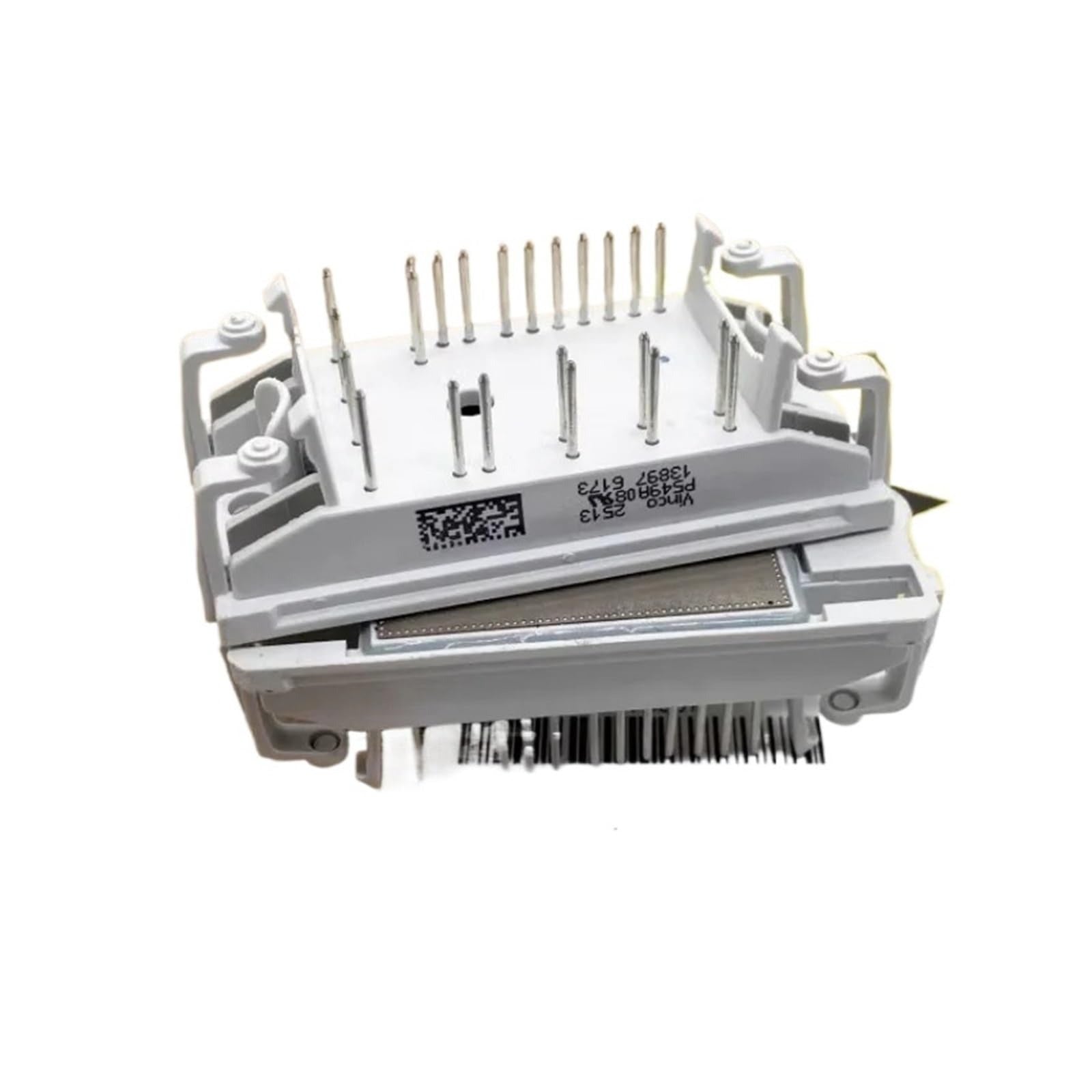

The Vincotech P549A09 (ordering code V23990-P549-A) is a flowPIM power module designed for three-phase inverter and rectifier applications. It integrates inverter transistors and rectifier diodes into a compact clip-in PCB package, making it suitable for use in industrial and embedded drive systems where space is limited. With a voltage rating of 1200 V and current capability of 8 A, it provides the core functionality required in motor drives, servo systems, and other power electronic equipment.
This module uses trench fieldstop IGBT technology to help lower switching losses and maintain stable thermal performance. It is rated for junction temperatures up to 150 °C and can withstand short-circuit conditions and surge currents, ensuring reliable operation even under demanding electrical stresses. These characteristics make it well-suited for environments where durability and stable performance are important.
The clip-in PCB mounting method makes handling straightforward, and an optional brake (BRC) variant is available for applications that require additional functionality. With its balance of electrical capability and mechanical design, the P549A09 supports efficient and dependable operation in everyday industrial use.
Key Specs
| Parameter | Value |
|---|---|
| Module rating | 1200 V / 8 A |
| Collector-emitter breakdown voltage (Vce) | 1200 V |
| Collector current (Ic, Th=80 °C) | 13 A |
| Collector current (Ic, Tc=80 °C) | 16 A |
| Repetitive peak / pulse current | 24 A |
| Power dissipation per IGBT (Th=80 °C / Tc=80 °C) | 35 W / 53 W |
| Rectifier repetitive peak reverse voltage (VRRM) | 1600 V |
| Rectifier DC forward current (Th=80 °C / Tc=80 °C) | 27 A / 37 A |
| Rectifier surge forward current (10 ms) | 220 A |
| Maximum junction temperature | 150 °C |
| Short-circuit withstand time | 10 µs |
| Package | flowPIM 0, clip-in PCB mount |
For full details, please refer to the Vincotech datasheet: Vincotech P549A09 Datasheet (PDF).
