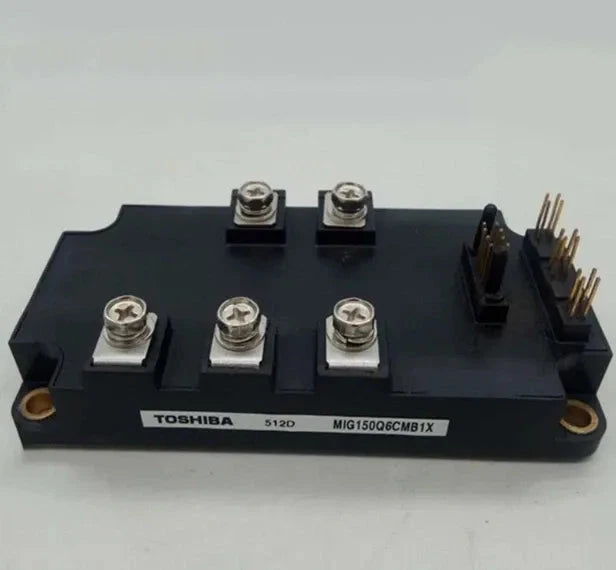

MIG150Q6CMB1X – High-Performance Intelligent Power Module for Industrial Applications
The Toshiba MIG150Q6CMB1X is a state-of-the-art Intelligent Power Module (IPM) engineered to deliver exceptional performance in high-power switching and motor control applications. This module integrates inverter power circuits and control circuits, including IGBT drive units and protection features against short-circuit current, overcurrent, undervoltage, and overtemperature, into a single compact package. This integration simplifies system design and enhances reliability, making it an ideal choice for industrial and commercial applications.
Operating at a voltage rating of 1200V and a current rating of 150A, the MIG150Q6CMB1X is designed to handle demanding power requirements. Its low saturation voltage (VCE(sat)) of 2.4V (typical) ensures efficient energy conversion, while its compact 6-in-1 package facilitates easy integration into various systems. The module's electrodes are isolated from the case, providing enhanced safety and reducing the risk of electrical faults. With a typical weight of 385g, it offers a balance between robustness and compactness, suitable for space-constrained applications.
For more detailed information, please refer to the Toshiba datasheet.
Key Specifications
| Specification | Value |
|---|---|
| Type | Intelligent Power Module (IPM) |
| Technology | Silicon N-Channel IGBT |
| Voltage Rating | 1200V |
| Current Rating | 150A |
| Package Type | 6-in-1 |
| Saturation Voltage (VCE(sat)) | 2.4V (typical) |
| Weight | 385g (typical) |
| Protection Features | Short-circuit, Overcurrent, Undervoltage, Overtemperature |
