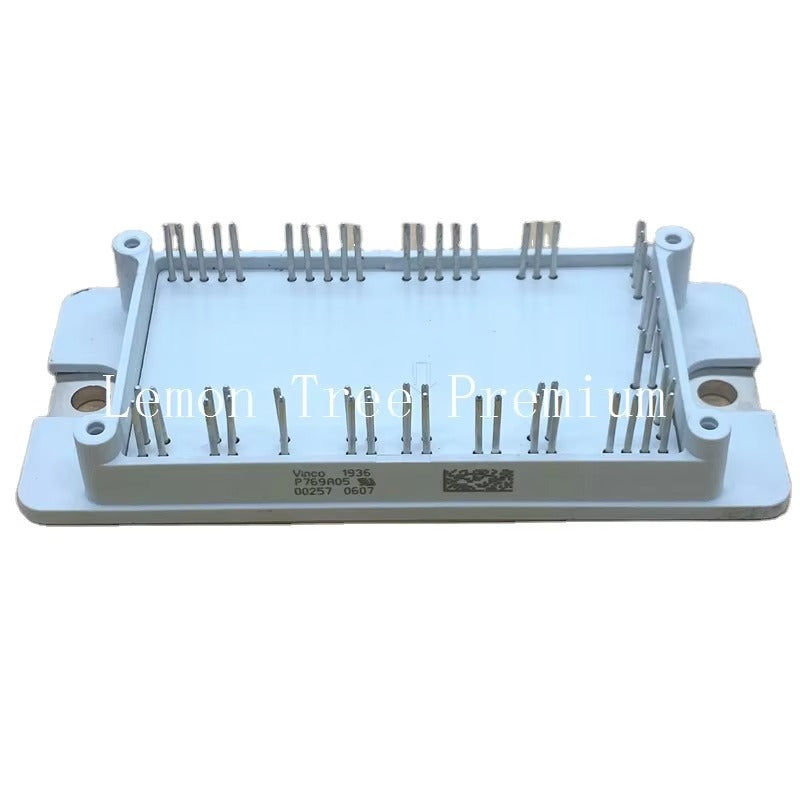

P769A05 IGBT Module
The P769A05 is an Insulated Gate Bipolar Transistor (IGBT) module designed for reliable power switching in industrial and commercial applications. With a current rating of 75 A and a voltage rating of 1200 V, it supports stable performance in demanding environments. Its 56-pin package allows straightforward integration into power electronic systems, suitable for motor drives, power conversion, and renewable energy applications.
This module uses IGBT4 and EmCon4 technology, providing low saturation voltage and reduced switching losses. It includes a three-phase rectifier, brake chopper, and inverter functions, making it suitable for small- to mid-power industrial setups. The module operates over a wide temperature range and features RoHS-compliant construction.
Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | VINCO |
| Part Number | P769A05 |
| Type | IGBT Module |
| Current Rating | 75 A |
| Voltage Rating | 1200 V |
| Package Type | 56-Pin |
| Technology | IGBT4 / EmCon4 |
| Features | Three-phase rectifier, Brake chopper, Inverter |
| Compliance | RoHS Compliant |
| Typical Applications | Industrial drives, Embedded systems, Power conversion, Renewable energy systems |
For more detailed information, please refer to the VINCO datasheet.
