Mitsubishi Electric PSS50S71F6 600V, 50A Intelligent Power Module
Regular price
Rs.0.00

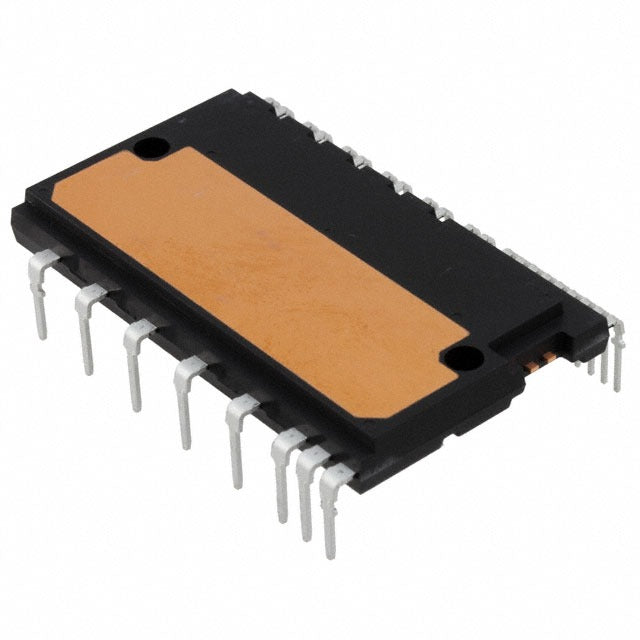

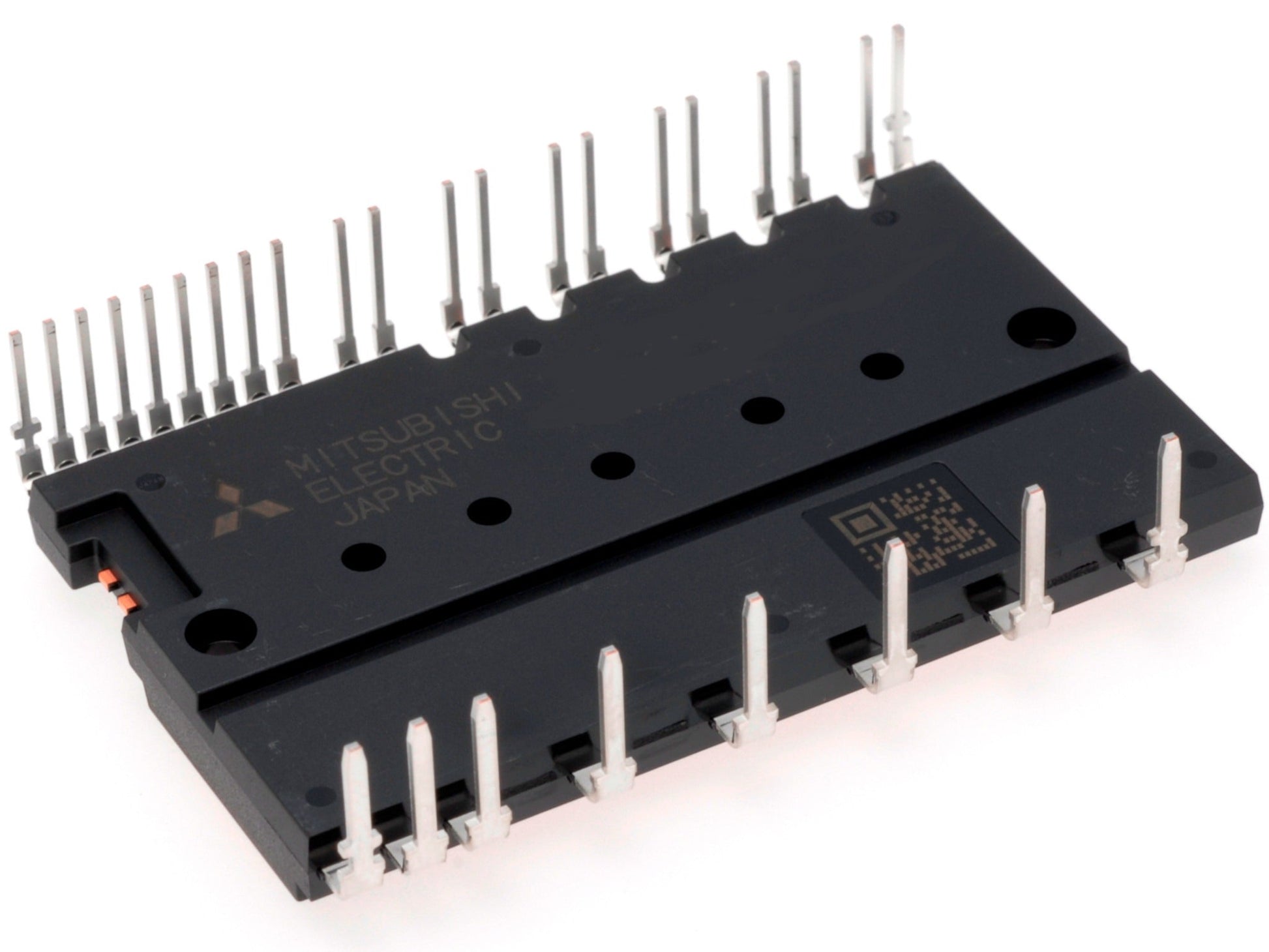

PSS50S71F6 Intelligent Power Module
The PSS50S71F6 from Mitsubishi Electric is an Intelligent Power Module (IPM) in the Mini-DIPIPM family, designed for small-power inverter applications. With a collector-emitter voltage rating of 600 V and continuous collector current of 50 A, this module provides efficient and stable performance in industrial and commercial power electronics.
The PSS50S71F6 integrates driver circuits and protection features, including under-voltage protection, short-circuit protection, fault signaling, and temperature monitoring. These built-in functions support safe and reliable operation under a wide range of conditions. Its transfer-molded package ensures solid insulation and thermal resistance, with a junction temperature range of −20 °C to +150 °C.
This module is widely used in three-phase AC inverters, motor drives, fans, pumps, household appliance motors, and other small power inverter systems. It is UL recognized under standard UL1557, providing additional assurance for industrial and commercial applications.
The PSS50S71F6 offers efficiency, durability, and ease of use. With reduced external component requirements and integrated protection, it simplifies system design, reduces downtime, and delivers consistent long-term performance.
Key Specs
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Part Number / Series | PSS50S71F6 (Mini-DIPIPM, Intelligent Power Module) |
| Collector-Emitter Voltage (VCES) | 600 V |
| Continuous Collector Current (IC) | 50 A |
| Pulse Collector Current (±ICP, <1 ms) | 100 A |
| Junction Temperature Range (Tj) | −20 °C to +150 °C |
| Isolation Voltage (Viso) | 2,500 Vrms (pins to heat sink) |
| Thermal Resistance (J-C) | IGBT ~1.0 K/W, FWDi ~2.0 K/W (per 1/6 module) |
| Protection Features | Short-circuit (N-side), under-voltage (P- and N-side), fault output, temperature output |
| Input Interface | 3 V / 5 V logic (Schmitt trigger, high active) |
| Package / Mounting Type | Mini DIPIPM, transfer-molded insulated package, UL1557 recognized |
For more detailed information, please refer to the Mitsubishi Electric datasheet.
