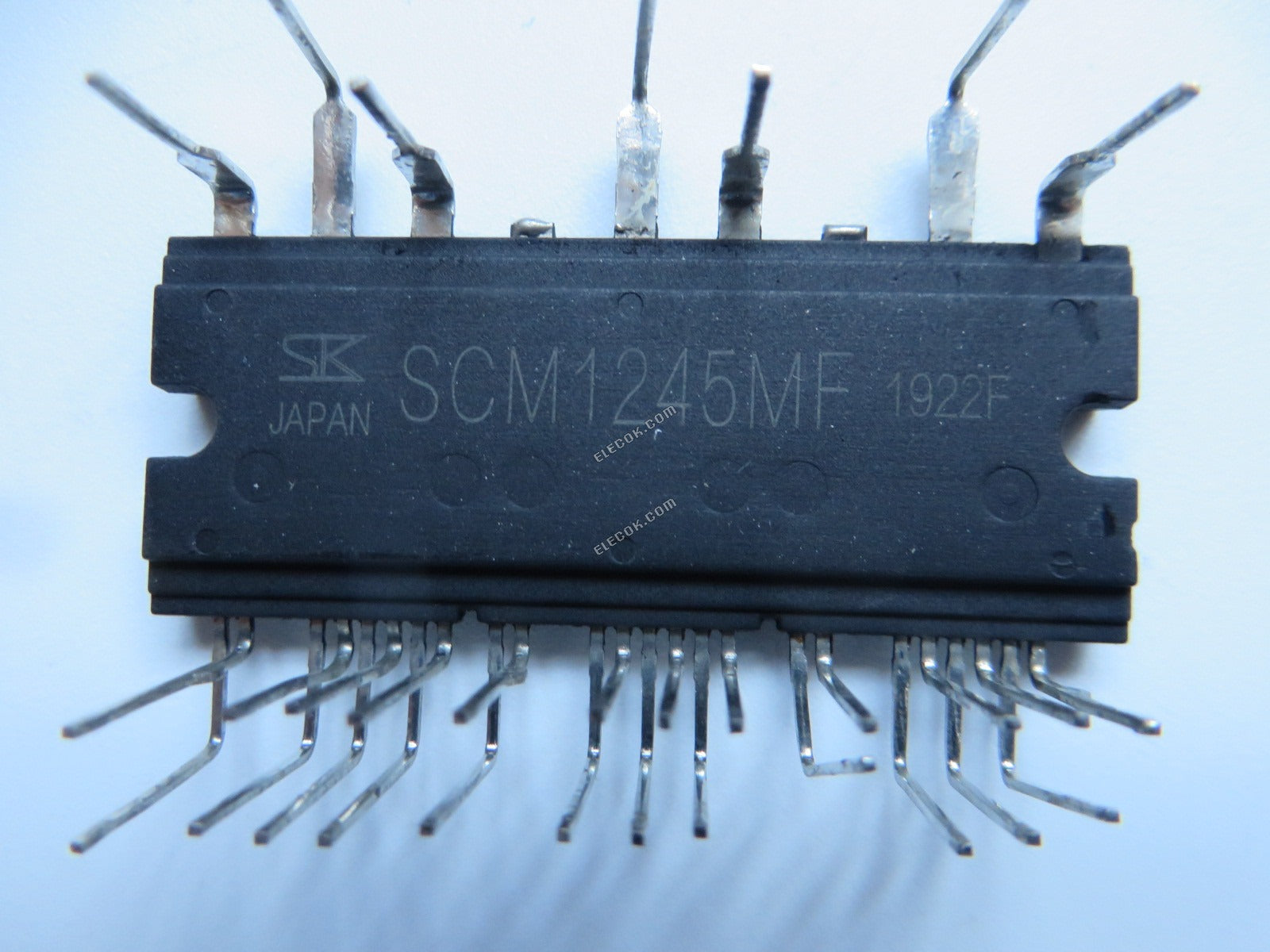

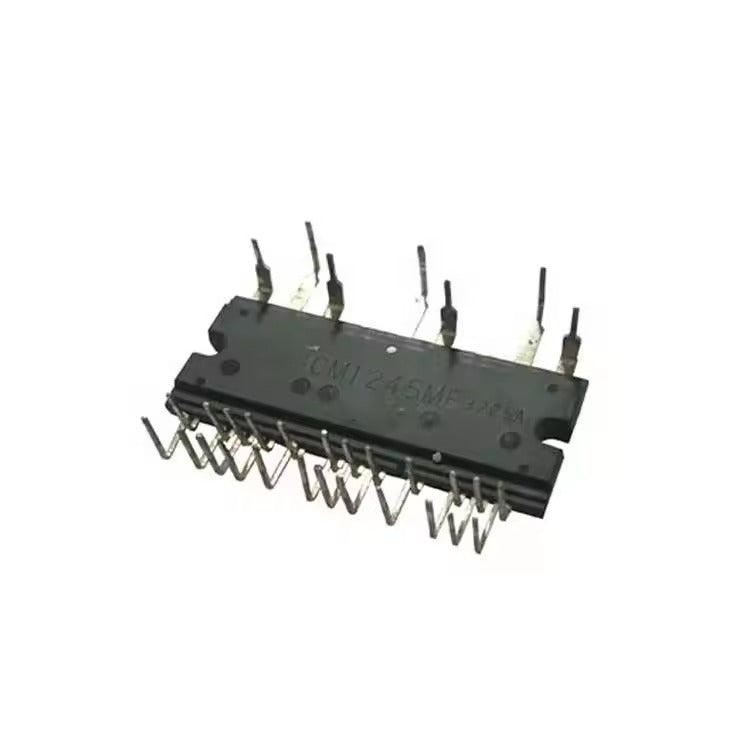

SCM1245MF IGBT Module
The SCM1245MF is a high-performance Intelligent Power Module (IPM) developed by Sanken Electric, designed to efficiently drive three-phase brushless DC (BLDC) motors in industrial and commercial applications. With a robust voltage rating of 600V and a continuous output current of 20A, this module ensures reliable and precise motor control, making it ideal for applications such as HVAC systems, home appliances, and industrial automation.
Featuring an integrated half-bridge configuration, the SCM1245MF simplifies system design by incorporating essential components like IGBTs, pre-driver ICs, and bootstrap diodes. Its CMOS-compatible input (3.3V or 5V) allows for seamless integration with modern control systems. Additionally, the module includes built-in protection features such as overcurrent protection (OCP), undervoltage lockout (UVLO), thermal shutdown, and fault signal output, ensuring safe and reliable operation in demanding environments.
The SCM1245MF operates within a supply voltage range of 13.5V to 16.5V and can withstand operating temperatures up to 125°C, making it suitable for high-stress environments. Its compact 33-pin PowerDIP package facilitates easy mounting and integration into existing systems. The module's RoHS-compliant construction further underscores its commitment to environmental responsibility.
Key Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Sanken Electric |
| Part Number | SCM1245MF |
| Type | Intelligent Power Module (IPM) |
| Voltage Rating | 600V |
| Current Rating | 20A continuous, 30A peak |
| Package Type | 33-Pin PowerDIP |
| Input Voltage | 13.5V to 16.5V |
| Operating Temp. | Up to 125°C |
| Protection Features | OCP, UVLO, Thermal Shutdown, Fault Output |
| Interface | CMOS-compatible (3.3V/5V) |
| Applications | BLDC motor control, HVAC systems, home appliances, industrial automation |
| Compliance | RoHS Compliant |
For more detailed information, please refer to the Sanken Electric datasheet.
