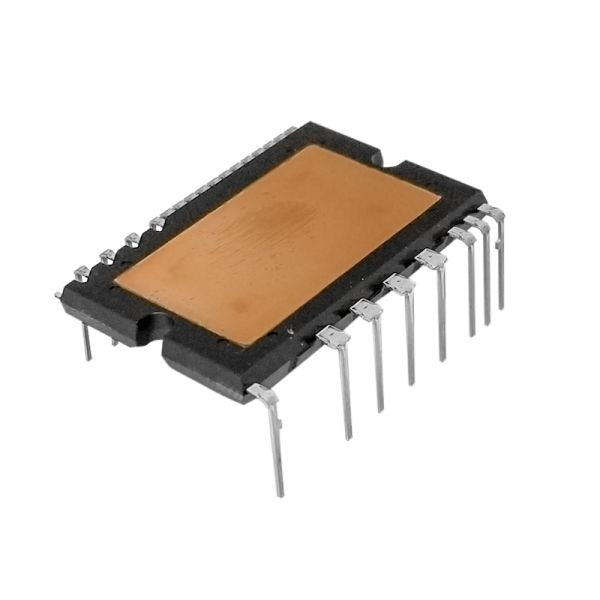

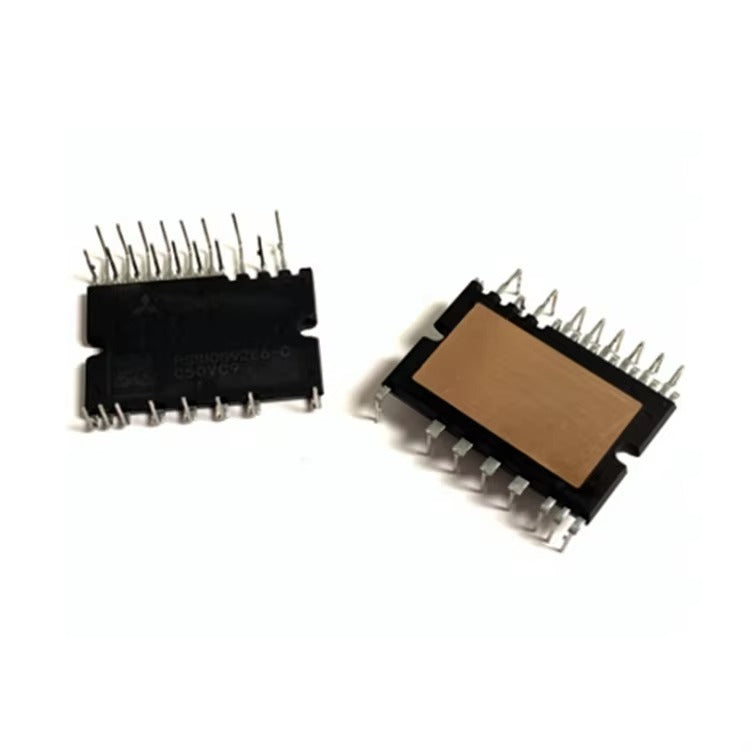

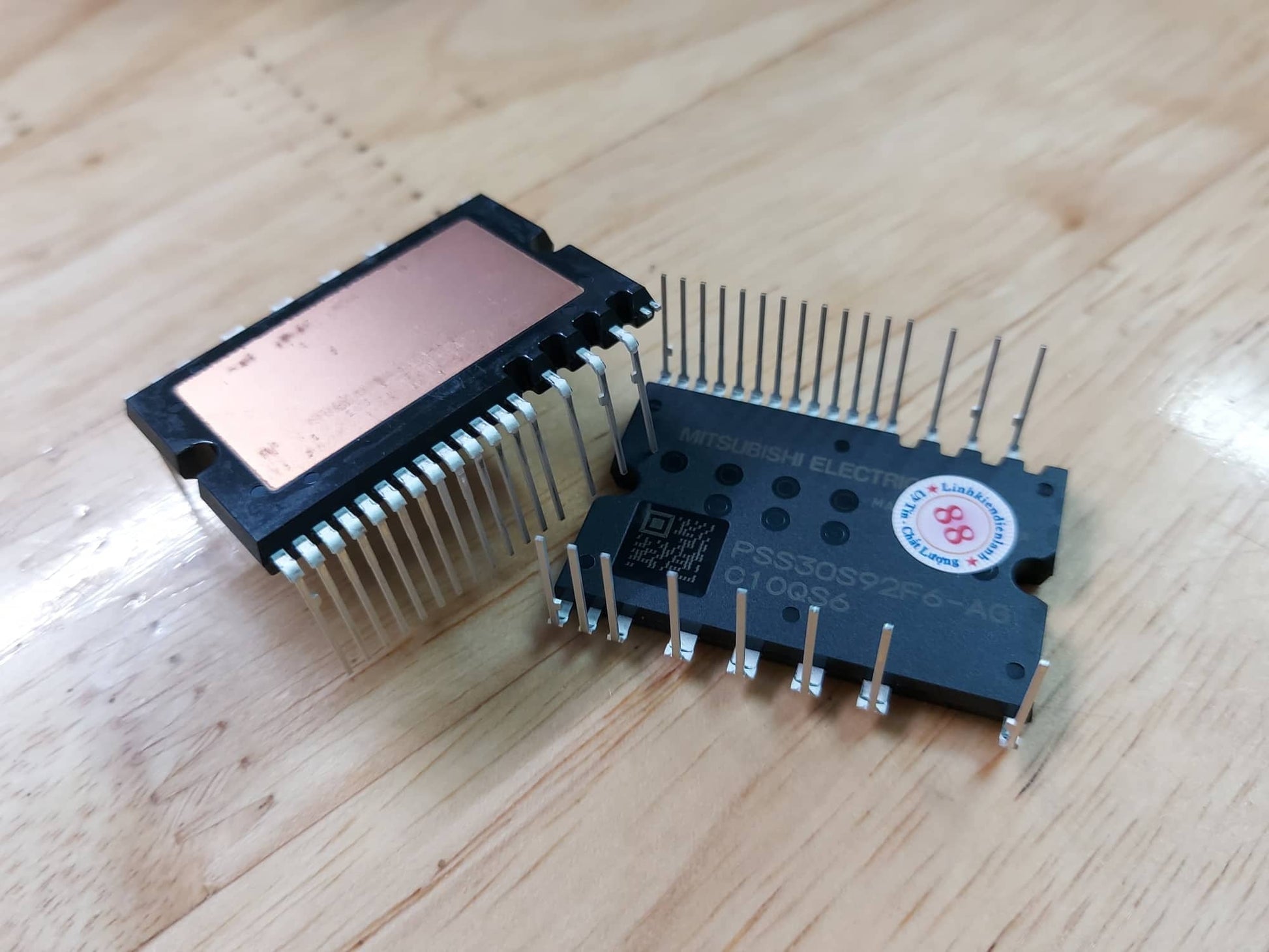

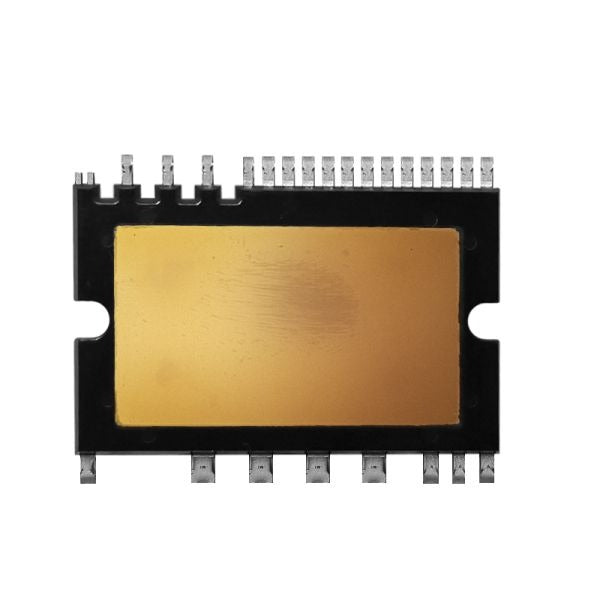

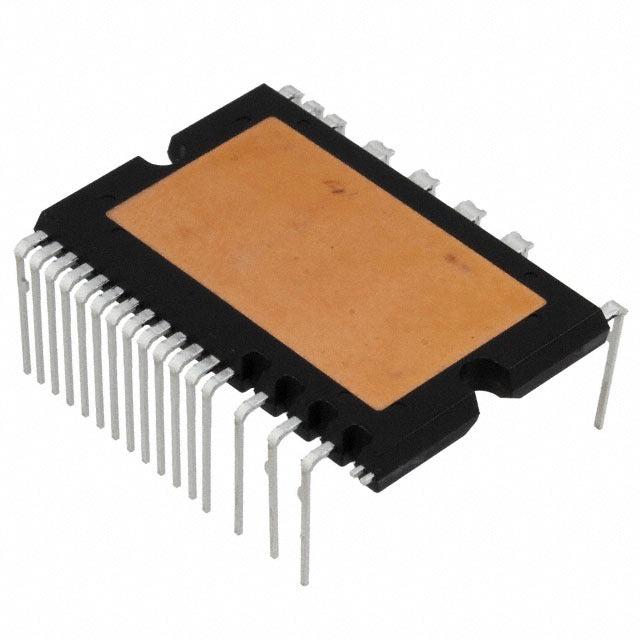

PSS30S92E6-AG Intelligent Power Module – Technical Overview
The Mitsubishi Electric PSS30S92E6-AG is an Intelligent Power Module (IPM) designed for industrial and commercial power electronics applications. It provides stable operation for medium-power motor drives, HVAC systems, and household appliances. The module is optimized for efficient switching and low thermal losses, allowing reliable operation under rated conditions.
This module includes built-in protection functions such as under-voltage (UV) protection, over-temperature (OT) protection, and short-circuit (SC) protection. These features help maintain system reliability and reduce the need for external protective components. The PSS30S92E6-AG is housed in a Super Mini DIPIPM Ver.6 package, offering a compact form factor suitable for space-constrained designs. It is recognized under UL1557, ensuring compliance with international safety standards.
Applications of the PSS30S92E6-AG include HVAC systems, industrial motor drives, and household appliances such as washing machines, refrigerators, and air conditioners. The module supports stable and efficient power control in systems that require moderate current and voltage levels.
Key Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 600V |
| Continuous Collector Current (I_C) | ±30A |
| Isolation Voltage | 1500Vrms |
| Junction Temperature (T_j) | 150°C |
| Package Type | Super Mini DIPIPM Ver.6 |
| Protection Features | UV, SC, OT (N-side) |
| Input Interface | 3/5V line, Schmitt trigger |
| UL Recognition | UL1557 File E323585 |
For more detailed information, please refer to the Mitsubishi Electric PSS30S92E6-AG datasheet.
