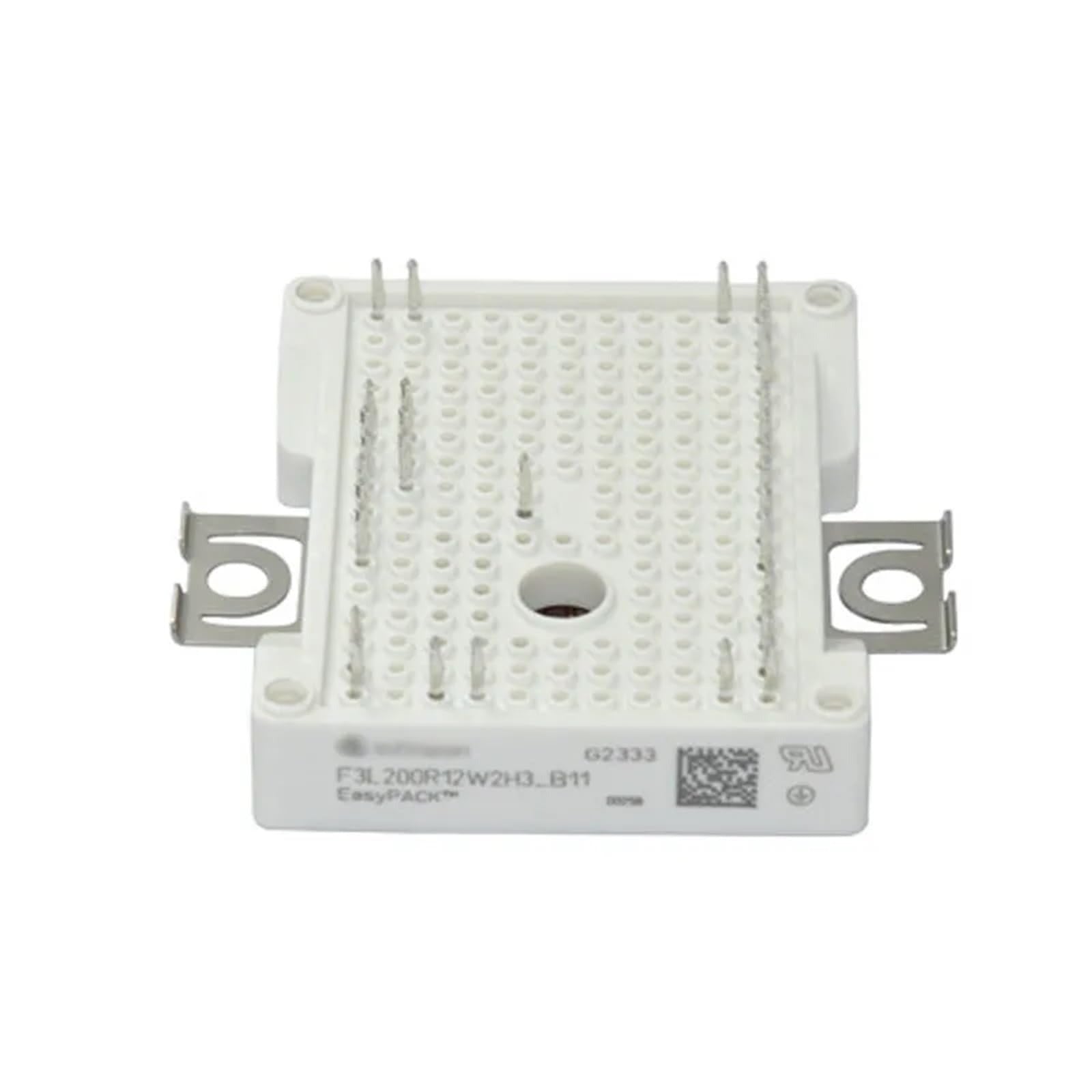

Infineon F3L200R12W2H3_B11 IGBT Power Module
The Infineon F3L200R12W2H3_B11 is a high-efficiency IGBT power module designed to deliver exceptional performance, reliability, and durability in demanding industrial and commercial power electronics applications. Ideal for three-phase inverter systems, this module ensures robust power control in renewable energy setups, motor drives, and uninterruptible power supplies (UPS).
Built for efficiency, the F3L200R12W2H3_B11 features a collector-emitter voltage of 1200 V and a continuous collector current of 200 A. Its low VCE saturation voltage of 1.75 V at 100 A reduces conduction losses, while fast switching times (190 ns turn-on, 480 ns turn-off) minimize thermal stress, enhancing overall system reliability.
Durability is ensured with an Al₂O₃ substrate and optimized thermal design, supporting continuous operation between -40°C and +150°C. The compact EasyPACK™ 2B housing with PressFIT contacts allows efficient mounting and easy integration in space-constrained applications.
This module is perfect for solar inverters, UPS systems, and industrial motor drives, providing high efficiency, robust performance, and cost-effective operation.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 1200 V |
| Continuous Collector Current (IC) | 200 A |
| Power Dissipation (Pd) | 600 W |
| VCE Saturation Voltage (VCEsat) | 1.75 V @ 100 A |
| Turn-On Time (ton) | 190 ns |
| Turn-Off Time (toff) | 480 ns |
| Operating Temperature Range | -40°C to +150°C |
| Package Type | EasyPACK™ 2B |
| Mounting Type | PressFIT |
| Thermistor | Integrated NTC |
| Technology | High-Speed IGBT H3 |
| Configuration | 3-Phase Inverter |
For more detailed information, please refer to the Infineon F3L200R12W2H3_B11 datasheet.
