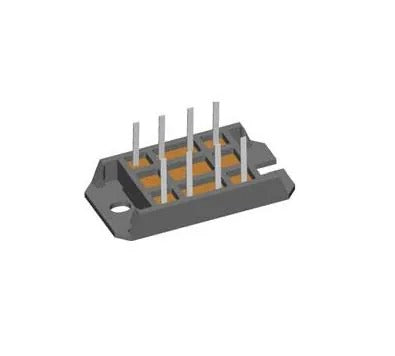

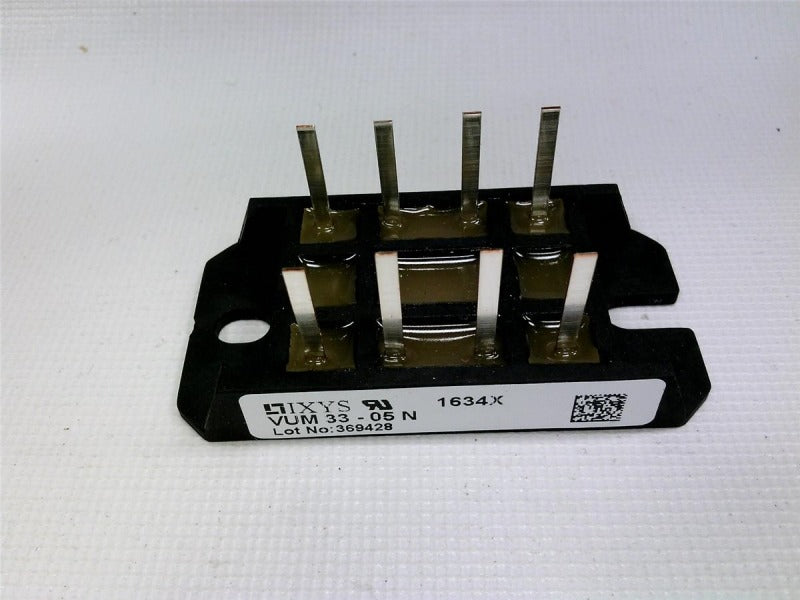

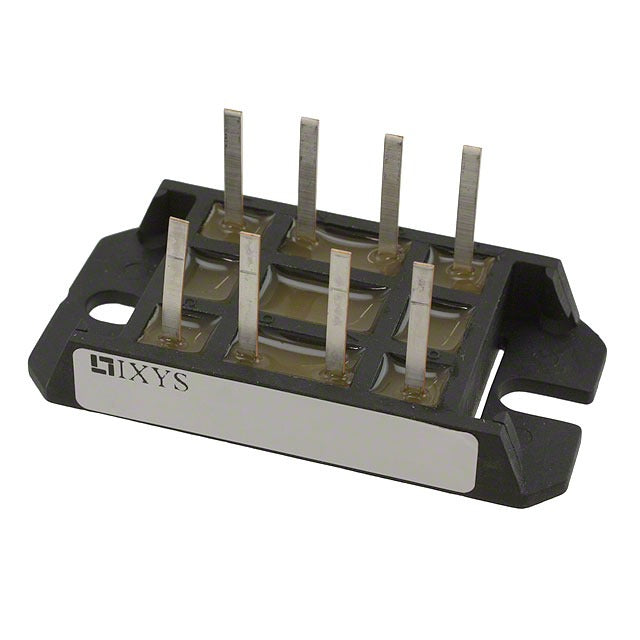

VUM33-05N Power Module – Technical Overview
The VUM33-05N by IXYS is a versatile power module designed for high-efficiency power conversion applications. With a peak reverse voltage of 600V and a continuous drain current of 33A, it is well-suited for power factor correction (PFC) circuits, boost converters, uninterruptible power supplies (UPS), and industrial motor drives. Its compact V1-B-Pack package ensures easy integration into space-constrained designs, making it a reliable choice for both industrial and commercial power electronics.
This module features a low on-state resistance of 0.12Ω, facilitating minimal conduction losses and efficient thermal management. With a maximum junction temperature of 150°C and an isolation voltage of 3600V, the VUM33-05N offers enhanced durability and reliability under demanding operating conditions. Its design includes a DCB ceramic base plate and FASTON connectors, simplifying mounting and ensuring secure electrical connections.
Applications of the VUM33-05N span various sectors, including industrial automation, renewable energy systems, and consumer electronics. Its ability to handle high currents and voltages while maintaining low thermal losses makes it ideal for systems requiring efficient and durable power conversion solutions.
Key Specifications
| Parameter | Value |
|---|---|
| Peak Reverse Voltage (V_RRM) | 600V |
| Continuous Drain Current (I_D) | 33A |
| On-State Resistance (R_DS(on)) | 0.12Ω |
| Pulsed Drain Current (I_DM) | 130A |
| Power Dissipation (P_D) | 310W |
| Junction Temperature (T_j) | -40°C to +150°C |
| Isolation Voltage (V_ISO) | 3600V |
| Package Type | V1-B-Pack |
| Mounting Type | Screw Mount |
| Electrical Mounting | FASTON Connectors |
For more detailed information, please refer to the IXYS VUM33-05N datasheet.
