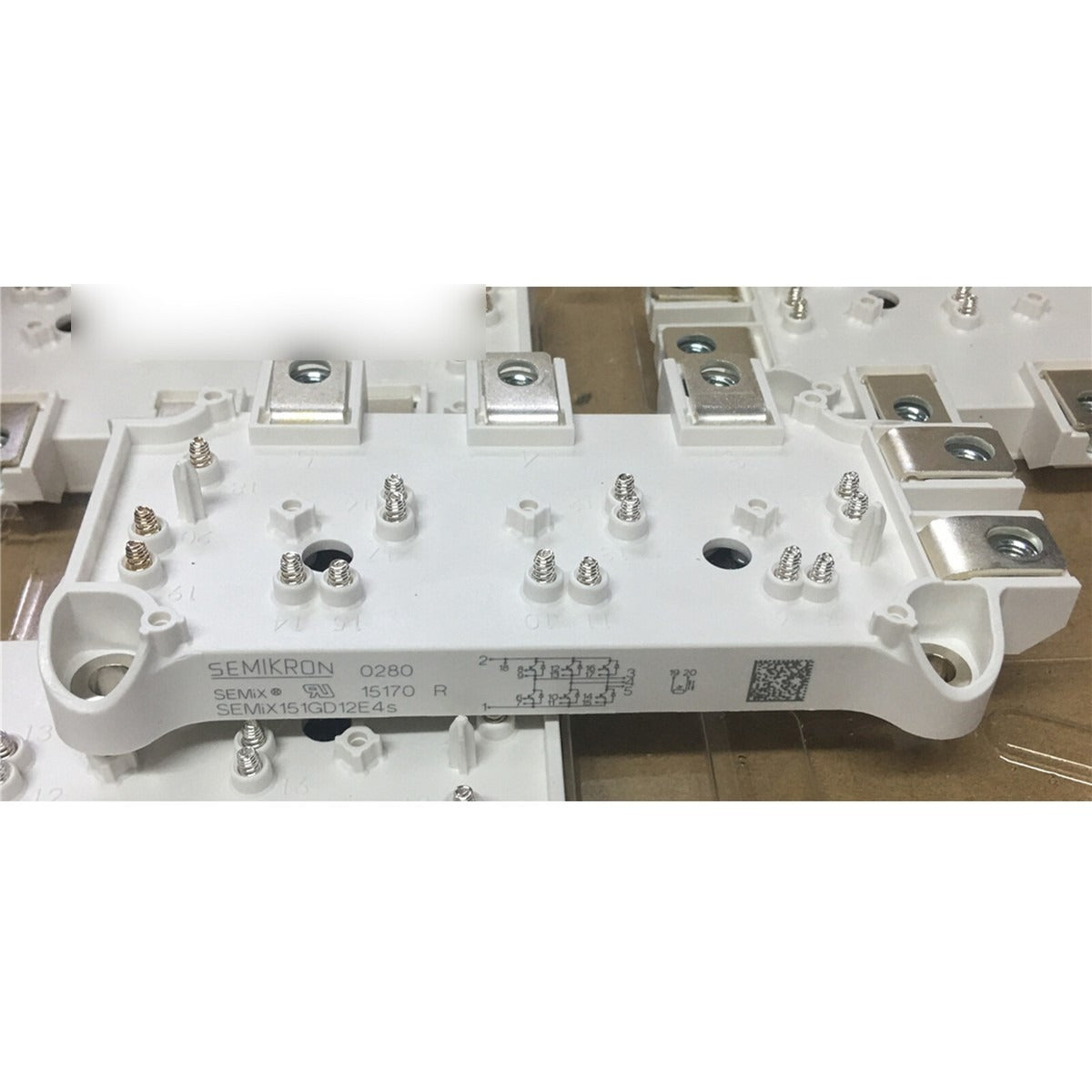

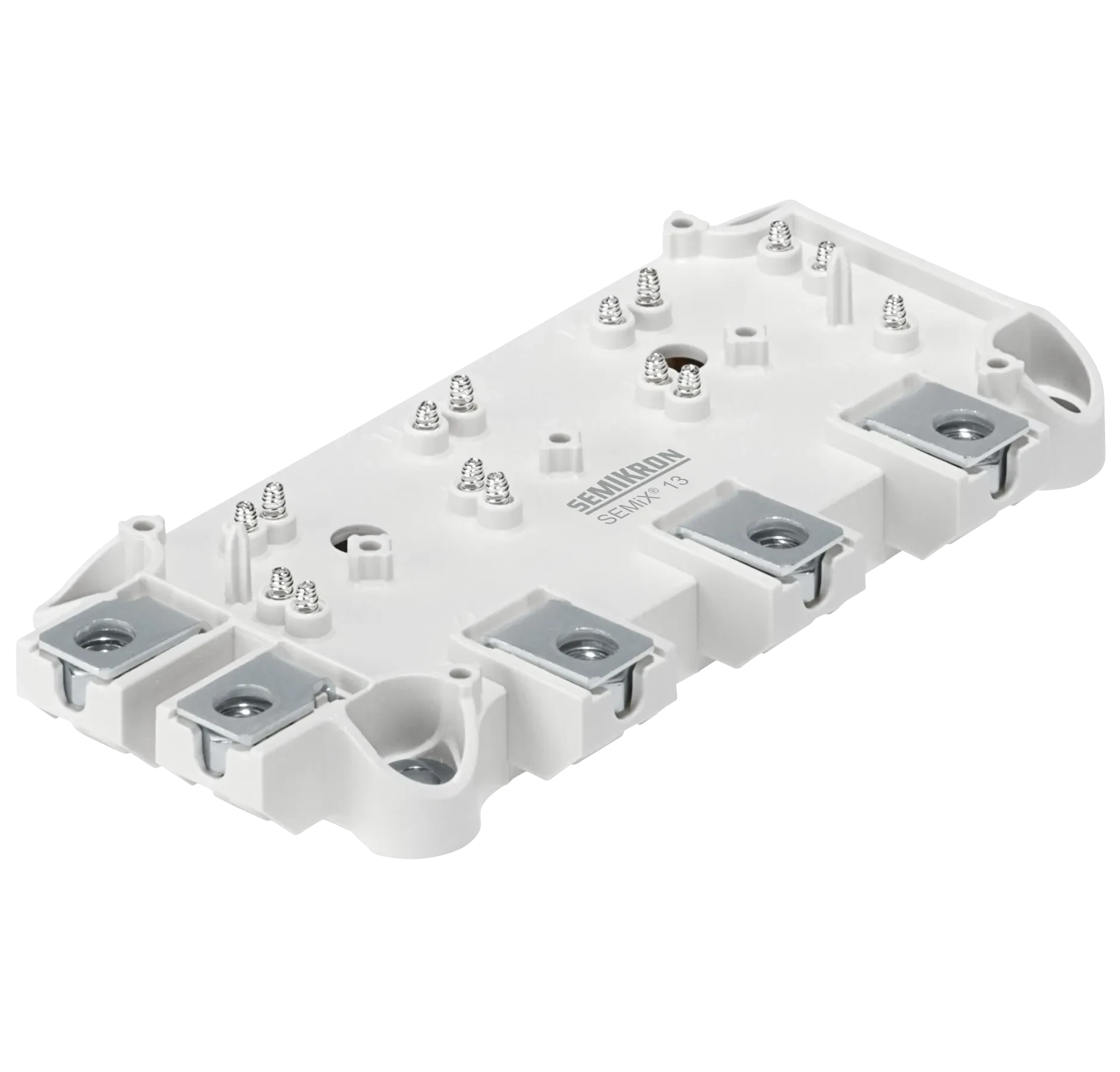

SEMiX151GD12E4S Power Module
The SEMiX151GD12E4S by Semikron Danfoss is a high-performance IGBT power module engineered for demanding industrial and commercial power electronics applications. Rated at 1200V and 150A, this six-pack module ensures efficient power conversion while providing reliable operation under continuous load conditions. Its Trench IGBT 4 technology minimizes conduction losses, contributing to high overall system efficiency, while the SEMiX® 13 package offers a compact footprint suitable for space-constrained designs.
Designed to withstand demanding environments, the SEMiX151GD12E4S features a maximum operating temperature of 125°C and a high short-circuit capability, enhancing system safety and durability. The module is equipped with a gate-emitter voltage of ±20V and uses screw mounting with FASTON-compatible connections for secure installation. These characteristics make it a dependable choice for applications that require consistent and long-term performance, including motor drives, UPS systems, photovoltaic inverters, and AC inverter drives.
The SEMiX151GD12E4S is suitable for industrial automation, renewable energy systems, electronic welding, and commercial power conversion. Its ability to handle high currents and voltages while maintaining low thermal losses ensures efficient, reliable, and durable operation. With a lightweight design of approximately 290g, this module combines performance, compactness, and robust electrical characteristics, making it ideal for engineers and system integrators seeking dependable power modules.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V_CEO) | 1200V |
| Continuous Collector Current (I_C) | 150A |
| Package Type | SEMiX® 13 |
| Technology | Trench IGBT 4 |
| Topology | Six-Pack |
| Short Circuit Capability | High |
| Maximum Operating Temperature | 125°C |
| Gate-Emitter Voltage | ±20V |
| Mounting Type | Screw |
| Weight | ~290g |
For more detailed information, please refer to the Semikron Danfoss SEMIX151GD12E4S datasheet.
