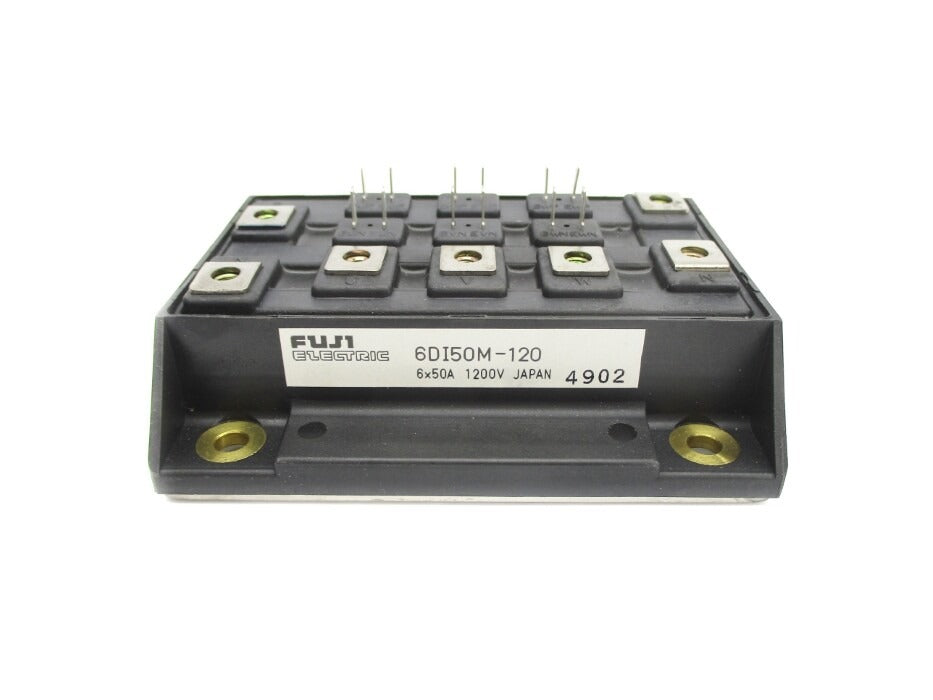

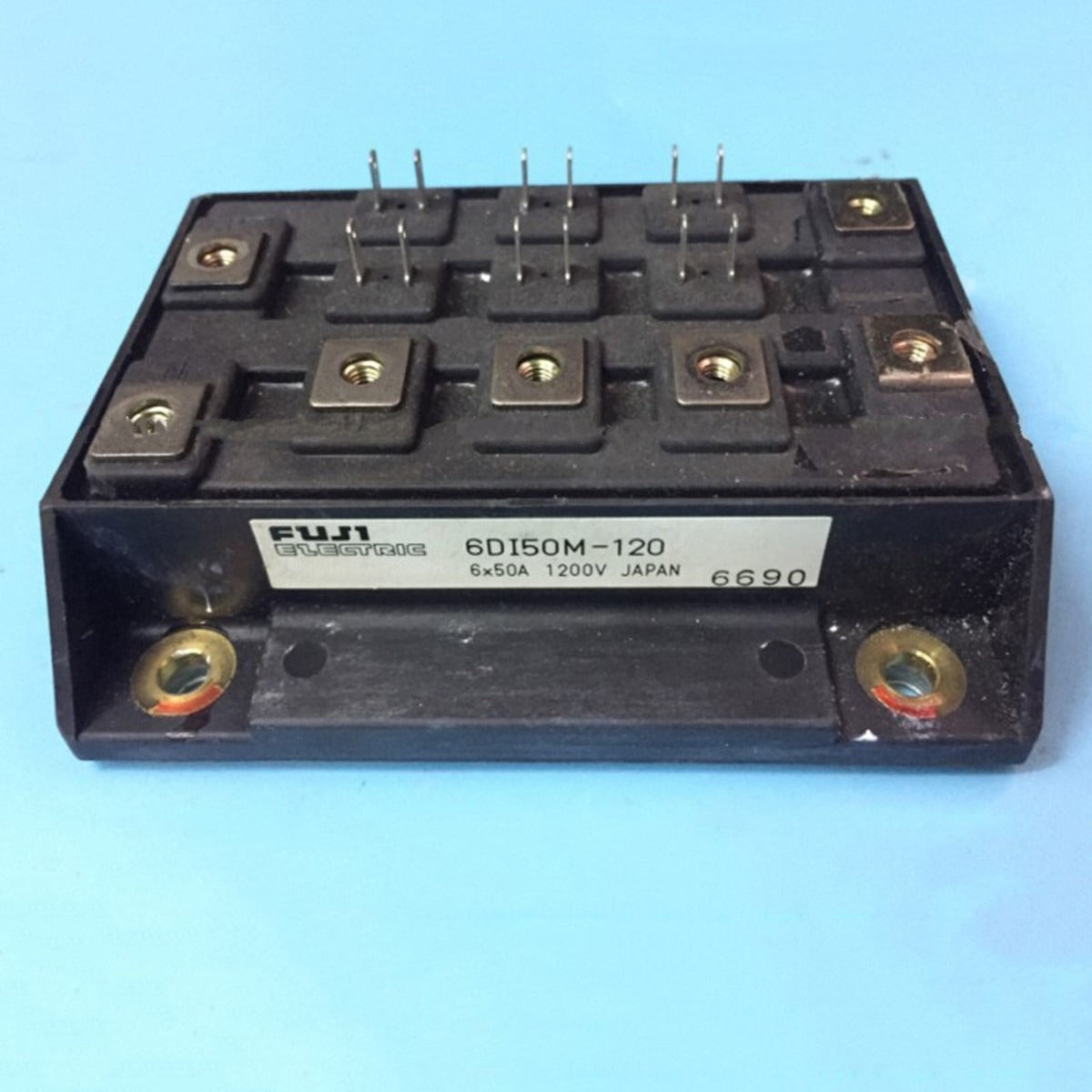

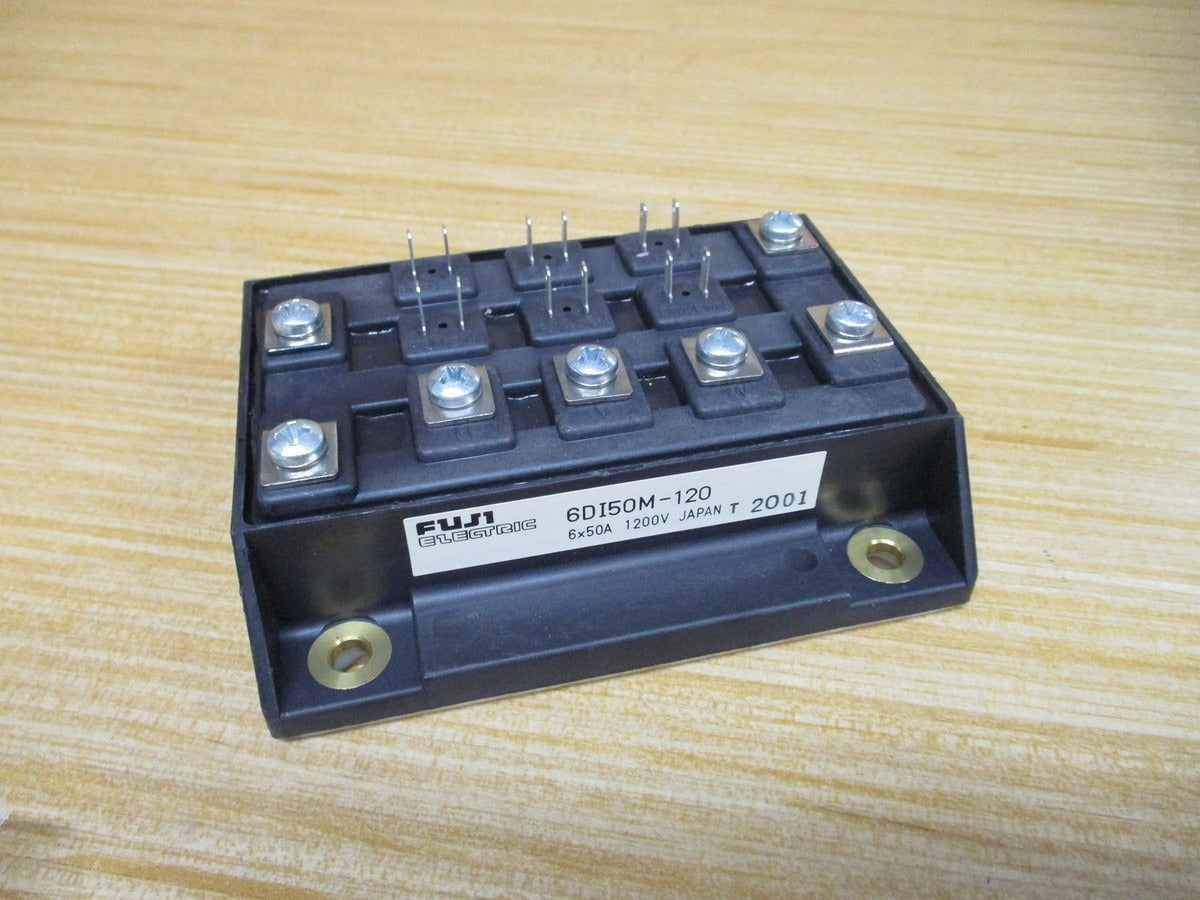

6D150M-120 — Power Transistor Module for Industrial Applications
The Fuji Electric 6D150M-120 is a power transistor module designed for use in demanding power-electronic systems. It integrates six transistor elements rated at 50 A each within an insulated package, providing reliable performance for motor drives, UPS systems, welding equipment, and other industrial applications. With a collector-emitter voltage rating of 1200 V, the module is suitable for high-power conversion tasks where consistent operation is required.
The module combines low saturation voltage with stable thermal performance and short-circuit tolerance, which helps reduce switching losses and improves operational efficiency. These characteristics support reduced heat dissipation, lower system stress, and dependable service life in both commercial and industrial environments.
Its structure and design make the 6D150M-120 adaptable to a variety of systems, including three-phase inverters, servo drives, and robotic control units. The insulated base and mounting configuration allow straightforward integration while maintaining electrical isolation for safe operation in industrial settings.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part number | 6D150M-120 |
| Device type | Power transistor module (insulated package) |
| Maximum Collector-Emitter Voltage (V_CE) | 1200 V |
| Rated current per element | 50 A × 6 (six elements) |
| Typical applications | Inverters, UPS, servo drives, robotics, welding machines |
| Key features | Low V_CE(sat), short-circuit capability, insulated base, integrated diode (as specified) |
| Isolation voltage | Provided in datasheet (VAC test values) |
| Operating junction temperature (T_j) | See datasheet for limits and derating curves |
For more detailed information, please refer to the Fuji Electric datasheet 6D150M-120 Datasheet.
