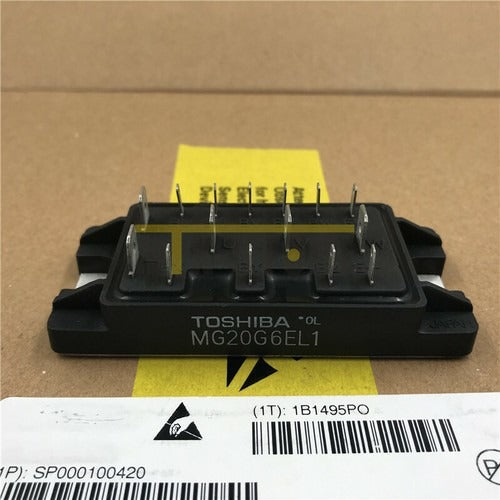

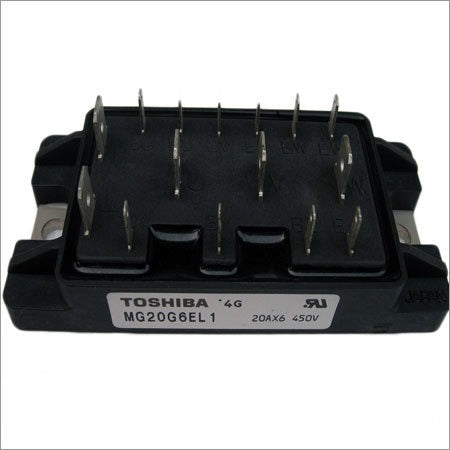

MG20G6EL1 – Intelligent Power Module by Toshiba
The Toshiba MG20G6EL1 is an Intelligent Power Module (IPM) designed for high-power switching applications. With a collector-emitter voltage rating of 450V and a maximum collector current of 20A, this module is suitable for industrial and commercial use. Its six-channel configuration and NPN transistor type support motor drives, inverters, and power supplies, providing consistent performance in power electronics systems.
The MG20G6EL1 features a low saturation voltage, high DC current gain, and a wide operating temperature range. Its 15-pin flange mount package allows easy integration into systems, while the isolated case connection ensures stable operation. The module is designed for thermal stability and long-term reliability, minimizing maintenance requirements in industrial environments.
This module can be used in motor control, robotics, HVAC systems, and other high-power switching applications. Its efficiency and durability make it a practical component for industrial and commercial power electronics. For more detailed information, please refer to the Toshiba datasheet.
Key Specs
| Specification | Value |
|---|---|
| Collector-Emitter Voltage | 450 V |
| Collector Current (Max) | 20 A |
| DC Current Gain (hFE) | 100 (min) |
| Number of Channels | 6 |
| Package Type | Flange Mount |
| Pin Count | 15 |
| Transistor Type | NPN |
| Case Connection | Isolated |
| Mounting Type | Through Hole |
| Operating Temperature Range | -40°C to +125°C |
| Element Material | Silicon |
| Application | High-Power Switching |
