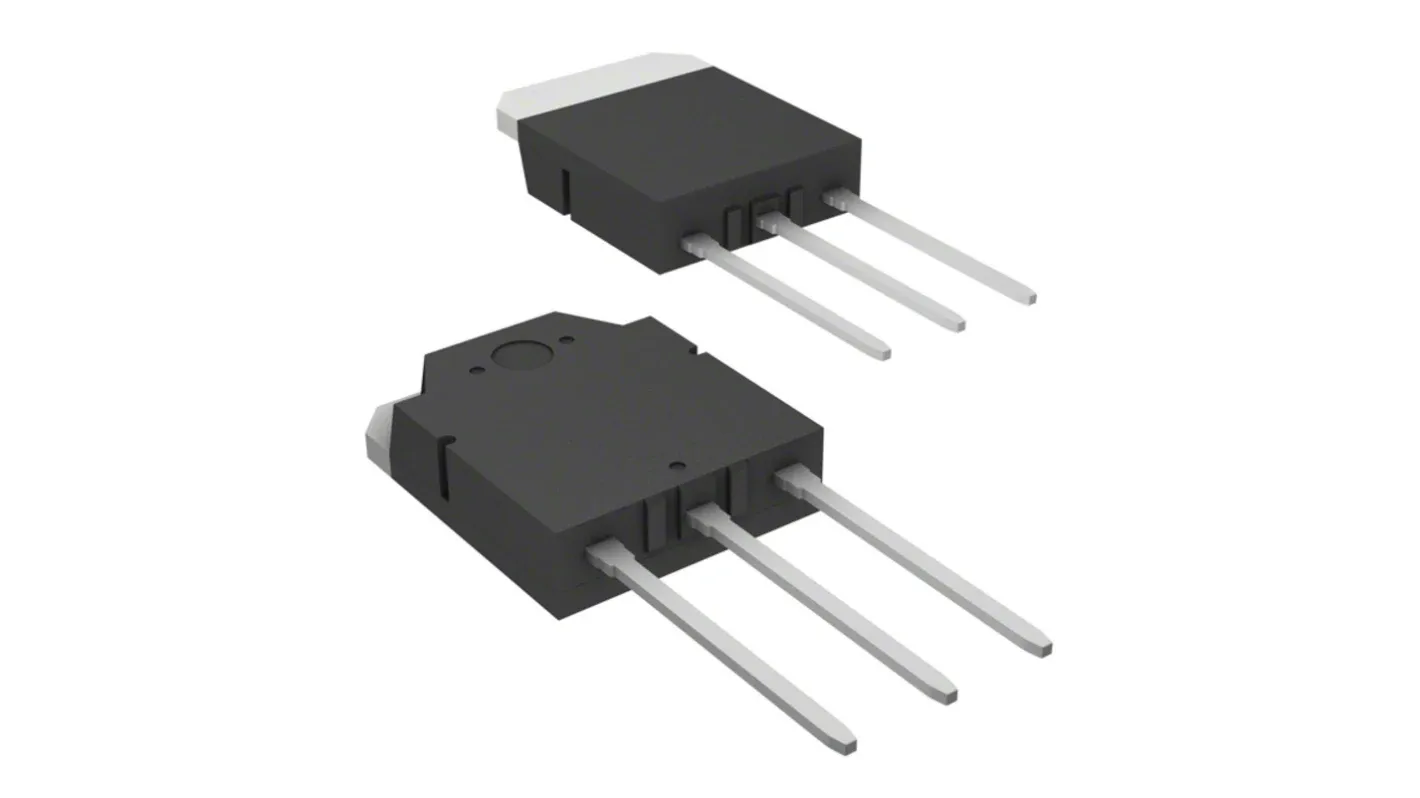

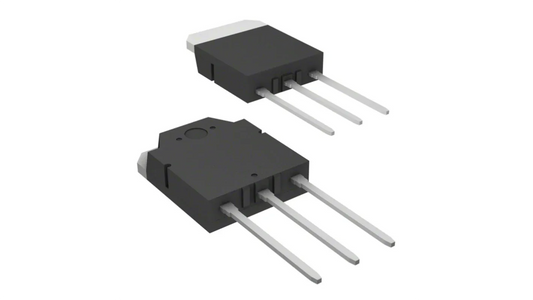

Renesas K1317 1500V 2.5A N Channel MOSFET
Regular price
Rs.250.00
Sale price
Rs.270.00
K1317 1500 V / 2.5 A N‑Channel MOSFET
The K1317 (2SK1317) from Renesas (formerly Hitachi) is a 1500‑volt, 2.5‑amp N‑channel power MOSFET designed to deliver outstanding performance and reliability in demanding power‑electronics applications. Engineered for high-voltage switching, the K1317 offers high breakdown voltage combined with fast switching characteristics and low gate drive requirement. This makes it an ideal choice for systems where compact, efficient, and rugged power handling is critical.
Built to excel in industrial and commercial environments, the K1317 provides robust thermal and mechanical resilience in its TO‑3P package. Its low on‑state resistance and minimal conduction losses support highly efficient energy conversion, even under rigorous operating conditions. In addition, the device’s design prevents secondary breakdown, ensuring long-term stability and durability in high-stress circuits.
With its strong performance in high-frequency and high-voltage domains, the K1317 is well-suited for use in DC–DC converters, switching regulators, motor drivers, renewable energy inverters, and other industrial automation systems. Its combination of voltage handling, efficiency, and trustworthy operation makes it a go-to choice for power electronics professionals seeking a reliable MOSFET solution.
Key Specifications
| Parameter | Value |
|---|---|
| Transistor Type | N‑Channel Power MOSFET |
| Drain‑Source Voltage (V<sub>DSS</sub>) | 1500 V |
| Continuous Drain Current (I<sub>D</sub>) | 2.5 A |
| Pulsed Drain Current | 7 A (10 µs, duty cycle ≤ 1 %) |
| Gate‑Source Voltage (V<sub>GSS</sub>) | ±20 V (max) |
| On‑State Resistance (R<sub>DS(on)</sub>) | up to 12 Ω (max) |
| Channel Power Dissipation | 100 W (at T<sub>C</sub>=25 °C) |
| Operating Junction Temperature | up to 150 °C |
| Input / Output Capacitance | C<sub>iss</sub> typ ~ 990 pF |
| Package | TO‑3P (through‑hole) |
| Applications | Switching regulators, DC–DC converters, motor control, industrial power systems |
