K1413 2SK1413 N Channel MOSFET
Regular price
Rs.250.00
Sale price
Rs.275.00
K1413 (2SK1413)

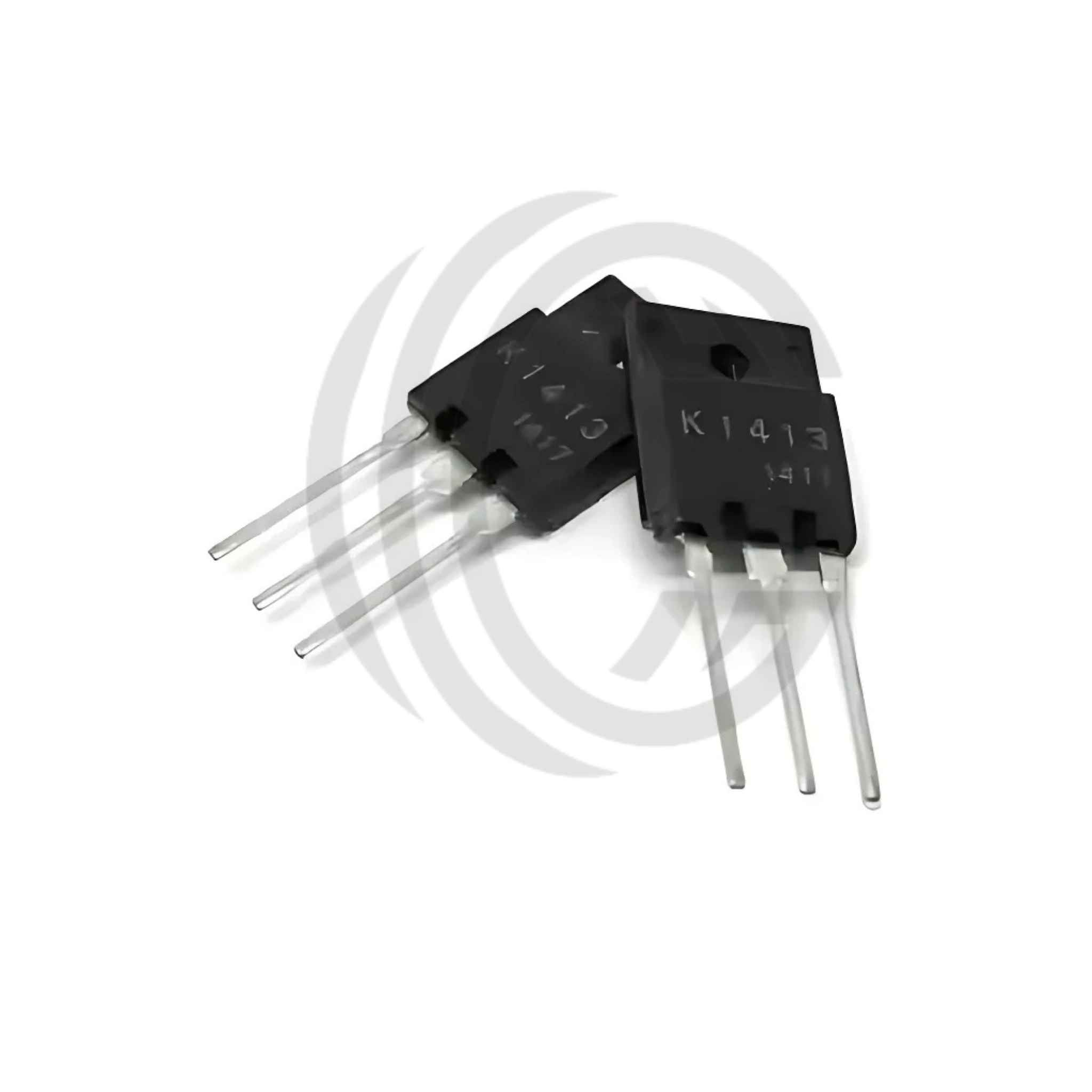

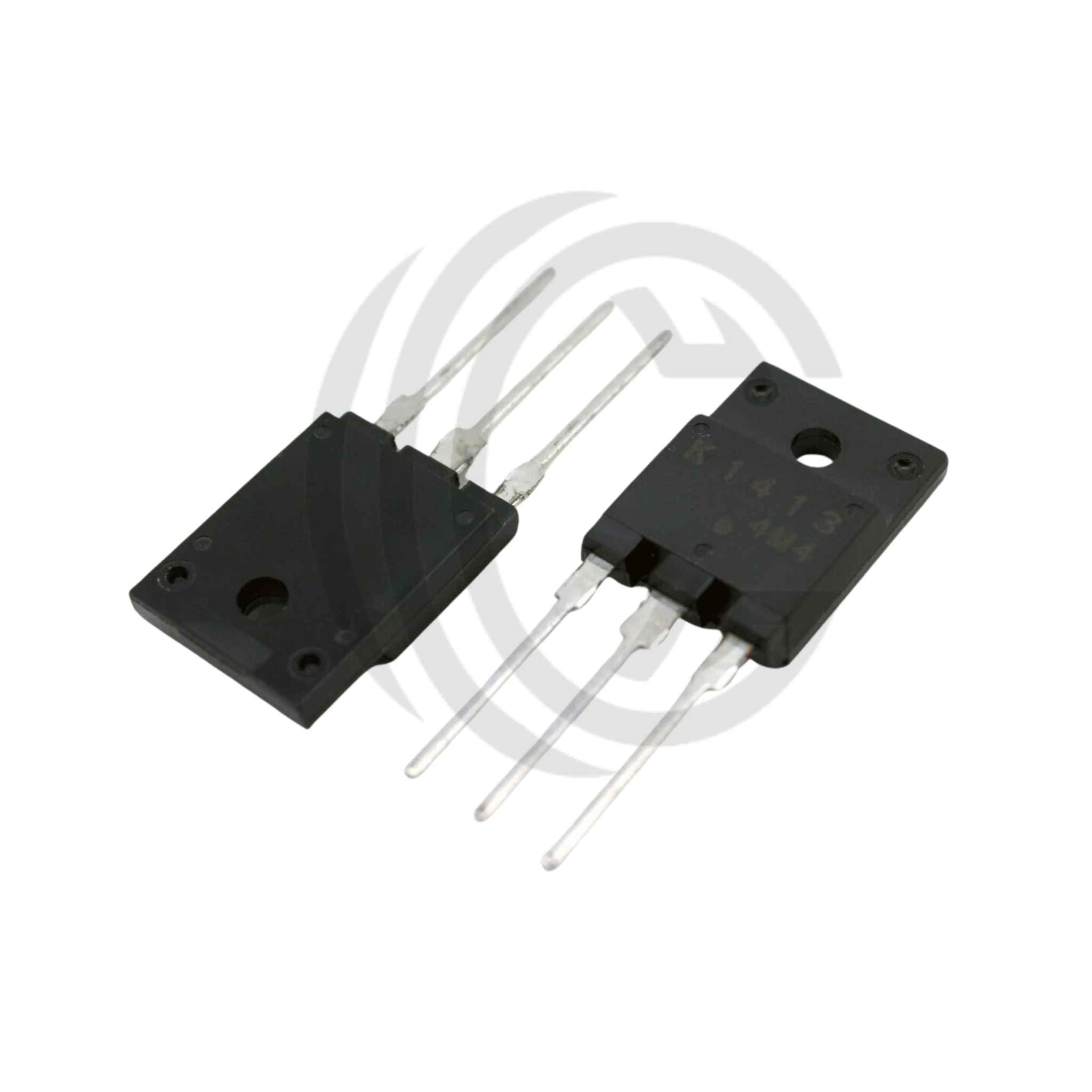

The K1413 (2SK1413) is a high-voltage N-Channel MOSFET from Sanyo, designed for high-speed switching applications. It uses a high-voltage process (HVP) and is housed in a micaless TO‑3PML package, which facilitates mounting and heat dissipation. With a drain-to-source voltage of 1500 V, this MOSFET is suitable for industrial and commercial power circuits requiring high-voltage operation.
The K1413 features low ON-resistance and low input capacitance, supporting efficient power transfer and fast switching. These characteristics make it suitable for AC–DC converters, inverters, pulse circuits, and other high-voltage switching systems. Its TO‑3PML package simplifies installation while supporting thermal management in high-current conditions.
The device maintains stable performance under electrical stress, with a high channel temperature tolerance and robust construction. This makes it a reliable component for industrial power supplies and high-voltage applications. Its electrical characteristics, including fast turn-on and turn-off times, provide predictable switching performance in demanding circuits.
Key Specifications
| Parameter | Symbol | Value / Condition | Unit |
|---|---|---|---|
| Drain‑to‑Source Voltage | V₍DSS₎ | 1500 | V |
| Gate‑to‑Source Voltage | V₍GSS₎ | ±20 | V |
| Drain Current (DC) | I₍D₎ | 2 | A |
| Drain Current (Pulse) | I₍DP₎ | 4 (pulse width ≤ 10 μs, duty cycle ≤ 1 %) | A |
| Power Dissipation (ambient) | P₍D₎ | 3.0 | W |
| Power Dissipation (case, Tc = 25 °C) | P₍D, Tc=25 °C₎ | 60 | W |
| Channel Temperature | T₍ch₎ | 150 | °C |
| Storage Temperature | T₍stg₎ | –55 to +150 | °C |
| Breakdown Voltage | V₍(BR)DSS₎ | Min 1500 (I₍D₎ = 1 mA, V₍GS₎ = 0) | V |
| Cut-off Gate Voltage | V₍GS(off)₎ | 1.5 to 3.5 (V₍DS₎ = 10 V, I₍D₎ = 1 mA) | V |
| On-State Resistance | R₍DS(on)₎ | Typ 8.0 Ω, Max 11.0 Ω (I₍D₎ = 1 A, V₍GS₎ = 10 V) | Ω |
| Input Capacitance | C₍iss₎ | 550 | pF |
| Output Capacitance | C₍oss₎ | 90 | pF |
| Reverse Transfer Capacitance | C₍rss₎ | 30 | pF |
| Forward Transfer Admittance | ** | y₍fs₎ | ** |
| Turn-on Delay Time | t₍d(on)₎ | 14 | ns |
| Rise Time | t₍r₎ | 16 | ns |
| Turn-off Delay Time | t₍d(off)₎ | 160 | ns |
| Fall Time | t₍f₎ | 40 | ns |
| Diode Forward Voltage | V₍SD₎ | Typ 1.0 V, Max 1.5 V (I₍S₎ = 2 A, V₍GS₎ = 0) | V |
| Package | TO‑3PML (micaless) | — |

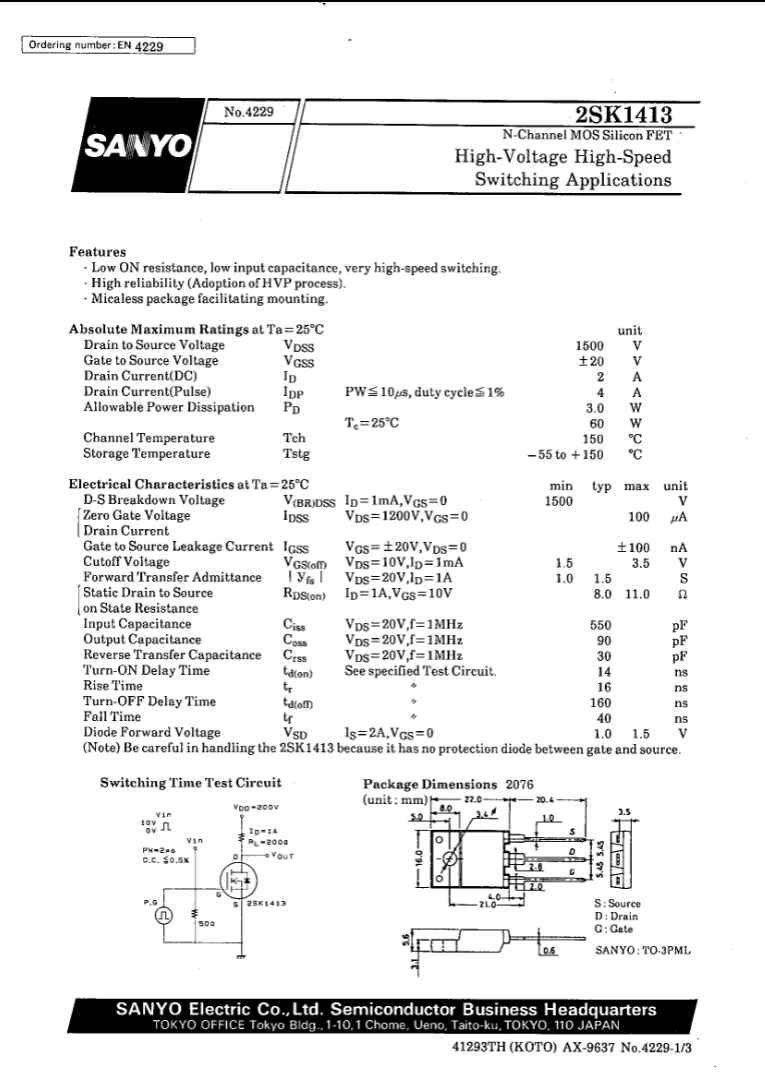

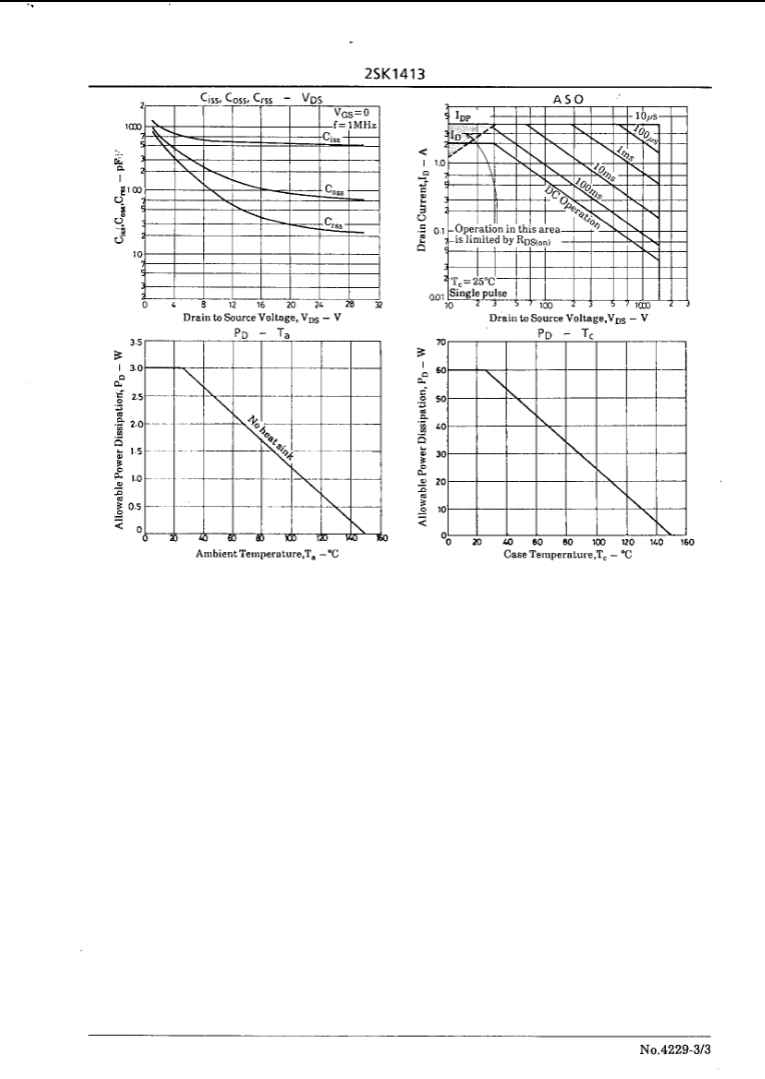

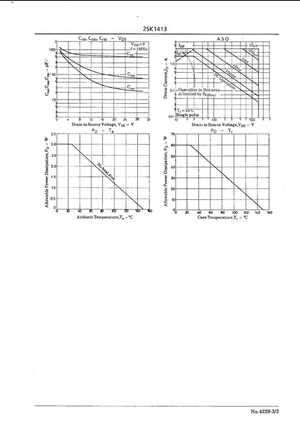

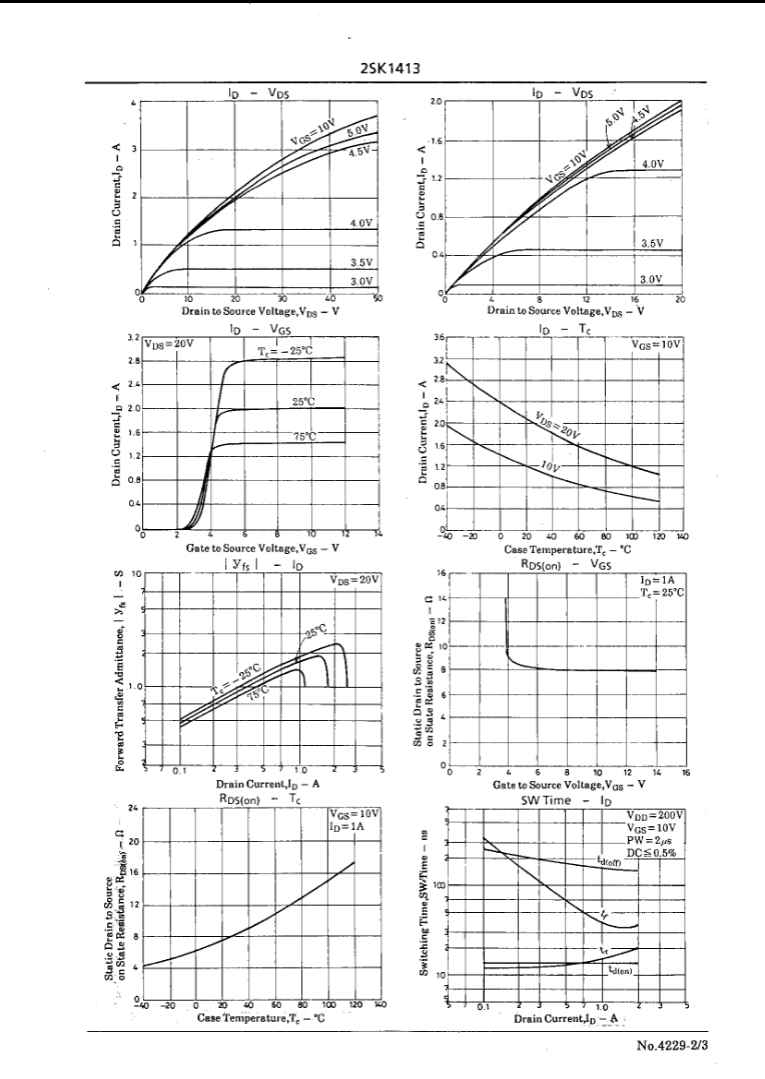

For more detailed information, please refer to the Sanyo 2SK1413 / K1413 datasheet: View Datasheet.
