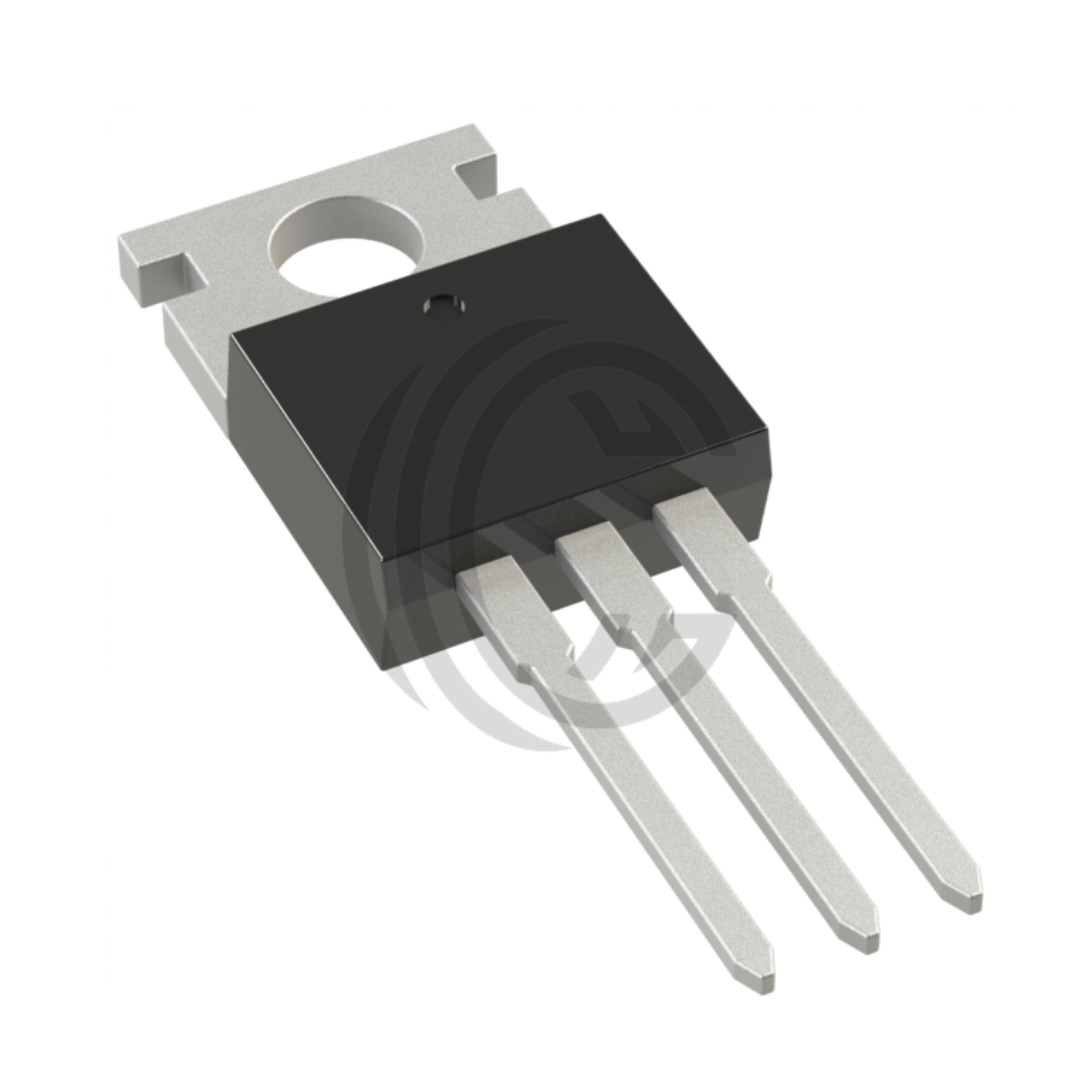

Front View Of K100E08N1 100A 80V N-channel MOSFET

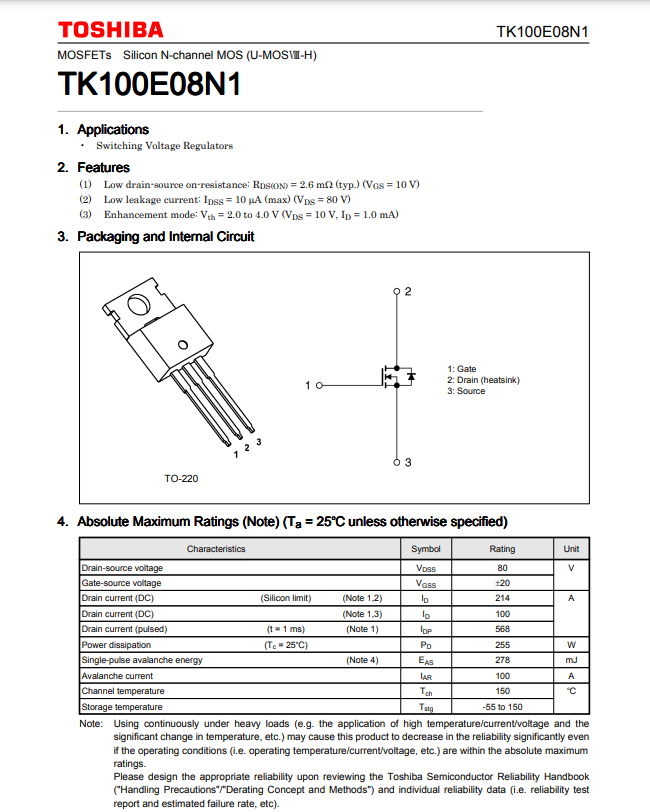

Toshiba TK100E08N1 N-channel MOSFET transistor datasheet showing features and electrical characteristics

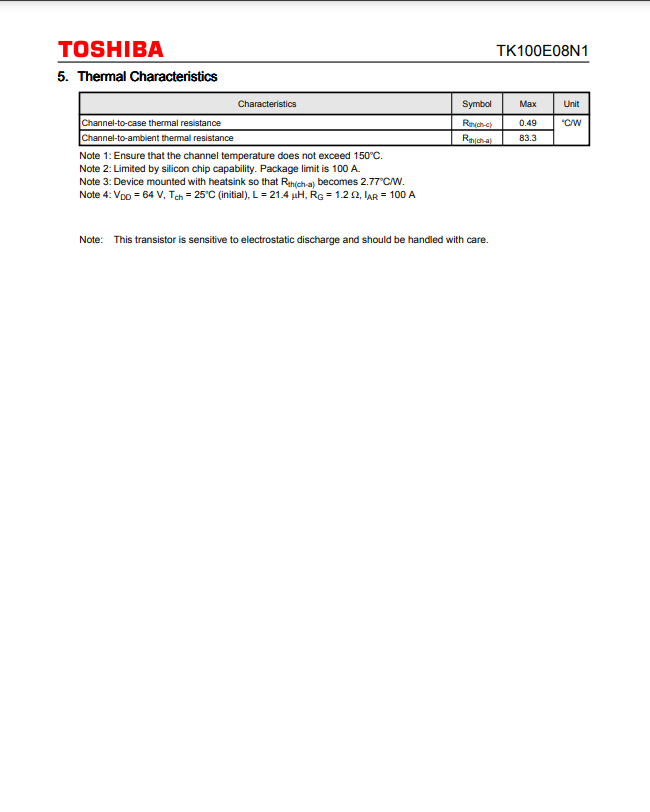

Thermal characteristics specification sheet for Toshiba transistor model K100E08N1 showing channel-to-case and channel-to-ambient thermal resistance values
K100E08N1 100A 80V N-channel MOSFET

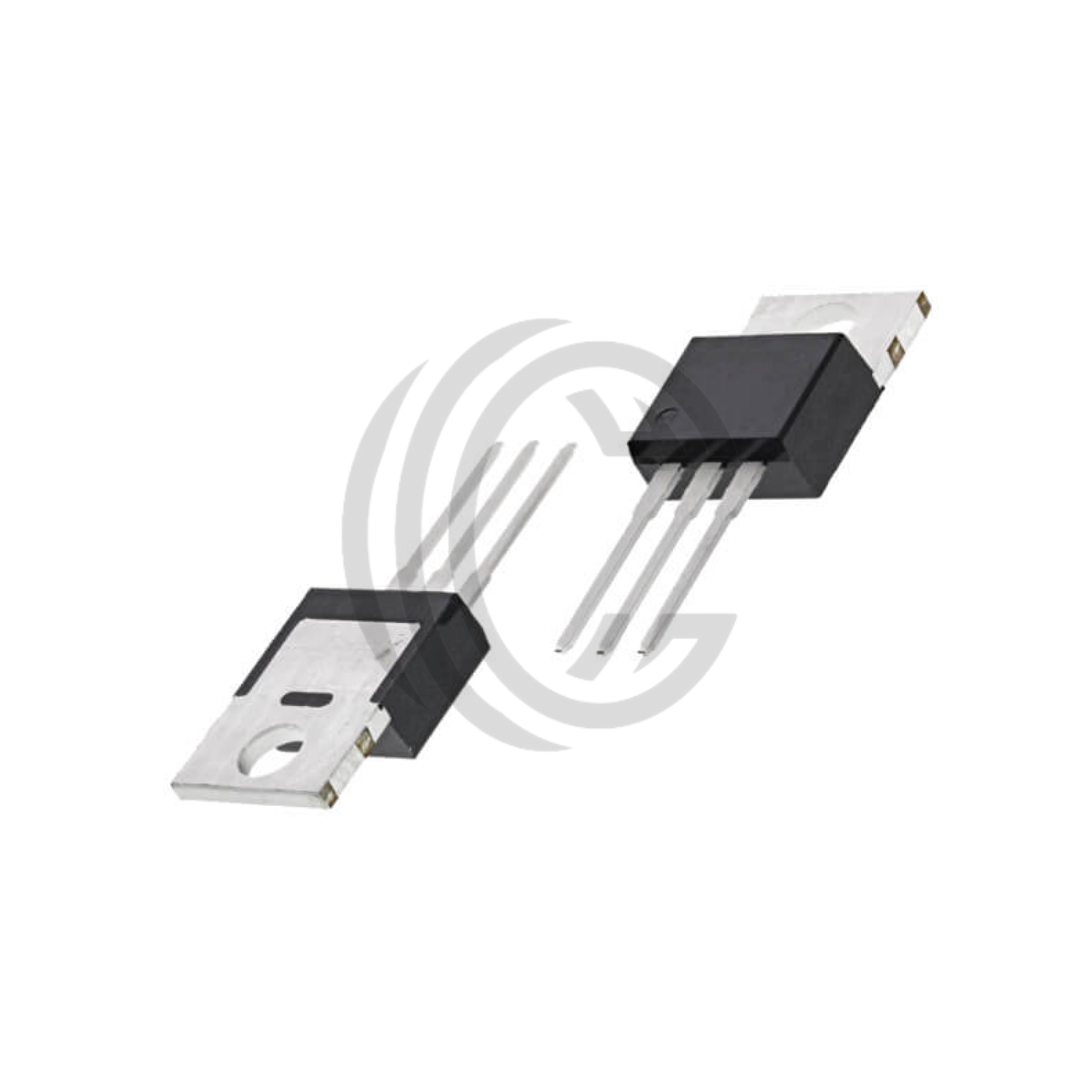

Front View Of K100E08N1 100A 80V N-channel MOSFET
Toshiba TK100E08N1 N-channel MOSFET transistor datasheet showing features and electrical characteristics
Thermal characteristics specification sheet for Toshiba transistor model K100E08N1 showing channel-to-case and channel-to-ambient thermal resistance values

K100E08N1 100A 80V N-channel MOSFET

Regular price Rs.190.00 Sale price Rs.170.00
11% OFF
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
K100E08N1 100A 80V N-channel MOSFET
This item: K100E08N1 100A 80V N-channel MOSFET
Regular price Rs.190.00 Sale price Rs.170.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,100.00 PKR Sale total price Rs.3,855.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
K100E08N1 100A 80V N-channel MOSFET

K100E08N1 100A 80V N-channel MOSFET

Rs.170.00

K100E08N1 80 V 100 A N‑Channel MOSFET – TO‑220 Package

The K100E08N1 is an N‑Channel MOSFET rated for 80 V drain‑source voltage and continuous current up to 100 A, housed in a TO‑220 through‑hole package. Built with trench technology, it features exceptionally low on‑resistance (≤ 3.2 mΩ at V_GS = 10 V) for minimal conduction losses and efficient switching.

At 25 °C and V_GS = 10 V with ID = 50 A, the typical gate threshold voltage is between 2.0–4.0 V; the total gate charge is approximately 130 nC, and input capacitance is about 9000 pF. Typical switching includes reverse recovery time ~93 ns and recovery charge ~190 nC

Thermal dissipation reaches 255 W at case temperature; channel-to-case thermal resistance is 0.49 °C/W. The MOSFET is avalanche-tested for rugged operation and has a maximum junction temperature of 150 °C.

Key Specs

Voltage Rating: 80 V (V_DSS) Continuous Current: 100 A Power Dissipation: 255 W (case) On-Resistance: ≤ 3.2 mΩ @ V_GS = 10 V Gate Threshold Voltage: 2.0–4.0 V Gate Charge (Q_g @ ID=100 A): ~130 nC Input Capacitance (C_iss): ~9000 pF Reverse Recovery Time: ~93 ns Reverse Recovery Charge: ~190 nC Thermal Resistance (ch‑to‑case): ~0.49 °C/W Operating Junction Temp: Up to 150 °C Package: TO‑220, through‑hole Technology: Trench MOSFET Compliance: Avalanche tested, parameter matched variant available from Toshiba (TK100E08N1) and Inchange/DOINGTER
