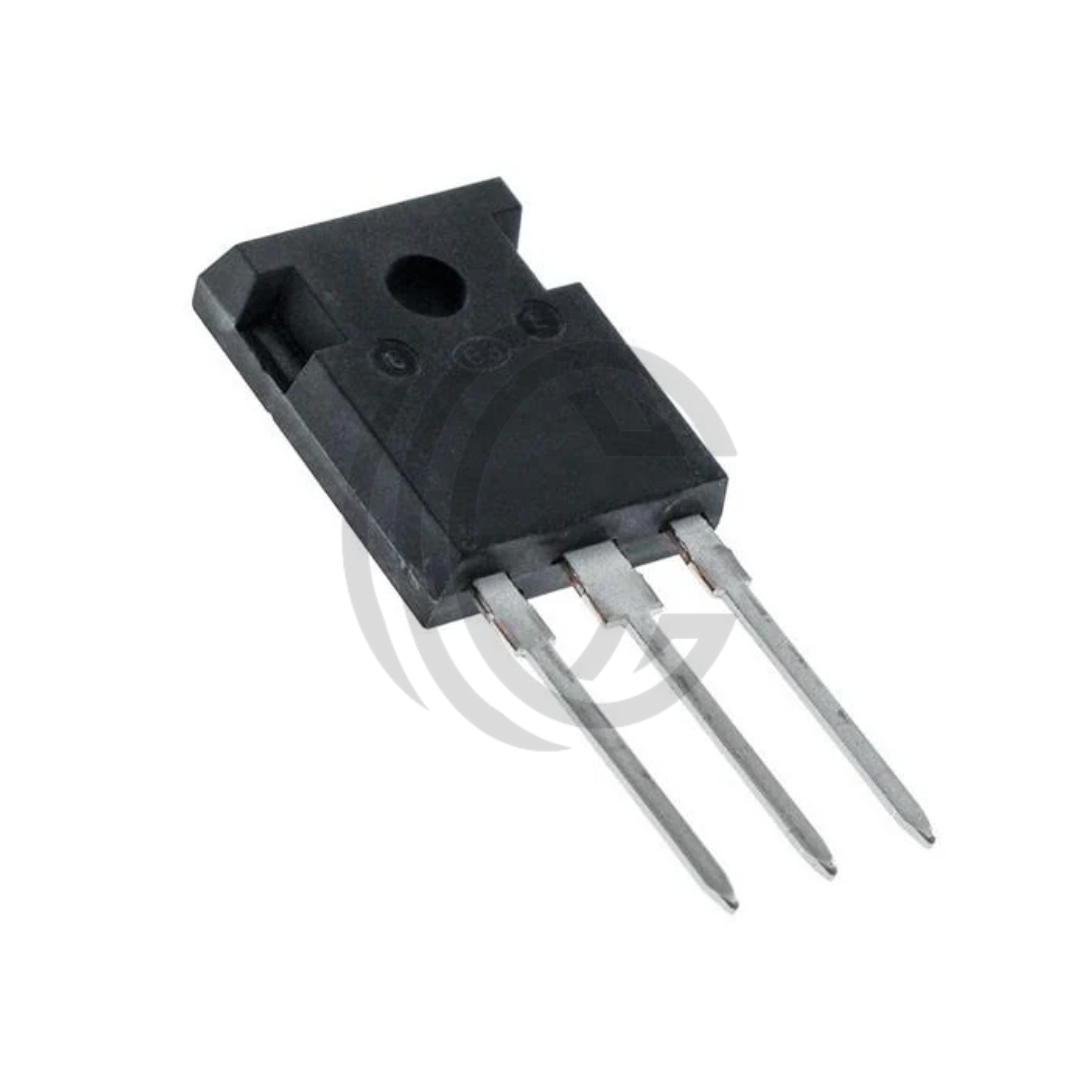

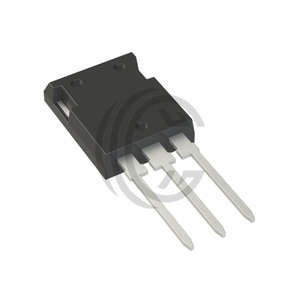

FGY100T65 three-pin electronic transistor component with black casing by The Component Centre

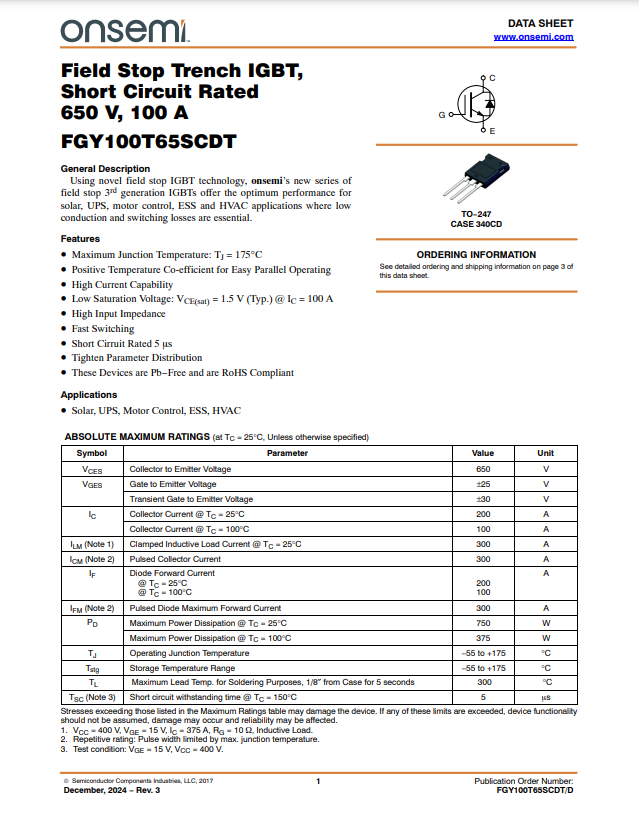

FGY100T65 SCTD Field Stop Trench IGBT 650V 100A electronic component datasheet by The Component Centre
FGY100T65 650V 100A TO-247 IGBT

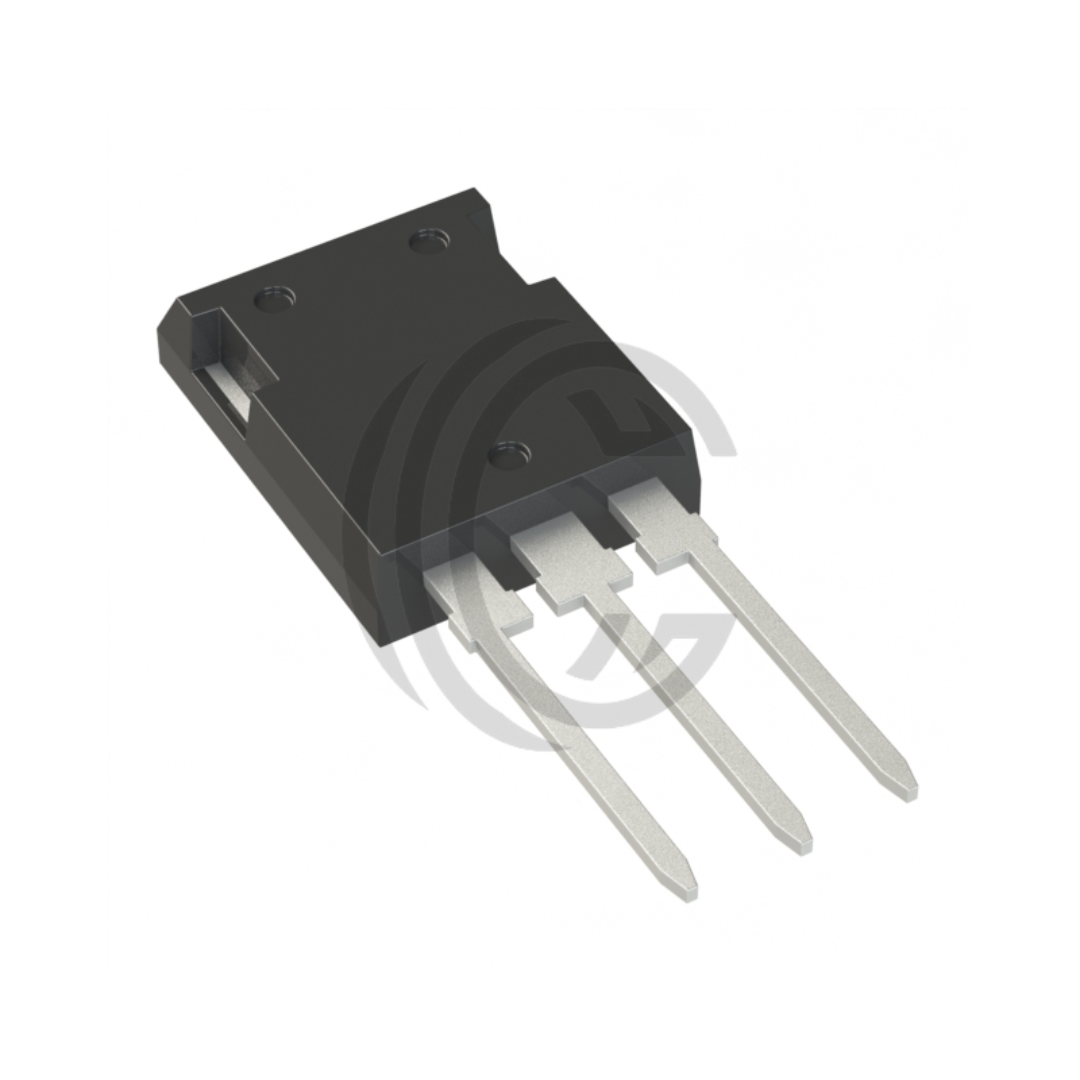

FGY100T65 three-pin electronic transistor component with black casing by The Component Centre
FGY100T65 SCTD Field Stop Trench IGBT 650V 100A electronic component datasheet by The Component Centre

FGY100T65 650V 100A TO-247 IGBT

Sale price Rs.400.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
FGY100T65 650V 100A TO-247 IGBT
This item: FGY100T65 650V 100A TO-247 IGBT
Sale price Rs.400.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,310.00 PKR Sale total price Rs.4,085.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
FGY100T65 650V 100A TO-247 IGBT

FGY100T65 650V 100A TO-247 IGBT

Rs.400.00

FGY100T65 650V 100A Field Stop Trench IGBT – TO-247 Package by ON Semiconductor

The FGY100T65 is a 650V, 100A IGBT built using Field Stop Trench technology, offering low conduction and switching losses with an integrated fast-recovery diode. It is suitable for high-efficiency switching in applications such as solar inverters, motor drives, uninterruptible power supplies, and HVAC systems.

Housed in a TO-247 package, the device supports efficient thermal dissipation and operates reliably in environments up to 175°C. With a typical saturation voltage of approximately 1.5 V at 100 A and a gate charge of 157 nC, it enables fast switching with reduced power loss. The device is capable of withstanding short-circuit conditions up to 5 µs and meets RoHS environmental standards.

Key Specs Voltage Rating: 650 V Current Rating: 100 A Continuous (200 A at 25 °C) Technology: Field Stop Trench IGBT Package: TO-247 V_CE(sat): ~1.5 V typical @ 100 A Gate Charge: 157 nC Switching: Fast turn-on/off with integrated anti-parallel diode Thermal Performance: Junction temperature up to 175 °C Applications: Solar Inverters, Motor Drives, HVAC, UPS, ESS Brand: ON Semiconductor Compliance: RoHS & Pb-Free
