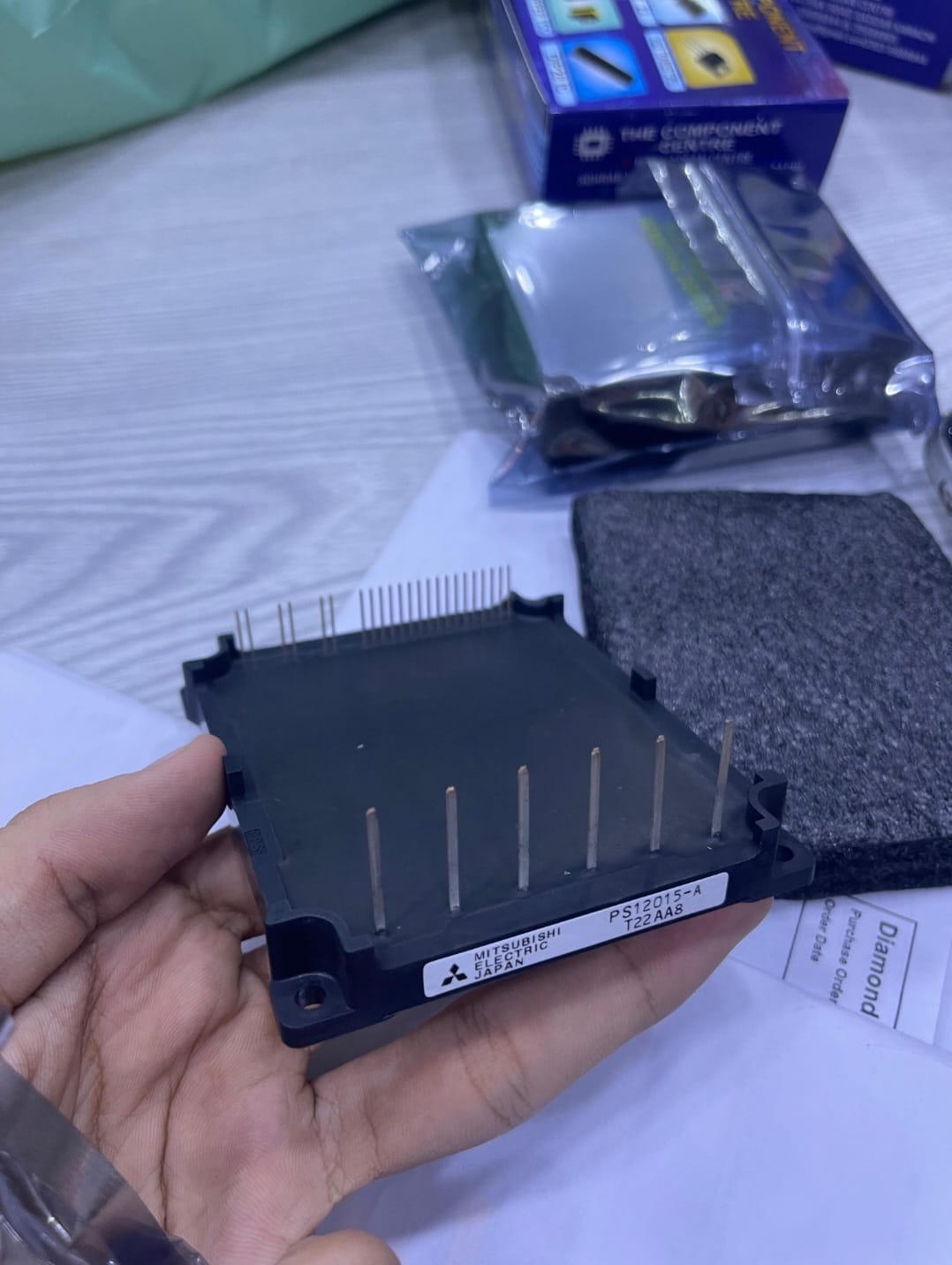

MITSUBISHI PS12015-A 1200V IGBT MODULE
Regular price
Rs.9,500.00
Sale price
Rs.11,000.00
PS12015-A — 3-Phase Intelligent Power Module
The PS12015-A is a flat-base insulated 3-phase application-specific intelligent power module (IPM) with 1200 V IGBT and diode devices. The module’s inverter output capability is specified as 4.8 A (rms) continuous and 7.2 A (rms) at 150% overload for 1 minute, and it is intended for small three-phase inverter systems in the ~1.5 kW / 400 V AC class when used according to the datasheet.
The module includes on-board protections and interfaces: short-circuit protection for P- and N-side IGBTs, under- and over-voltage lockouts, over-temperature protection, three fault outputs (FO1/FO2/FO3), a current-limit warning (CL) output, and a dynamic-braking circuit. Control inputs are 5 V CMOS/TTL (Schmitt-trigger). The module provides analogue phase-current feedback (5 V line) and uses a bootstrap single-drive supply arrangement for the P-side drive.
Electrical and mechanical ratings include an isolation voltage of 2500 Vrms, module case operating temperature –20 °C to +100 °C, storage temperature –40 °C to +125 °C, and a maximum junction rating listed up to +125 °C in the datasheet. Recommended gate/control supplies are VDH = 15 V, VDL = 5 V, VCIN = 5 V, and the mechanical outline uses M3.5 mounting screws. For full pin-out, mechanical drawings, recommended application circuits and complete electrical characteristics, please refer to the Mitsubishi datasheet Mitsubishi — PS12015-A Datasheet (PDF).
Key specs (table)
| Parameter | Value |
|---|---|
| Part number | PS12015-A |
| Type / Topology | 3-Phase Application-Specific Intelligent Power Module (IPM), flat-base insulated |
| Blocking voltage (Vces) | 1200 V |
| Inverter output (Io) | 4.8 A (rms) continuous; 7.2 A (rms) at 150% overload (1 min) |
| IGBT element class | 15 A class (module internal elements) |
| Isolation voltage | 2500 Vrms |
| Module case operating temp | –20 °C to +100 °C |
| Storage temp / Junction temp max | Storage: –40 °C to +125 °C; Junction up to +125 °C |
| Control / PWM input | 5 V CMOS/TTL (Schmitt-trigger) |
| Gate / control supply | VDH = 15 V; VDL = 5 V; VCIN = 5 V |
| Protection & signals | Integrated SC, OV/UV, OT; FO1/FO2/FO3 fault outputs; CL warning; analogue 3φ current feedback |
| Package / mounting | Flat-base insulated module; M3.5 mounting screws; see mechanical drawing in datasheet |
