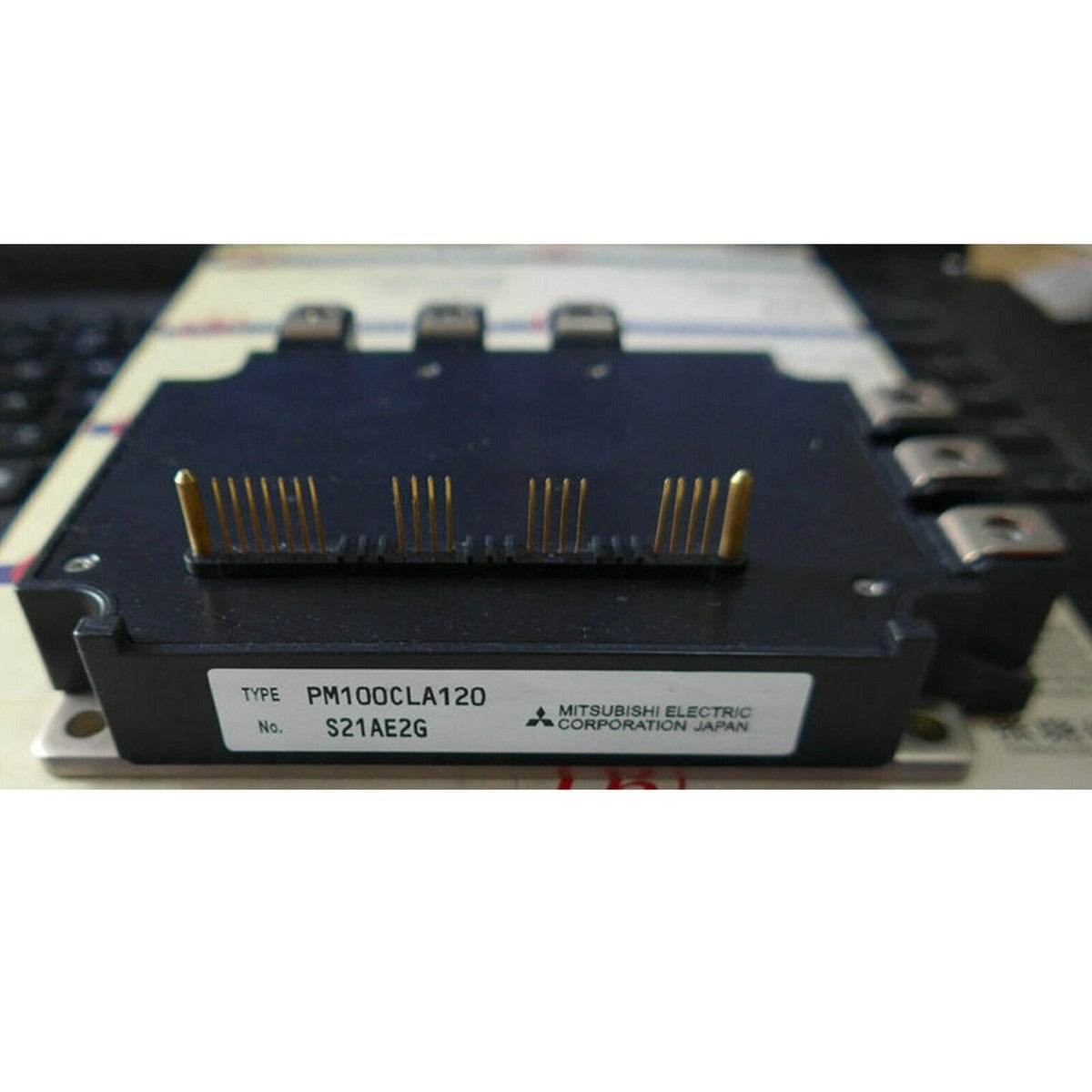

PM100CLA120
The PM100CLA120 is a 3-phase intelligent power module designed for high-efficiency inverter and motor drive systems. It operates with a collector-emitter voltage of 1200 V and a continuous collector current of 100 A, ensuring stable power conversion in industrial and commercial applications. This module integrates insulated-gate bipolar transistors (IGBTs) and gate-drive circuitry within a compact flat-base package, supporting precise and consistent performance in demanding environments.
The module features Mitsubishi’s 5th-generation CSTBT IGBT technology, which reduces conduction losses and improves switching efficiency. It incorporates built-in protection functions such as short-circuit, over-temperature, and under-voltage lockout protection, along with fault-status output. These integrated functions simplify circuit design and improve operational reliability. The PM100CLA120 is suitable for inverter systems, servo control units, and other industrial power electronics where reliable operation and low power loss are required.
With a durable insulated base plate rated for 2500 Vrms isolation and wide junction temperature capability, the PM100CLA120 maintains consistent thermal performance and stable operation over extended use. Its current-sense feature enables better system monitoring and protection control, making it an appropriate choice for continuous-duty and performance-sensitive installations.
Key Specs
| Parameter | Value |
|---|---|
| Part Number | PM100CLA120 |
| Type | 3-Phase IGBT Inverter Module (Current-Sense) |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) | 100 A |
| Peak Collector Current (ICP) | 200 A |
| Collector Dissipation (PC) | 781 W |
| Typical VCE(sat) | 1.9 V @ Tj = 125°C |
| Isolation Voltage (Viso) | 2500 Vrms (60 Hz, 1 min) |
| Junction Temperature Range (Tj) | –20°C to +150°C |
| Built-in Protections | Short-Circuit, Over-Temperature, Under-Voltage, Fault Output |
| Thermal Resistance (Rth j-c) | ≈0.16 °C/W (IGBT, typical) |
| Applications | Inverter Systems, Servo Drives, Motor Control, Power Conversion |
For detailed electrical specifications and mechanical dimensions, refer to the official Mitsubishi Electric datasheet: PM100CLA120 Datasheet (PDF).
