2DI75D-050A

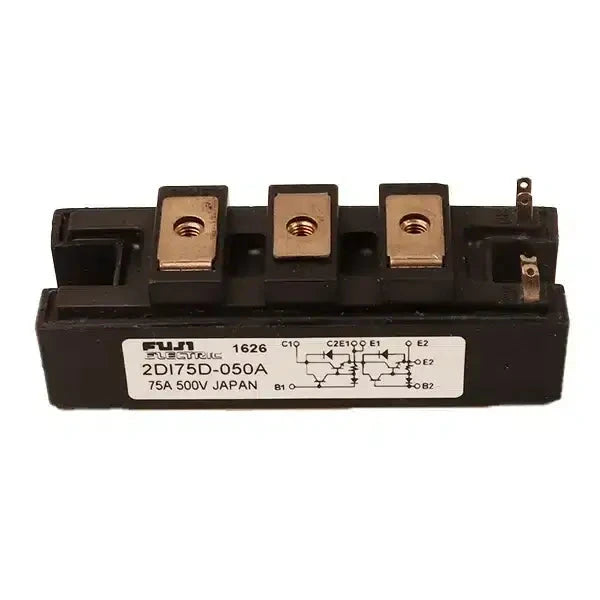

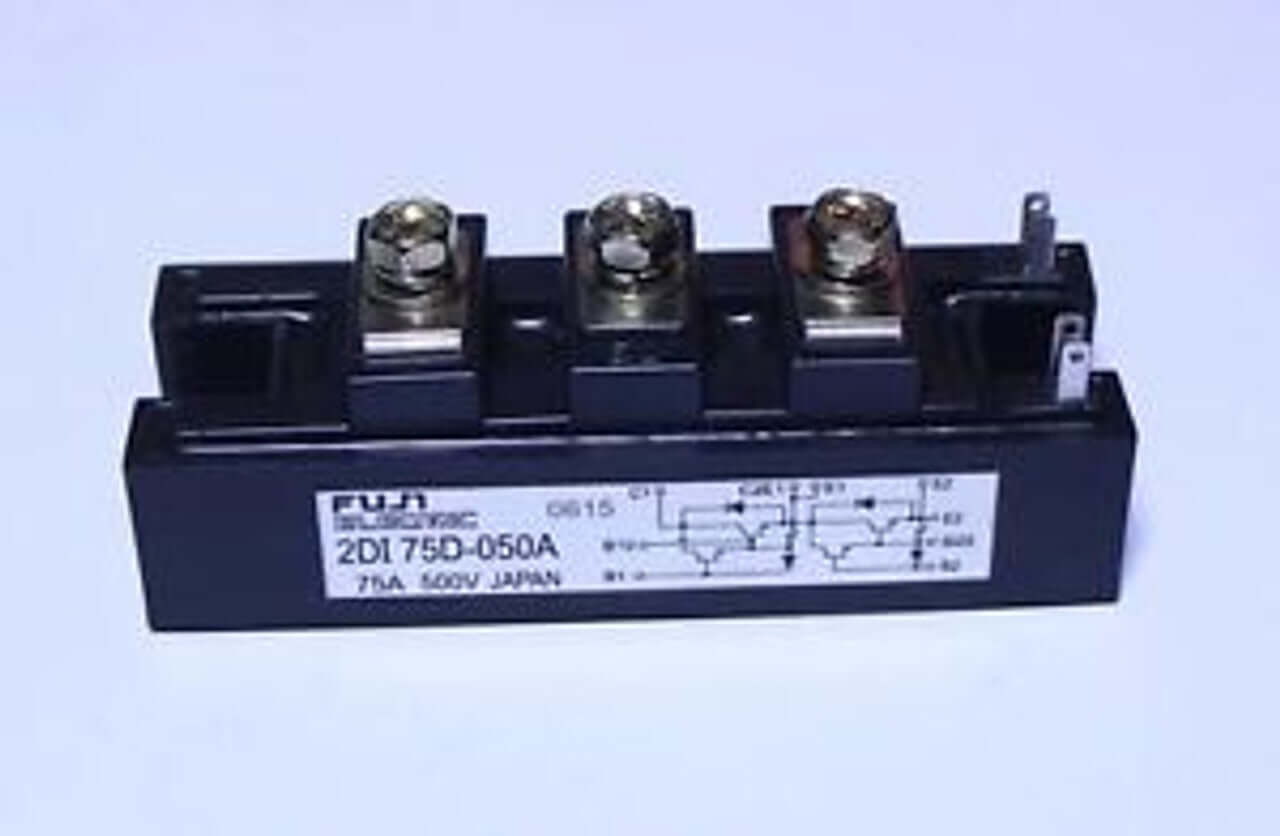

The Fuji Electric 2DI75D-050A is a power transistor module designed for efficient switching in industrial and commercial power electronics applications. With an insulated package, this module delivers consistent performance in demanding environments. Its high DC current gain supports effective operation, while the integrated freewheeling diode provides protection against voltage spikes, making it suitable for motor controls, uninterruptible power supplies (UPS), and other high-power switching systems.
The 2DI75D-050A operates over a wide temperature range, with a maximum junction temperature of 150°C. Its high current handling capability ensures stable operation under continuous load, contributing to system efficiency and reliability.
This module is suitable for various power electronics applications where durability and consistent performance are required. Its design supports efficient energy use and long-term operation.
Key Specs
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (Vce) | 600 V |
| Collector-Base Voltage (Vcb) | 600 V |
| Emitter-Base Voltage (Veb) | 7 V |
| Maximum Collector Current (Ic) | 75 A |
| Maximum Power Dissipation (Pc) | 350 W |
| Insulation Voltage | 2500 V |
| Maximum Junction Temperature (Tj) | 150°C |
| Package Type | M208 |
| Polarity | NPN |
| Integrated Freewheeling Diode | Yes |
For detailed information, refer to the Fuji Electric datasheet: Fuji Electric 2DI75D-050A Datasheet.
