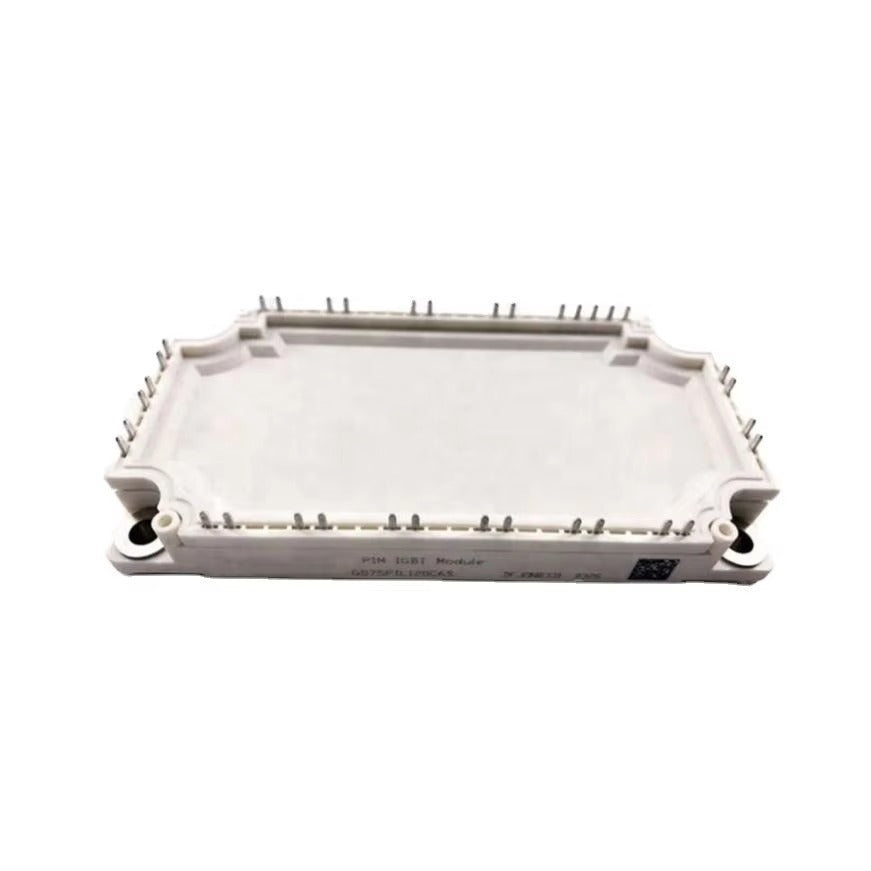

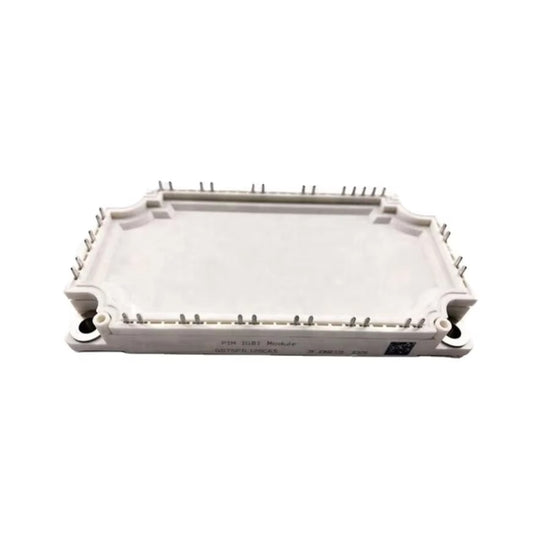

Starpower GD75FFL120C6S IGBT Power Module
The Starpower GD75FFL120C6S is a high-performance power module designed for demanding industrial and commercial power electronics applications. Built using advanced Trench IGBT technology, this module delivers ultra-low conduction losses and superior short-circuit resilience, making it an ideal fit for general inverters, UPS systems, welding machines, and other critical power systems. Its rugged design ensures long-term reliability even under harsh operating conditions.
An outstanding feature of the GD75FFL120C6S is its 10 µs short-circuit capability, allowing it to endure high-current faults without damage. The module also boasts a positive temperature coefficient for V<sub>CE(sat)</sub>, which significantly enhances thermal stability and reduces the risk of thermal runaway. Together, these traits enhance system safety, reduce maintenance needs, and ensure consistent performance over time.
In addition to efficiency and robustness, the GD75FFL120C6S is engineered with a compact "6-in-one" package design. This form factor facilitates streamlined integration into power conversion systems while maintaining high electrical and thermal integrity.
Key Specifications
| Specification | Value |
|---|---|
| Voltage Rating | 1200 V |
| Current Rating | 75 A |
| IGBT Technology | Low V<sub>CE(sat)</sub> Trench IGBT |
| Short-Circuit Capability | 10 µs short-circuit tolerance |
| Thermal Stability | V<sub>CE(sat)</sub> with positive temperature coefficient |
| Package Type | "6-in-one" modular package |
| Target Applications | Inverters, UPS systems, welding machinery |
