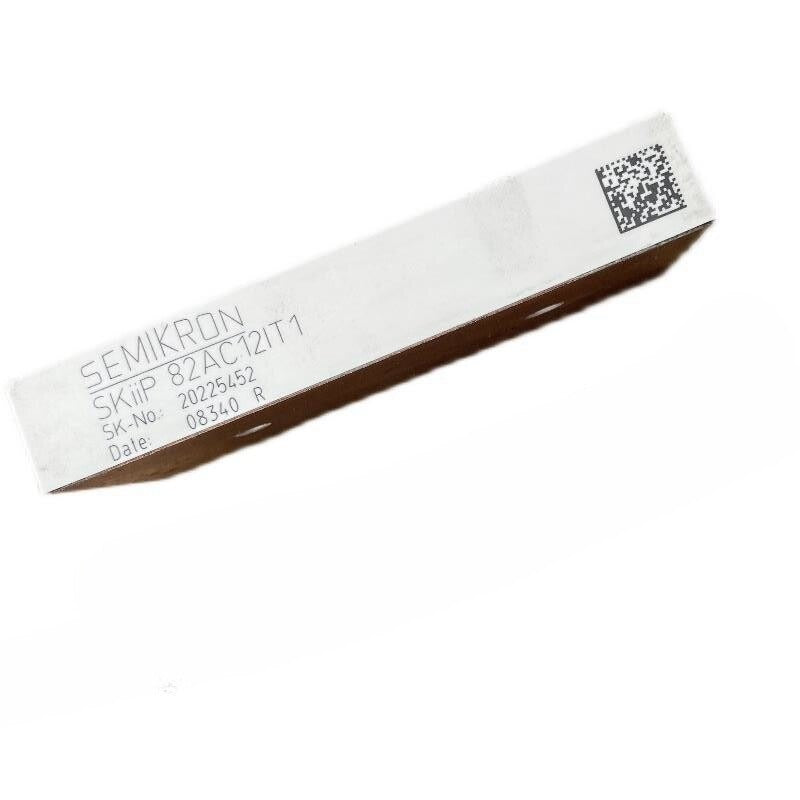

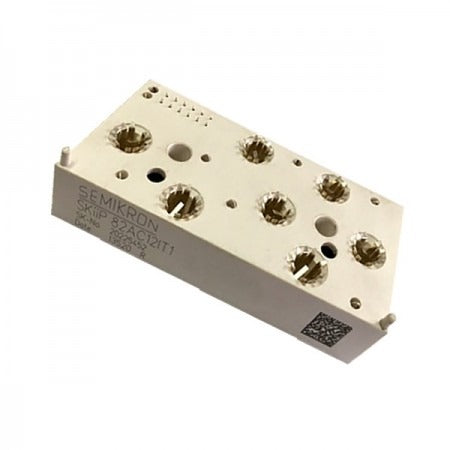

SKiiP 82AC12IT1 IGBT Module: High-Performance Power Electronics Solution
The SKiiP 82AC12IT1 is a compact and efficient IGBT module designed for demanding industrial and commercial power electronics applications. With its high voltage and current ratings, it delivers reliable performance in systems requiring robust power conversion.
The module supports a collector-emitter voltage (VCES) of 1200V and a collector current (IC) of up to 90A, making it suitable for high-power applications. Equipped with three integrated compensated current sensors, the SKiiP 82AC12IT1 provides accurate current measurement, enhancing system control and protection. Its low thermal impedance, achieved through durable ceramic insulation, ensures efficient heat dissipation and reliable operation under high thermal loads. Additionally, pressure contact technology allows simple connection to DCB (Direct Copper Bonding) substrates without soldering, increasing power cycling capability. The module's compact design allows for easy integration into systems with limited space.
The SKiiP 82AC12IT1 is widely used in applications such as inverters for motor drives, AC and DC servo drive amplifiers, and uninterruptible power supplies (UPS), providing consistent and efficient power conversion. Its combination of performance, durability, and compactness makes it suitable for industrial and commercial systems where reliability is critical.
Key Specifications
| Specification | Value |
|---|---|
| Module Type | IGBT Module |
| Collector-Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) | 90A |
| Collector Power Dissipation (PC) | 1500W |
| Operating Junction Temperature (Tj) | +150°C |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Mounting Type | Screw Mount |
| Housing Material | Aluminum Oxide Ceramic |
For more detailed information, please refer to the Semikron datasheet.
