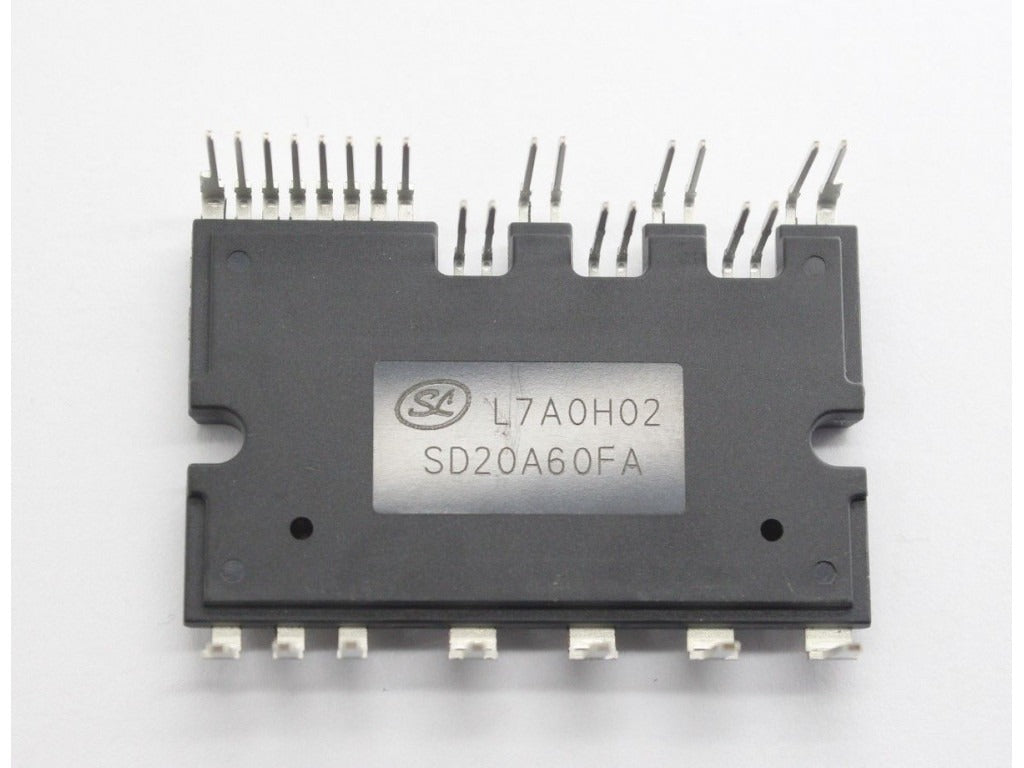

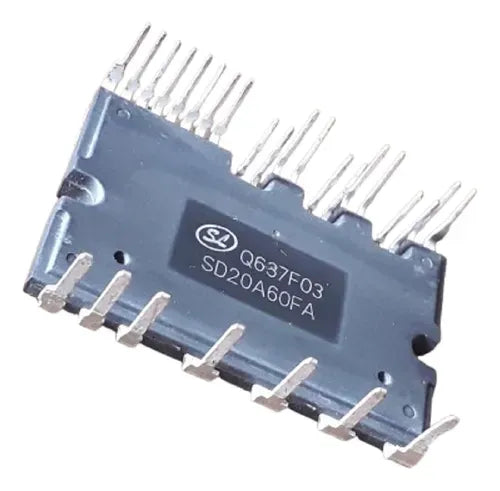

SD20A60FA Intelligent Power Module
The SD20A60FA is an Intelligent Power Module (IPM) from Hangzhou Silan Microelectronics, designed for motor control applications. It provides a voltage rating of 600V and a current rating of 20A. The module integrates Insulated Gate Bipolar Transistors (IGBTs) and Fast Recovery Diodes (FRDs) for efficient power conversion and stable operation in industrial and commercial systems.
The module features an insulated metal baseplate and a DIP-27H package for effective heat dissipation and mechanical stability. Optically isolated gate drive signals improve noise immunity, making it suitable for environments with electromagnetic interference. Built-in protection functions include overcurrent protection, overtemperature protection, fault feedback, and under-voltage lockout (UVLO).
The SD20A60FA is used in air conditioning systems, industrial motor drives, and inverter-based systems. Its compact design and protection features support reliable operation in motor control applications.
For more detailed information, please refer to the SD20A60FA datasheet.
Key Specifications
| Feature | Specification |
|---|---|
| Voltage Rating | 600V |
| Current Rating | 20A |
| Integrated Components | IGBT, FRD |
| Package Type | DIP-27H |
| Baseplate Type | Insulated Metal |
| Gate Drive Interface | Optically Isolated |
| Protection Features | Overcurrent, Overtemperature, Fault Feedback, UVLO |
| Application Areas | Motor Control, Inverter Systems, Air Conditioning |
