PS11034

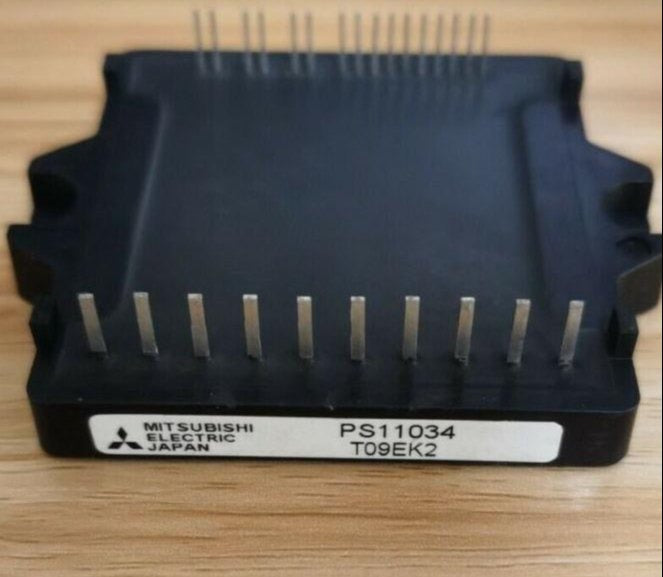

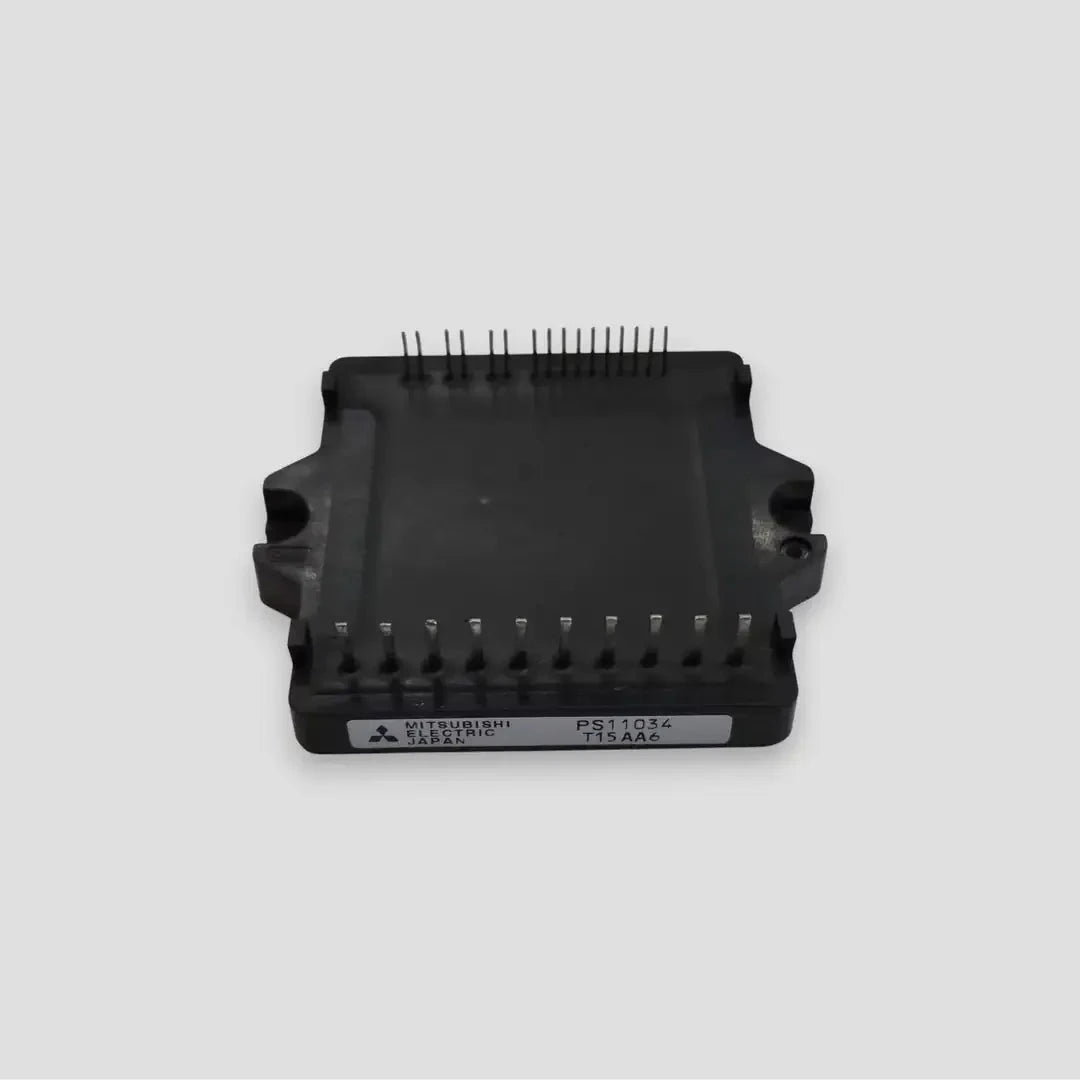

The Mitsubishi Electric PS11034 Intelligent Power Module (IPM) is a state-of-the-art component engineered for high-efficiency power conversion in industrial and commercial applications. Designed with a 3-phase AC-to-DC converter bridge and a 3-phase IGBT inverter bridge, the PS11034 utilizes the latest 3rd generation IGBT and diode technology. This integration ensures efficient power conversion and motor control, making it an ideal choice for applications such as acoustic noise-less 0.75kW/200V AC Class 3 phase inverters, motor control systems, and compact inverter packages with built-in motors.
The PS11034 stands out for its exceptional efficiency and durability. With an inverter output current capability of 5.0Arms at 100% load and 7.5Arms at 150% load for 60 seconds, it delivers robust performance under varying operational conditions. The module's integrated drive, protection, and system control functions enhance its reliability, ensuring stable operation even in demanding environments. Its compact design and high isolation voltage rating of 2500VDC make it suitable for industrial and commercial use, where space constraints and high-performance requirements are prevalent.
For more detailed information, please refer to the PS11034 datasheet.
| Specification | Value |
|---|---|
| Type | Intelligent Power Module |
| Configuration | 3-Phase Inverter Bridge |
| Voltage Rating | 600V |
| Current Rating | 15A |
| Isolation Voltage | 2500VDC |
| Package Type | 30-PowerDIP Module |
| Mounting Type | Through Hole |
| Motor Rating | 0.75 kW / 200V AC |
| Inverter Output Current | 5.0Arms (100%) / 7.5Arms (150%) |
| Fault Output Signals | SC, OC, UV |
| Input Interface | 5V CMOS/TTL compatible |
| Protection Features | Under-voltage, Over-current |
| Application | Motor Control, Inverters |
