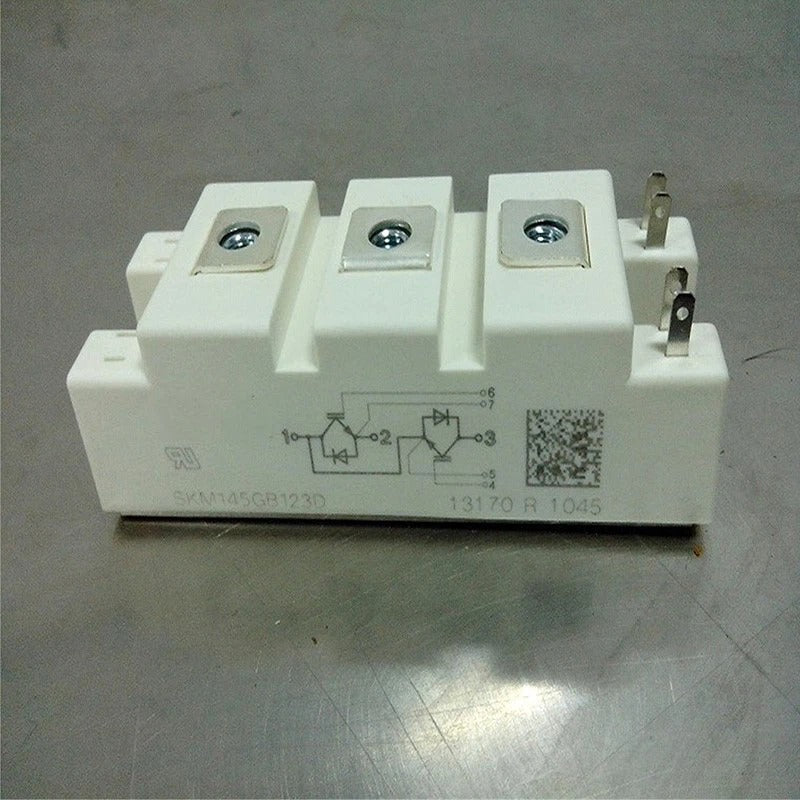

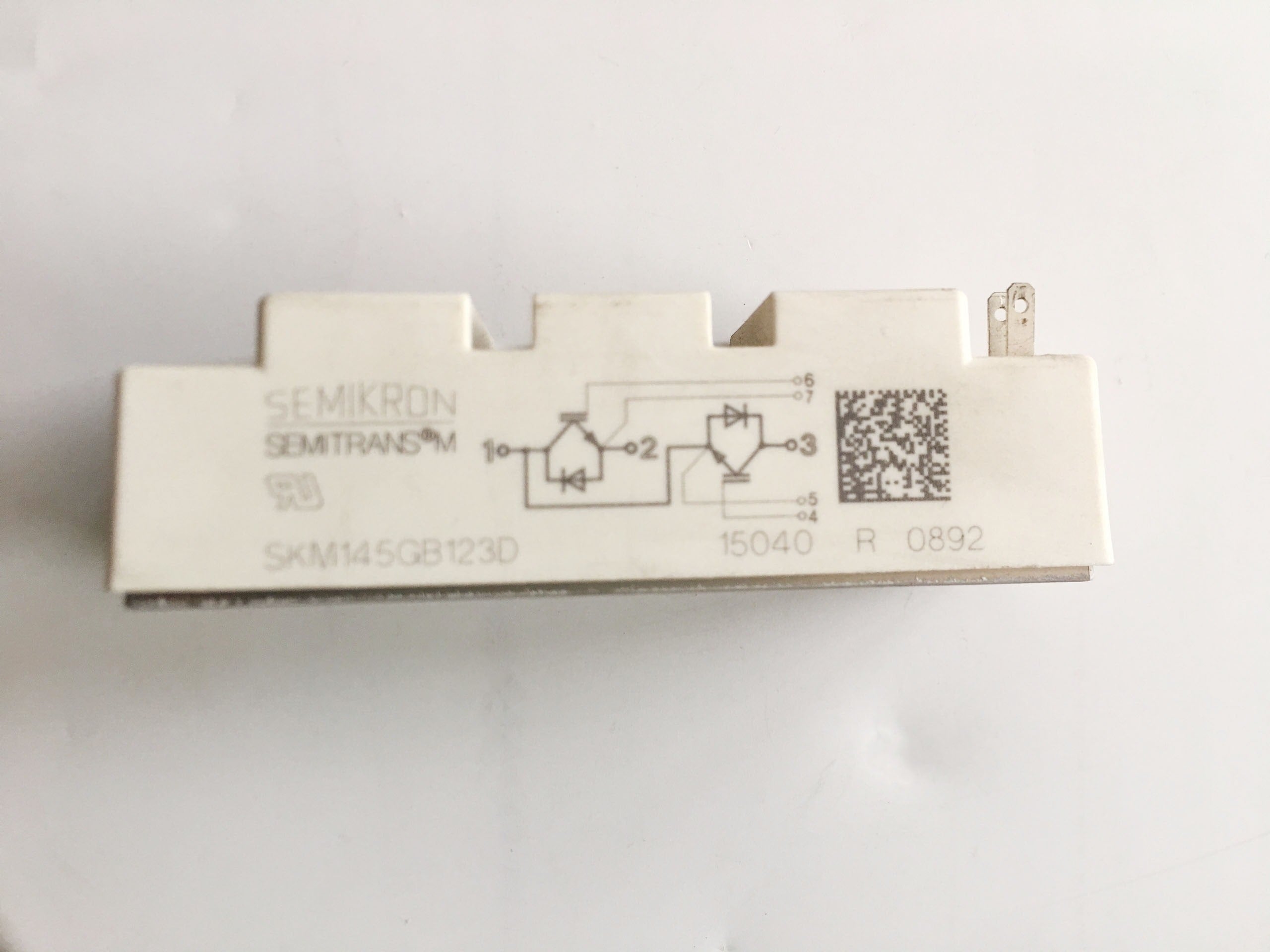

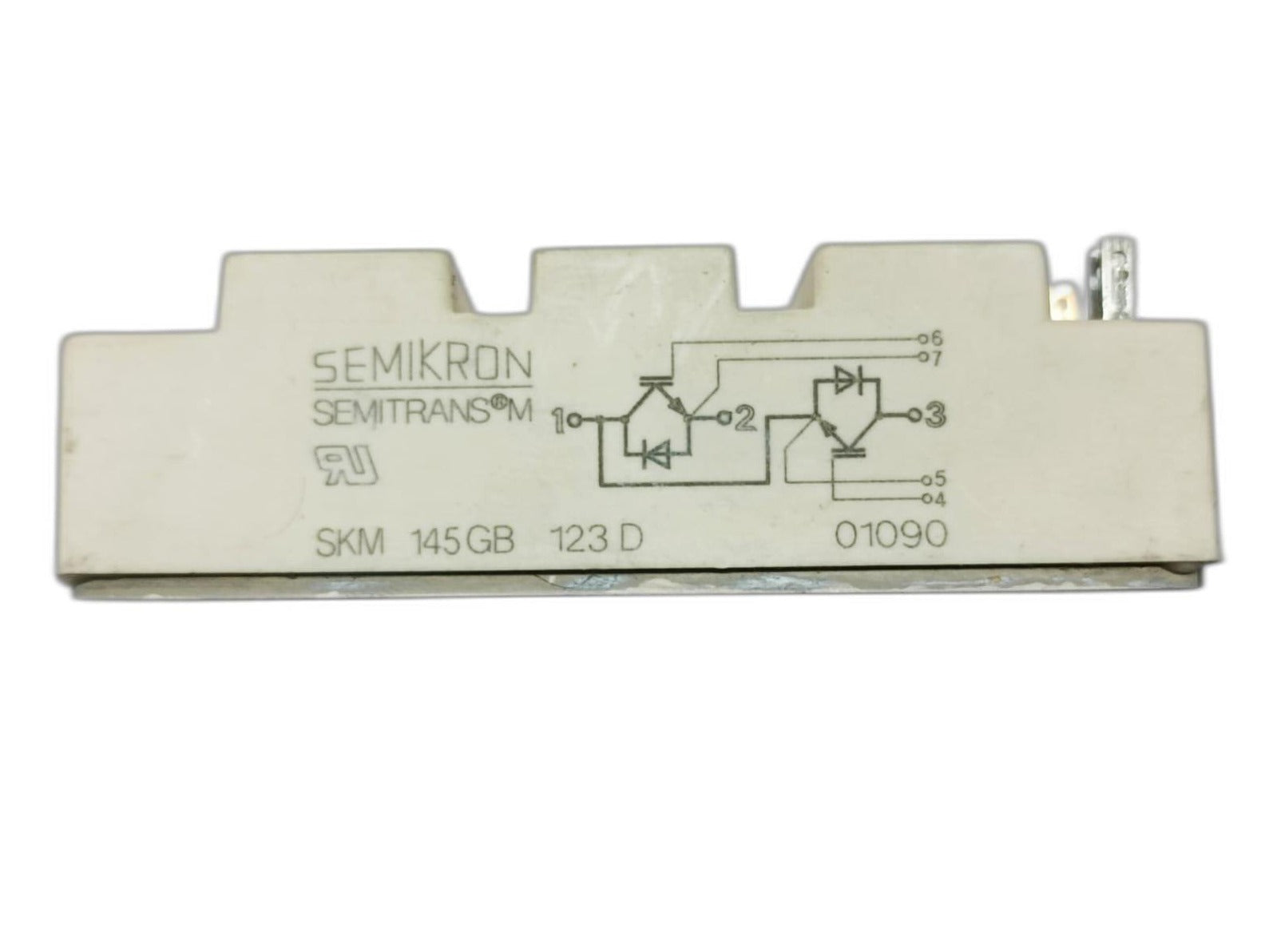

SKM145GB123D IGBT Module
The Semikron SKM145GB123D is a high-performance IGBT (Insulated Gate Bipolar Transistor) module engineered for demanding power electronics applications. With a collector-emitter voltage rating of 1200V and a continuous collector current of 145A, it delivers exceptional efficiency and reliability. This module is housed in the SEMITRANS 3 package, known for its robust construction, ensuring durability and optimal heat dissipation, which is crucial for industrial and commercial environments.
Designed for high-speed switching, the SKM145GB123D is ideal for use in motor drives, industrial inverters, power supplies, and renewable energy systems. Its low conduction and switching losses contribute to energy savings and reduced thermal stress, enhancing system longevity. The module's gate-emitter voltage is designed to handle transient conditions, providing stability and protection against voltage spikes.
Incorporating advanced semiconductor technology, the SKM145GB123D ensures consistent performance under varying load conditions. Its high surge current capability and low thermal resistance make it suitable for applications requiring high power density and reliability. Whether for industrial automation or commercial power systems, this module offers a perfect balance of performance, efficiency, and durability.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (Vce) | 1200V |
| Continuous Collector Current (Ic) | 145A |
| Peak Collector Current (Icp) | 300A |
| Gate-Emitter Voltage (Vge) | ±20V |
| Isolation Voltage | 1500V |
| Package Type | SEMITRANS 3 |
| Switching Frequency | Up to 20kHz |
| Thermal Resistance (junction to case) | 0.5°C/W |
| Operating Temperature Range | -40°C to +125°C |
For more detailed information, please refer to the Semikron datasheet.
