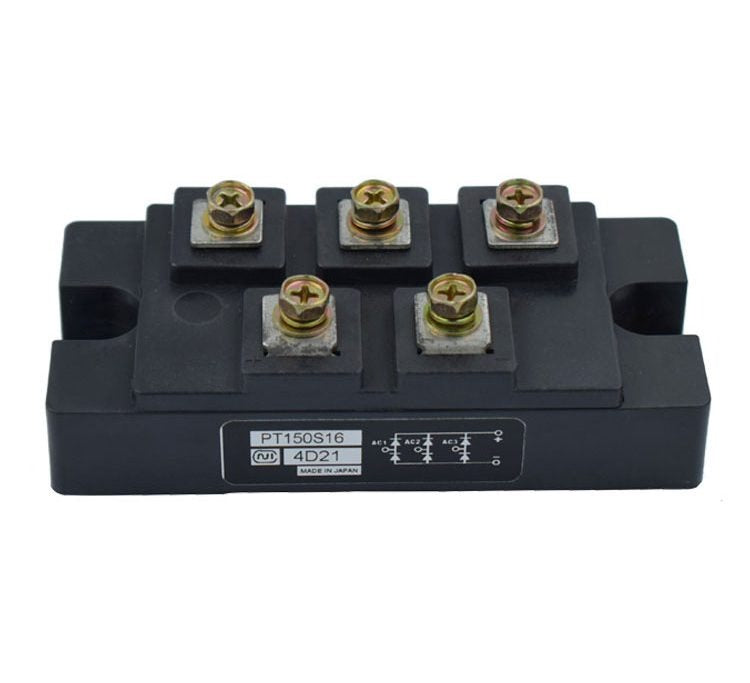

PT150S16A High-Power Diode Module
The PT150S16A is a power diode module designed for industrial and commercial power electronics. It offers stable performance with high current capacity and reliable thermal operation, making it suitable for continuous use in demanding environments.
The module supports a blocking voltage range of up to 1600 V and an average output current of 150 A. Its flange-mount package allows straightforward installation and replacement, which helps in reducing downtime in systems such as rectifiers, motor drives, UPS units, and welding equipment.
The PT150S16A is commonly used in applications including renewable energy systems, industrial power supplies, and motor control. For detailed electrical and mechanical specifications, please refer to the official NIEC datasheet.
Key Specs
| Specification | Value |
|---|---|
| Part Number | PT150S16A |
| Device Type | Power Diode Module |
| Average Output Current | 150 A |
| Voltage Rating | 1200 V / 1600 V |
| Configuration | 3-Phase Bridge / 6 Elements |
| Package / Mounting | Flange-Mount Module |
| Operating Temperature | −40 °C to +125 °C |
| Applications | Rectifiers, Motor Drives, UPS, Welders, Industrial Power Supplies |
